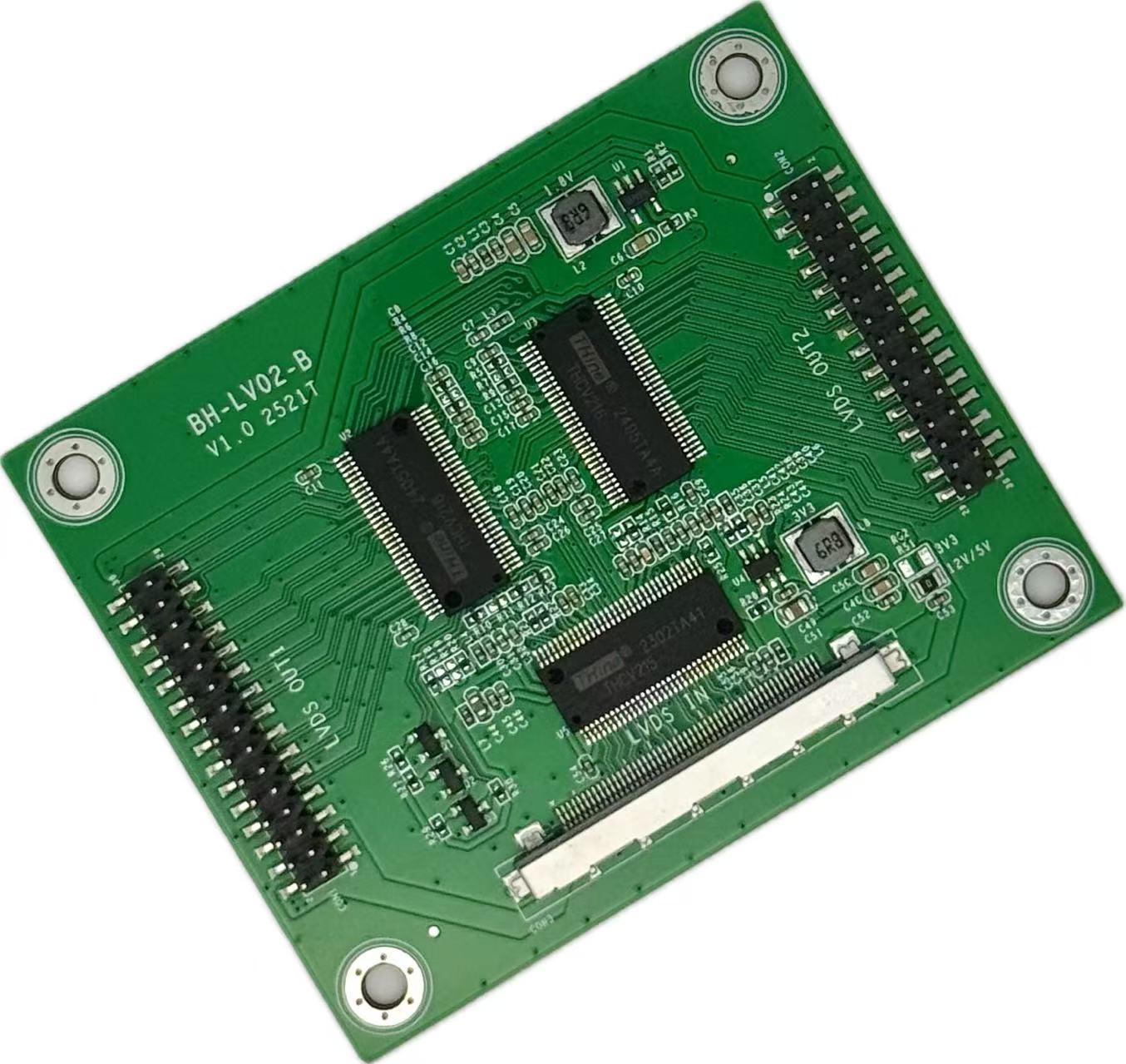

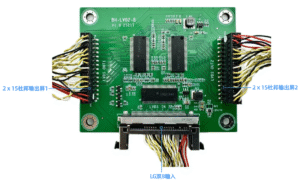

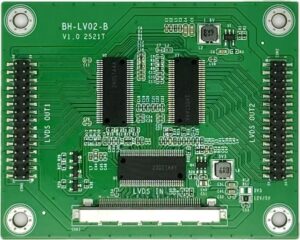

BH-LV02-B

Parameter	Describe
Panel Type	LVDS 1920x1080
LVDS input format	JEIDA/VESA
low latency	＜0.2mS
low power consumption	＜1.8W
Screen TCON power supply	12V/5V (motherboard direct connection) or 3.3V (DC-DC conversion)

BH-LV2H

BH-LV2H is a V-By-One and LVDS signal test board. It supports 8-channel V-by-One UHD 4K (3840×2160) signal input, as well as LVDS HD signal input with 2-port LVDS FHD (1920×1080) signal input, and then converts these signals into HDMI output.

BH-6M80R

BH-6M80R is a 4K screen cable extender, designed for extending 4K V-by-One signals. It is suitable for applications requiring ultra-long V-by-One screen cables, such as electronic blackboards, and features strong signal compatibility.

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

PS-6M38-A

The PS-6M38-A is a 2K-4K signal adapter board (1920*1080@60Hz→3840*2160Hz@60Hz conversion). It provides a standard Full-HD LVDS input interface (LG definition). After scaler image amplification and MEMC image processing, it generates a 4K ultra-high-definition V-by-One model and directly drives 4K@60Hz panels. The output supports 0 (single) and 2-zone 4K V-by-One signal formats.

BH-4KVH-B

The BH-4KVH-B is a 4K V-By-One to HDMI signal converter board that supports 8 lane V-by-One input, drives 8 lane V-By-One 4K 60Hz large-size panels through V-By-One bridging, and simultaneously outputs HDMI signals.
