BH-LE02

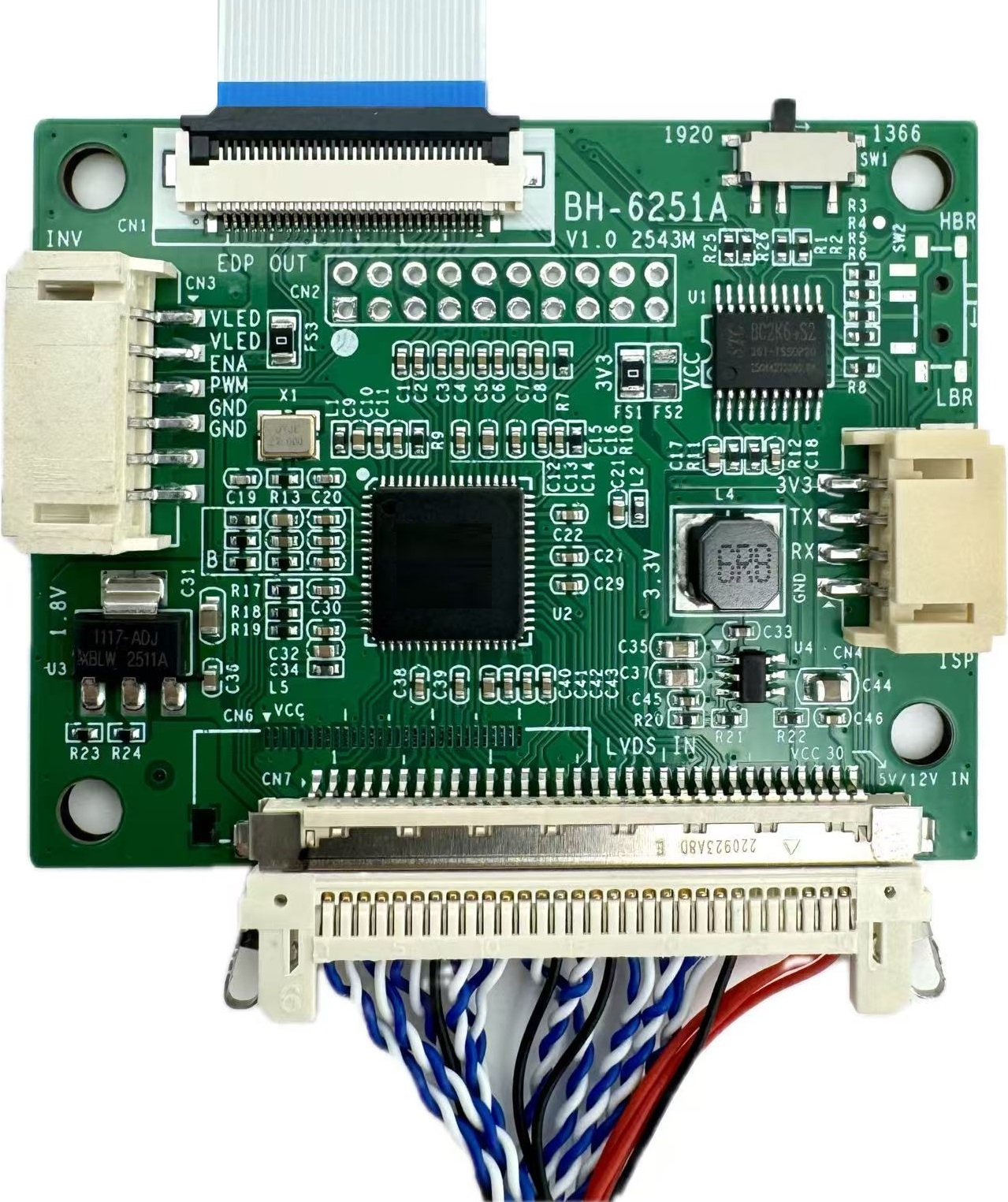

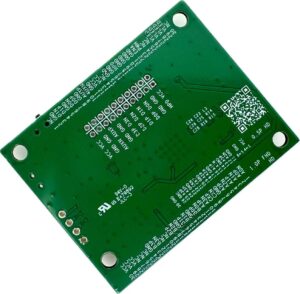

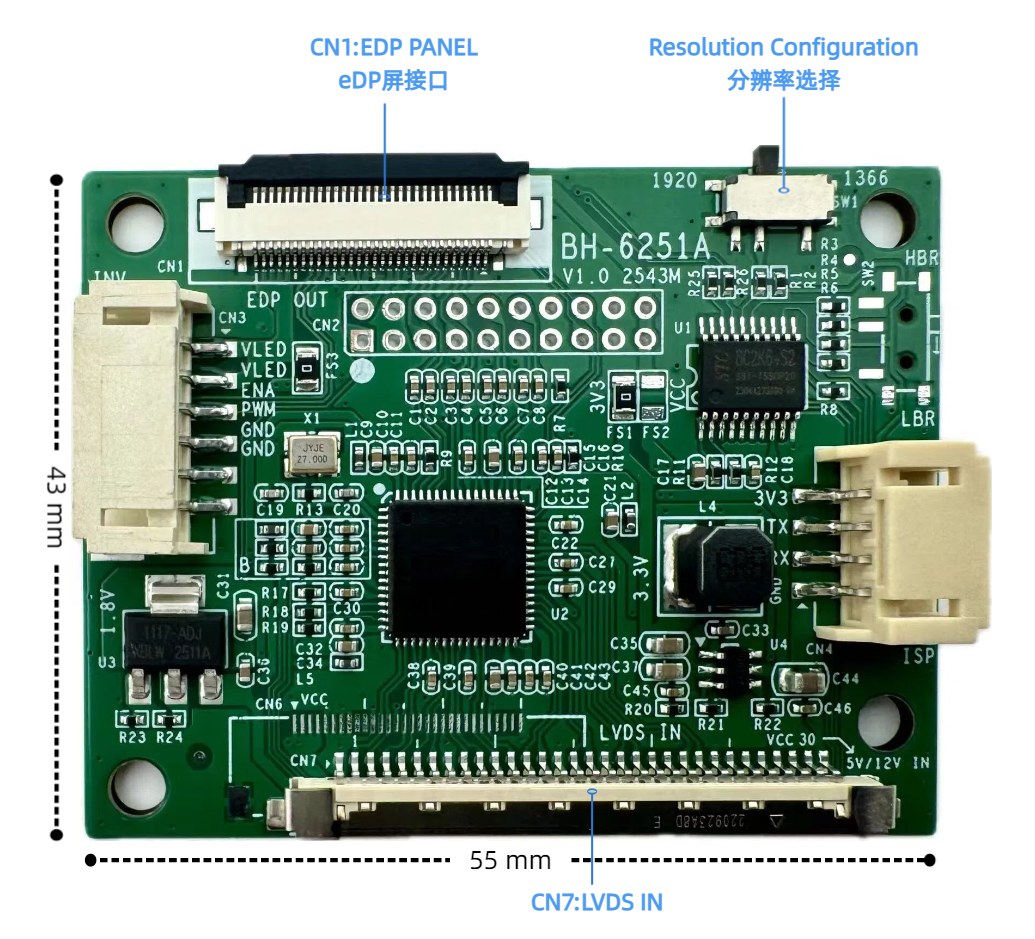

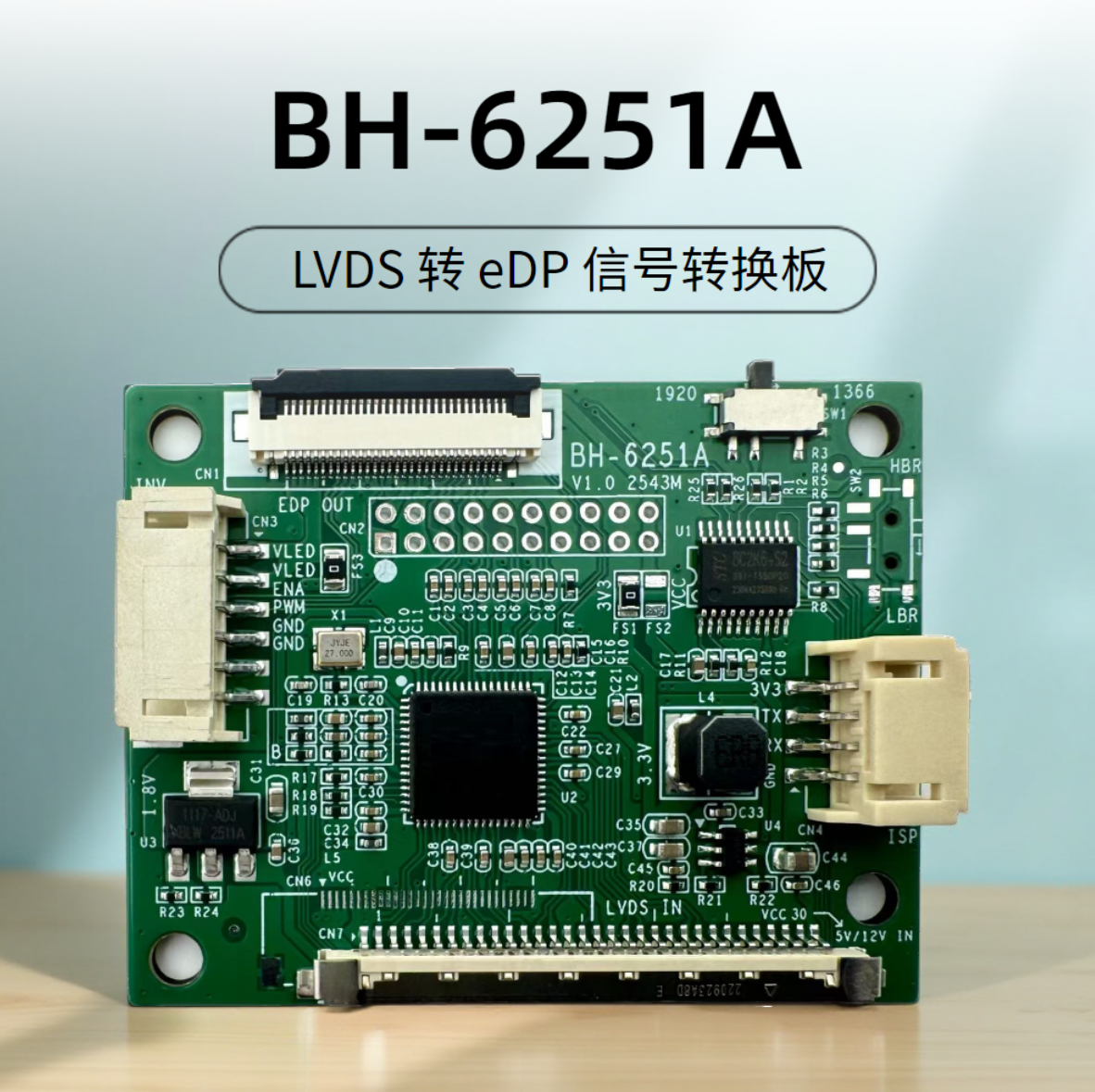

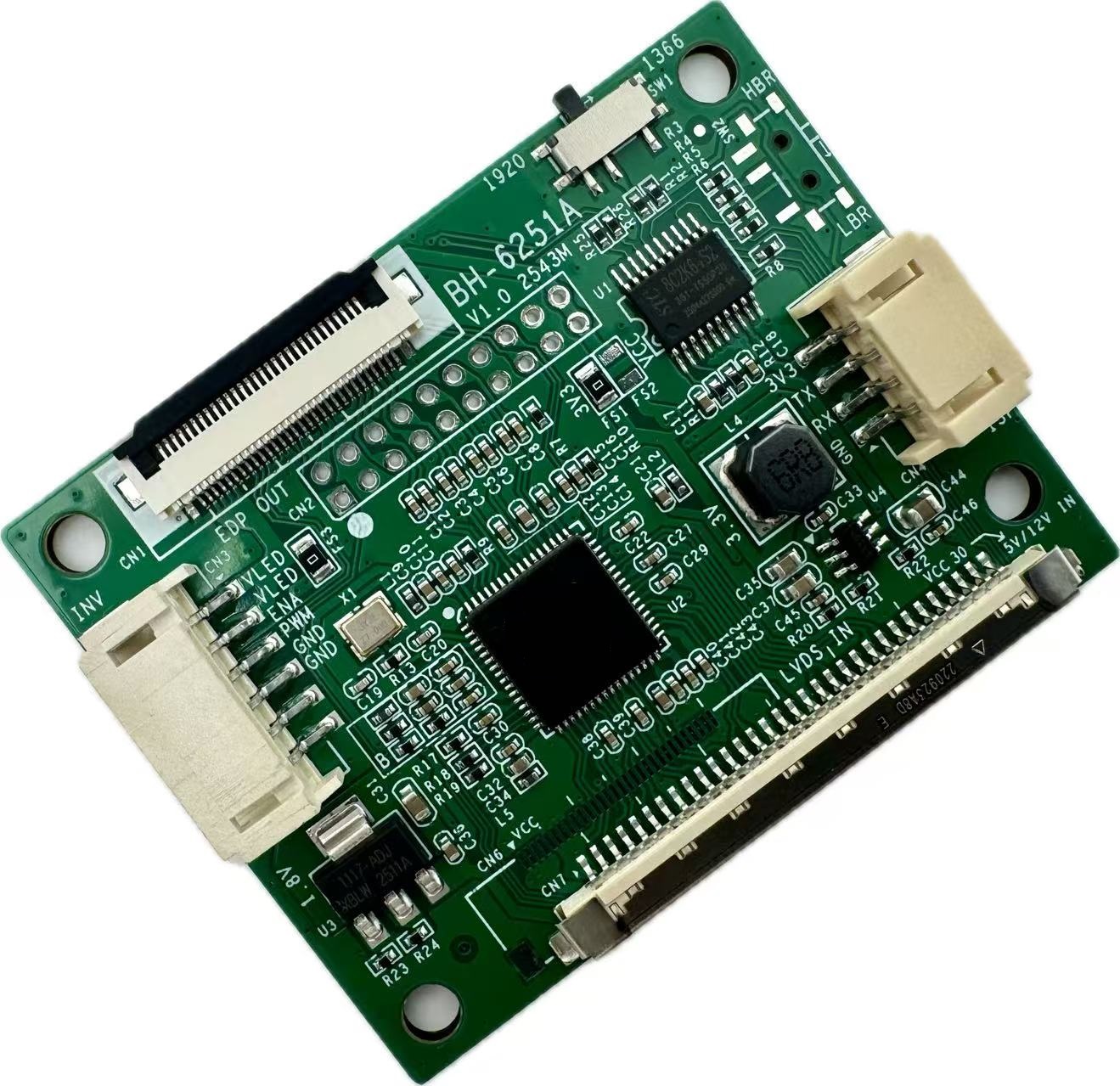

BH-LE02 is an LVDS to dual eDP adapter board. It supports 1366×768 and 1920×1080 resolutions with automatic resolution detection and adaptation, and features eDP HBR support.

ENQUIRY!
ParameterDescribe
Main chipIT6251
COLOR DEPTH8bit

Panel resolution		1366x768 EDP HBR 1 lane/ LBR 2 lane

1920x1080 EDP HBR 2 lane
POWER REQUIREMENT12V/5V; Default 12V
Power consumption≤2W
