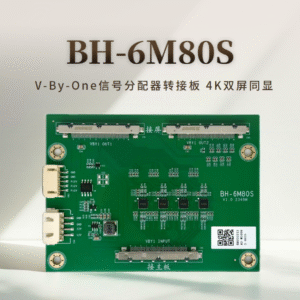

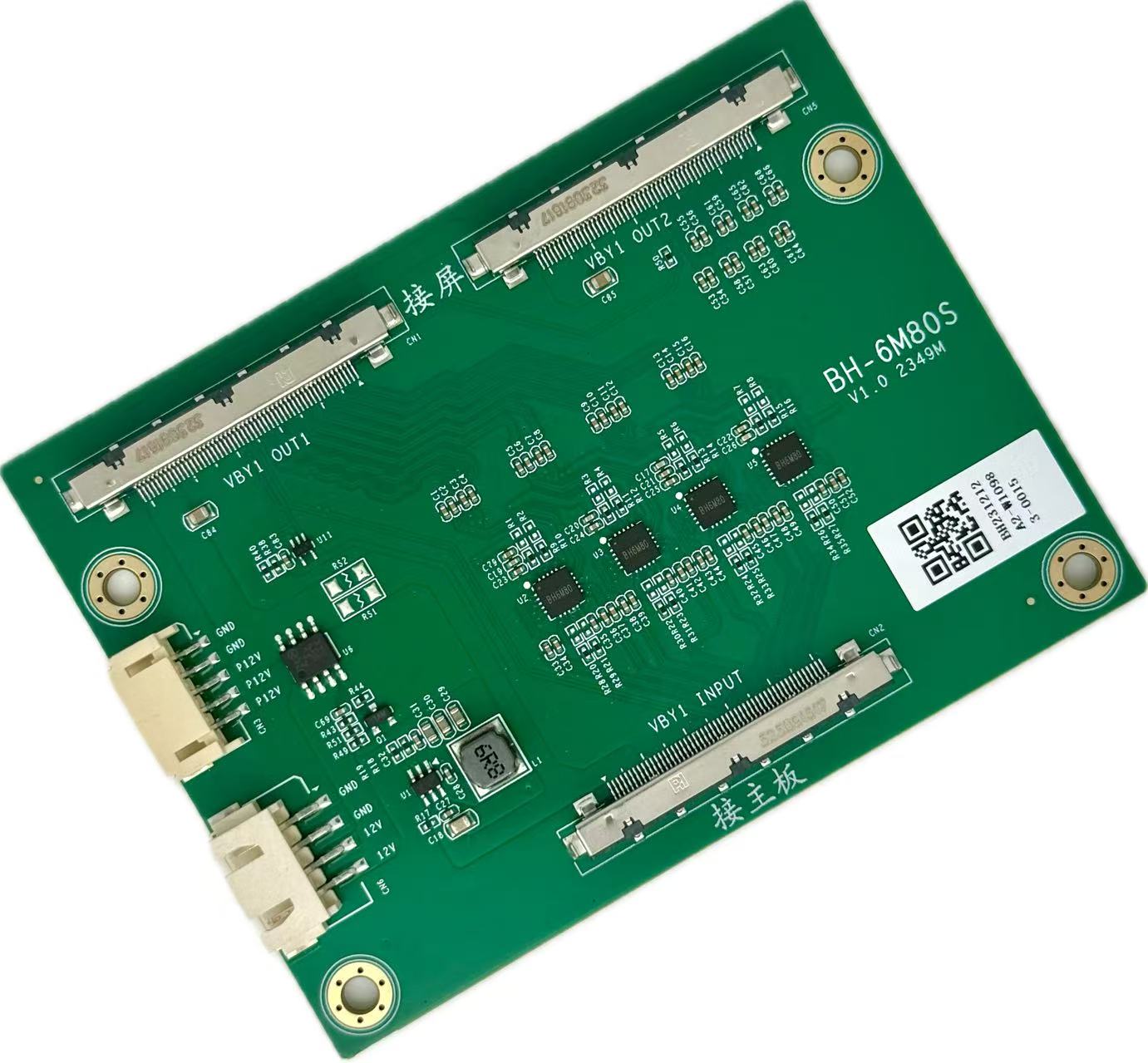

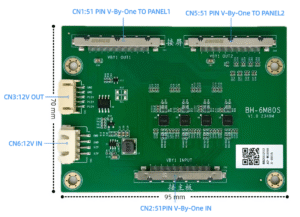

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

ENQUIRY!

Description

Parameter	Describe
Main chip	BH6M80
Panel Type	V-by-one 3840x2160
input Cable	Recommended length ≤ 0.6 meters
output Cable	High frequency FFC single shielding up to 1.8 meters
low latency	＜0.2mS
low power consumption	＜1.8W
Electrostatic protection	HBM:10,000 V

RELATED PRODUCTS

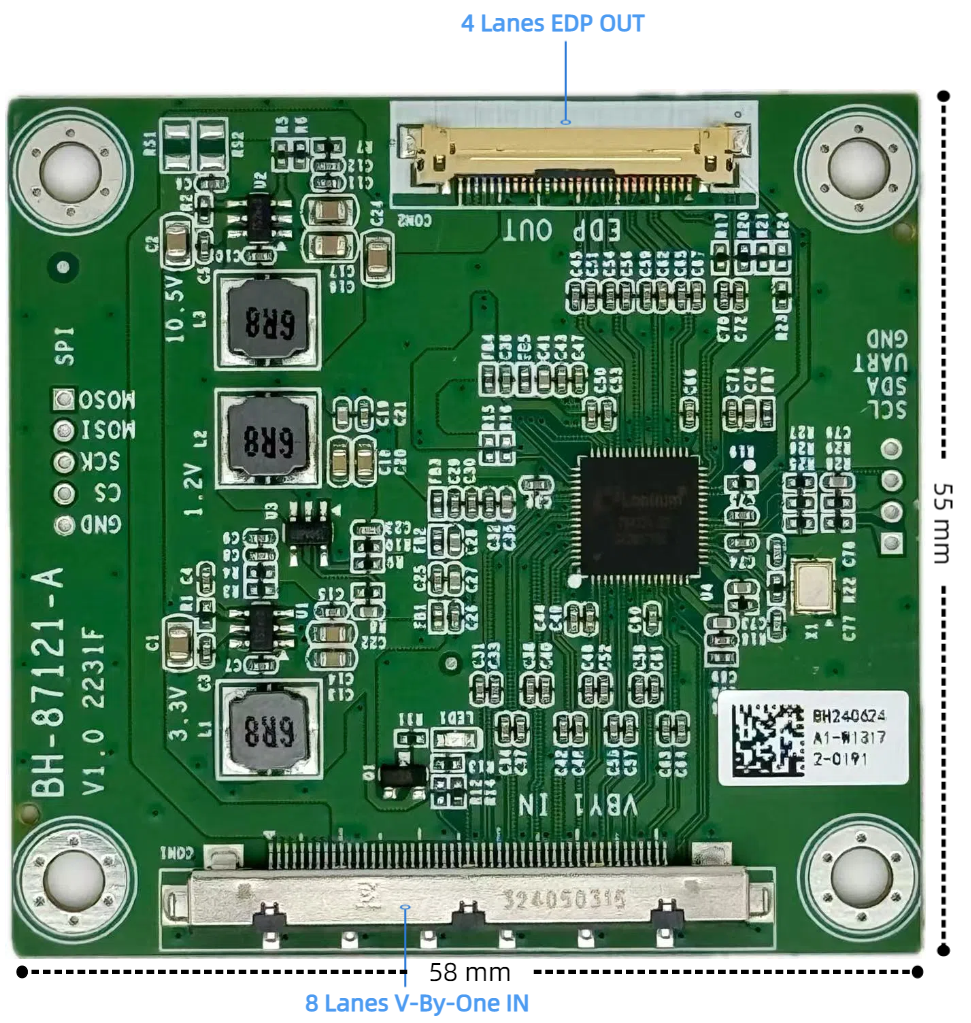

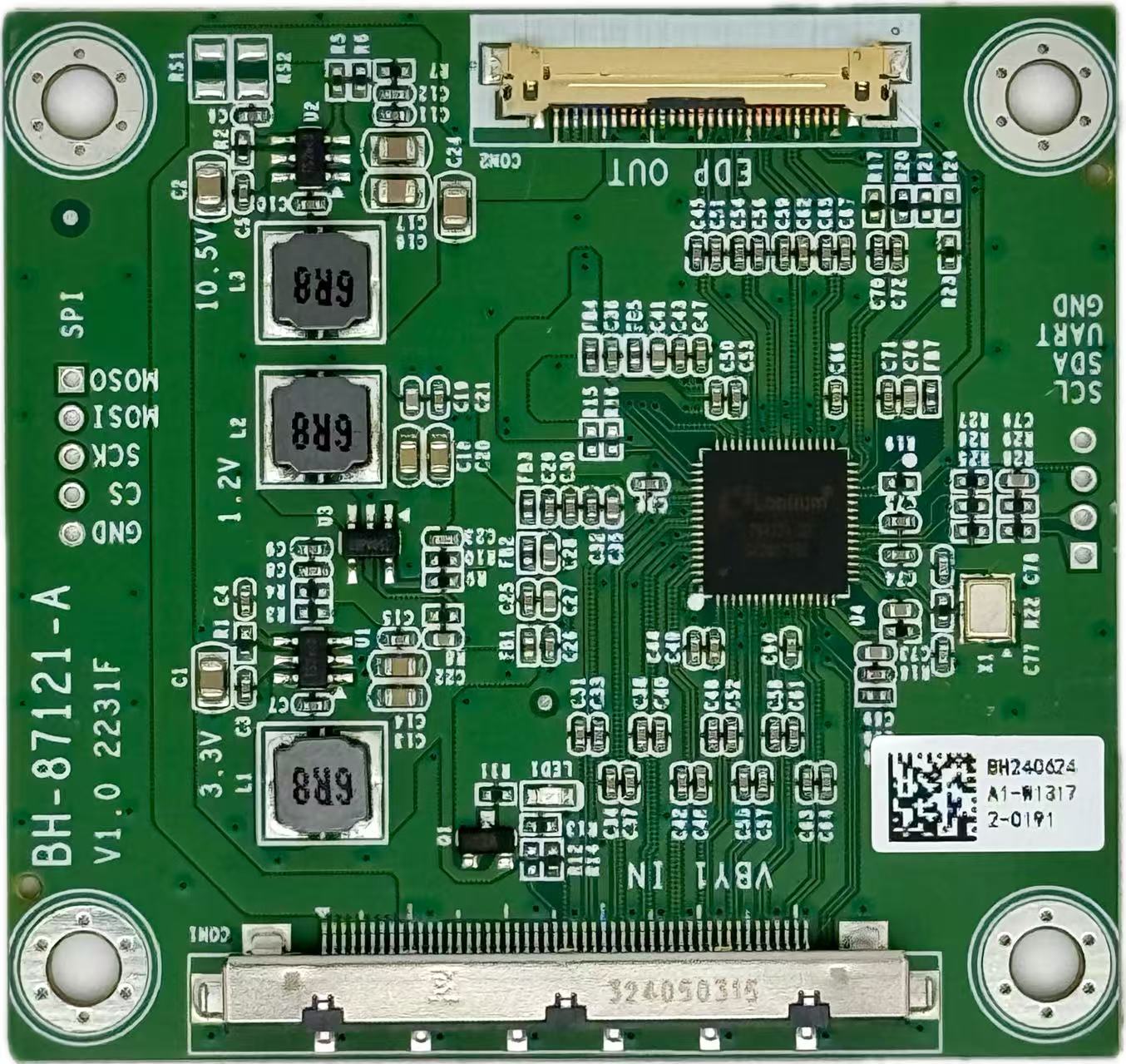

BH-87121-A

BH-87121-A is an 8-Lane V-By-One to 4-Lane eDP signal conversion board. It supports driving various models of 4-Lane eDP screens, such as BOE's MV270QUM-N10.

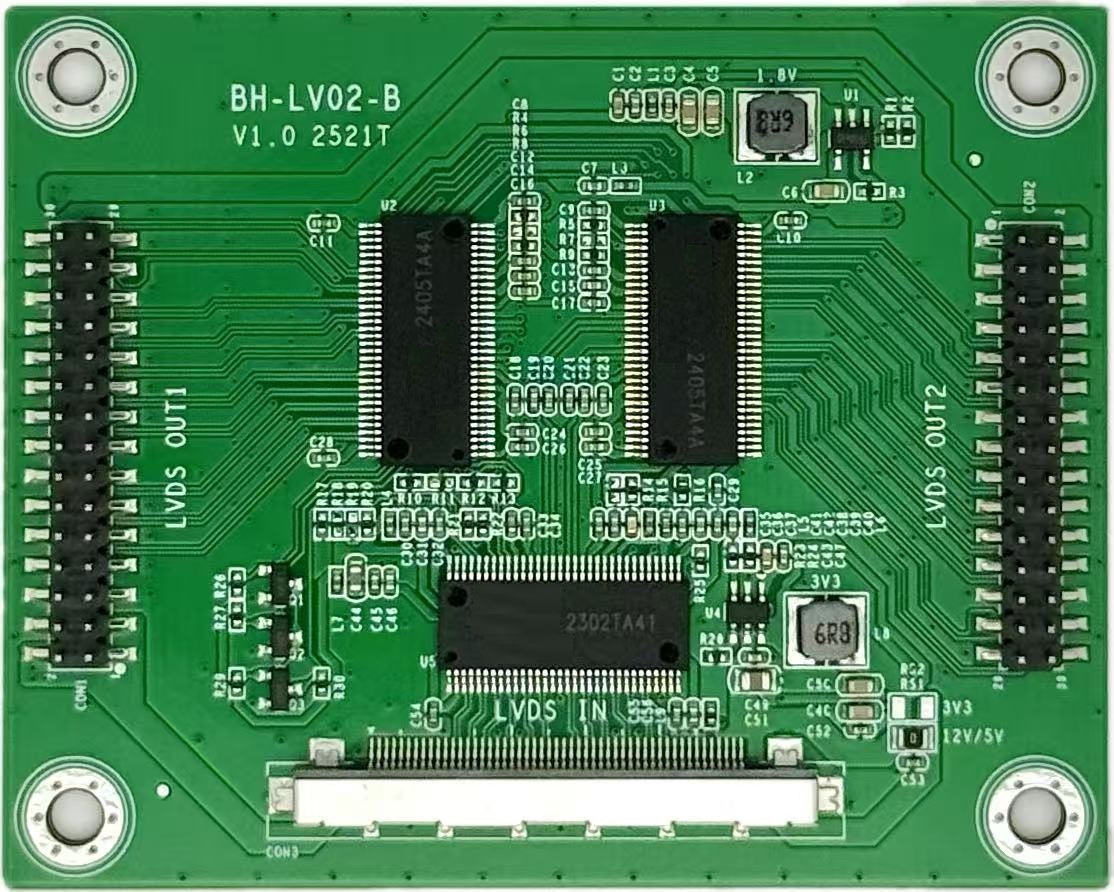

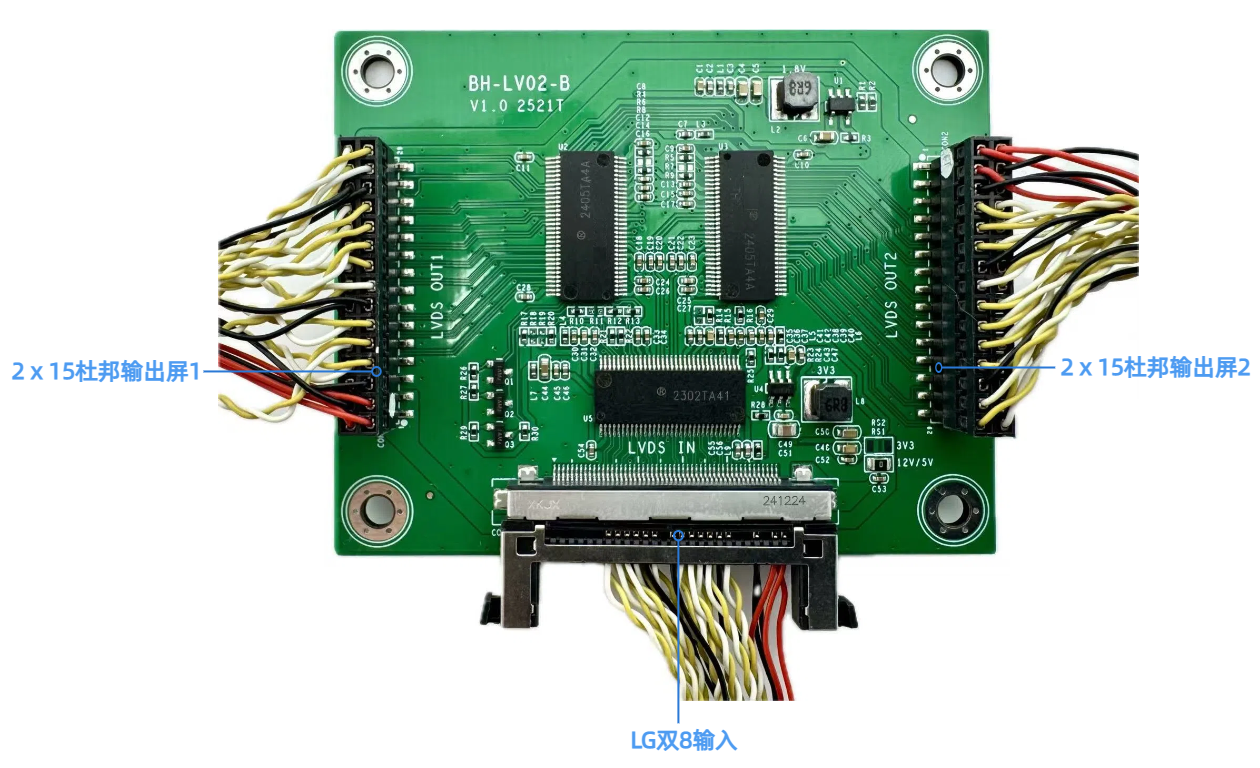

BH-LV02-B

BH-LV02-B is a conversion board with LVDS signal extension and duplication functions. It can split one input signal into two outputs, enabling a single mainboard to drive two LVDS screens—making it widely applicable for ultra-thin dual-sided display requirements.

PS-6M38-A

The PS-6M38-A is a 2K-4K signal adapter board (1920*1080@60Hz→3840*2160Hz@60Hz conversion). It provides a standard Full-HD LVDS input interface (LG definition). After scaler image amplification and MEMC image processing, it generates a 4K ultra-high-definition V-by-One model and directly drives 4K@60Hz panels. The output supports 0 (single) and 2-zone 4K V-by-One signal formats.

BH-6M60-H

The BH-6M60-H is a multifunctional display driver signal adapter board. Its frame buffer operation is compatible with the screen parameter inputs of various motherboards, ensuring stable fixed frame rate output signals. Input and output signal formats can be easily configured using jumpers. It can also be used for 16-lane V-by-one 4K-120Hz signal detection. When paired with a V-by-one to HDMI converter board, it can be used to build a simple TV motherboard R&D and testing tool.

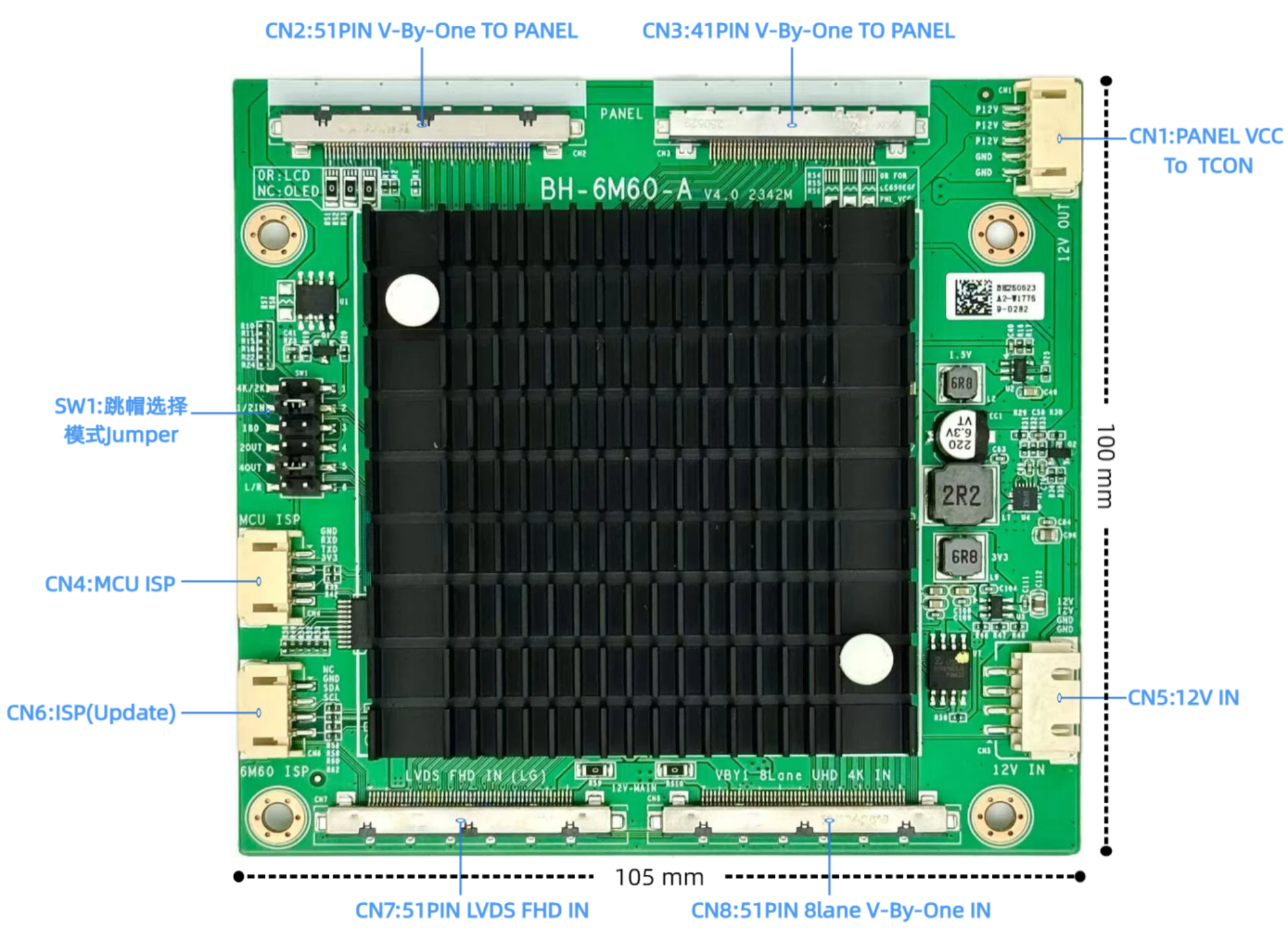

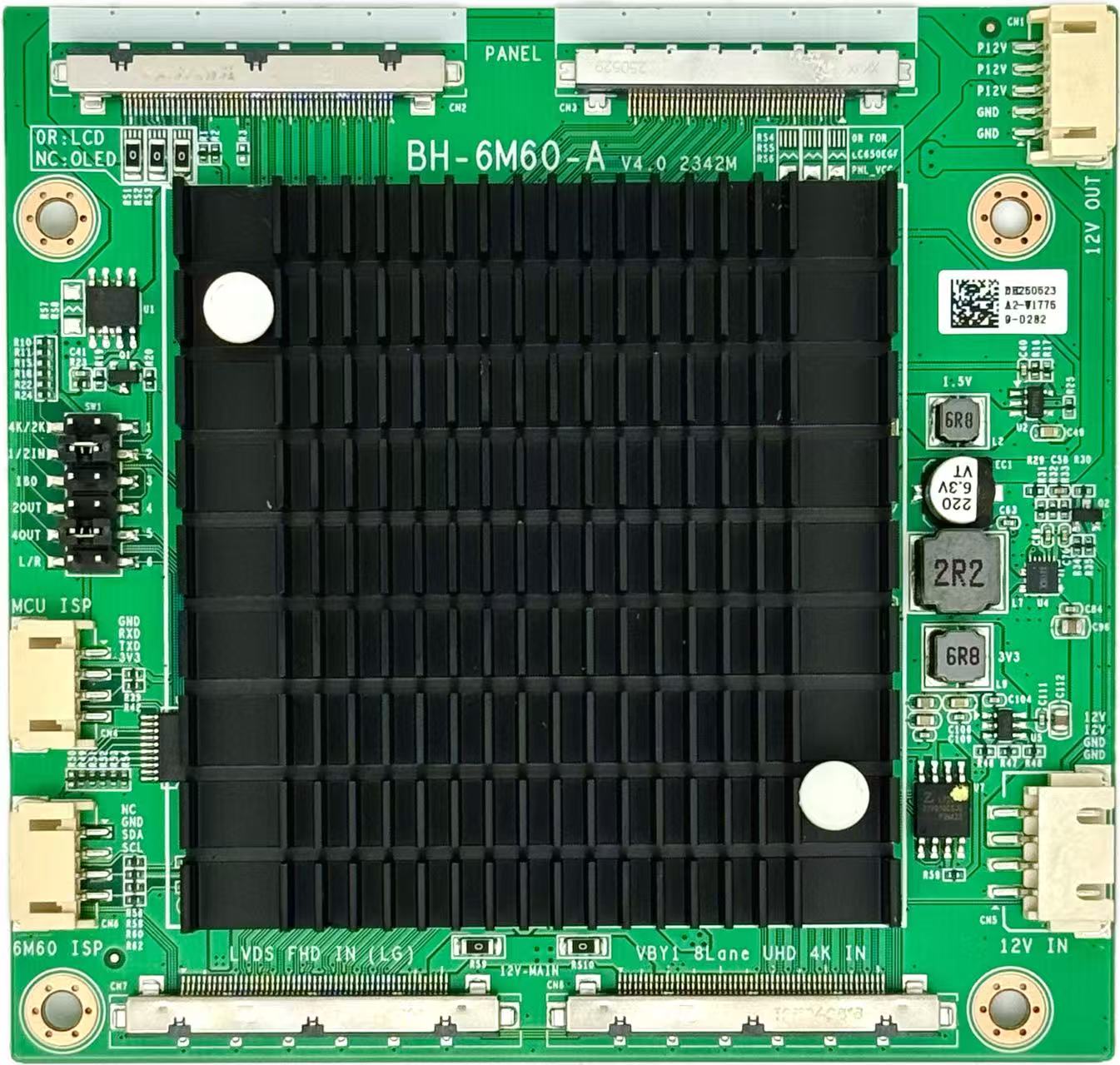

BH-6M60-A

BH-6M60-A is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion), providing a standard 8-lane V-By-One input interface and directly driving a 4K@120Hz V-by-One signal interface panel. It supports most 4K 120Hz panels on the market and 4K OLED screens.
