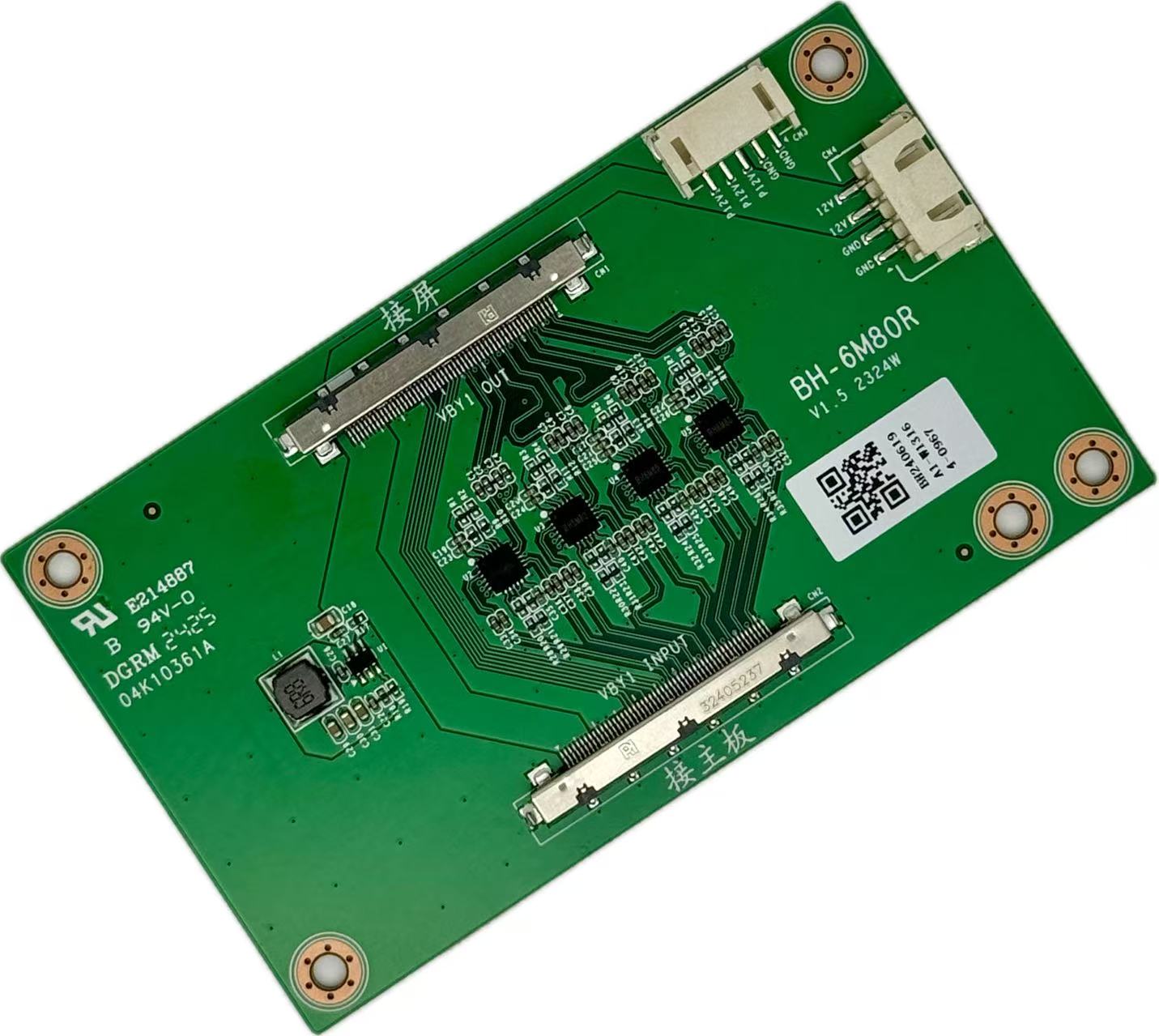

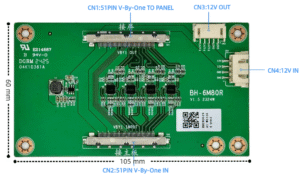

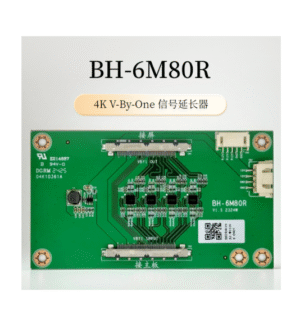

BH-6M80R

Parameter	Describe
Main chip	BH6M80
Panel Type	V-by-one 3840x2160
input Cable	Recommended length ≤ 0.6 meters
output Cable	High frequency FFC single shielding up to 1.8 meters
low latency	＜0.2mS
low power consumption	＜1.8W
Electrostatic protection	HBM:10,000 V

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

BH-7233-B

BH-7233-B is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

BH-6M60-A

BH-6M60-A is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion), providing a standard 8-lane V-By-One input interface and directly driving a 4K@120Hz V-by-One signal interface panel. It supports most 4K 120Hz panels on the market and 4K OLED screens.

BH-4KVH-B

The BH-4KVH-B is a 4K V-By-One to HDMI signal converter board that supports 8 lane V-by-One input, drives 8 lane V-By-One 4K 60Hz large-size panels through V-By-One bridging, and simultaneously outputs HDMI signals.
