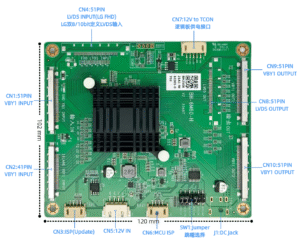

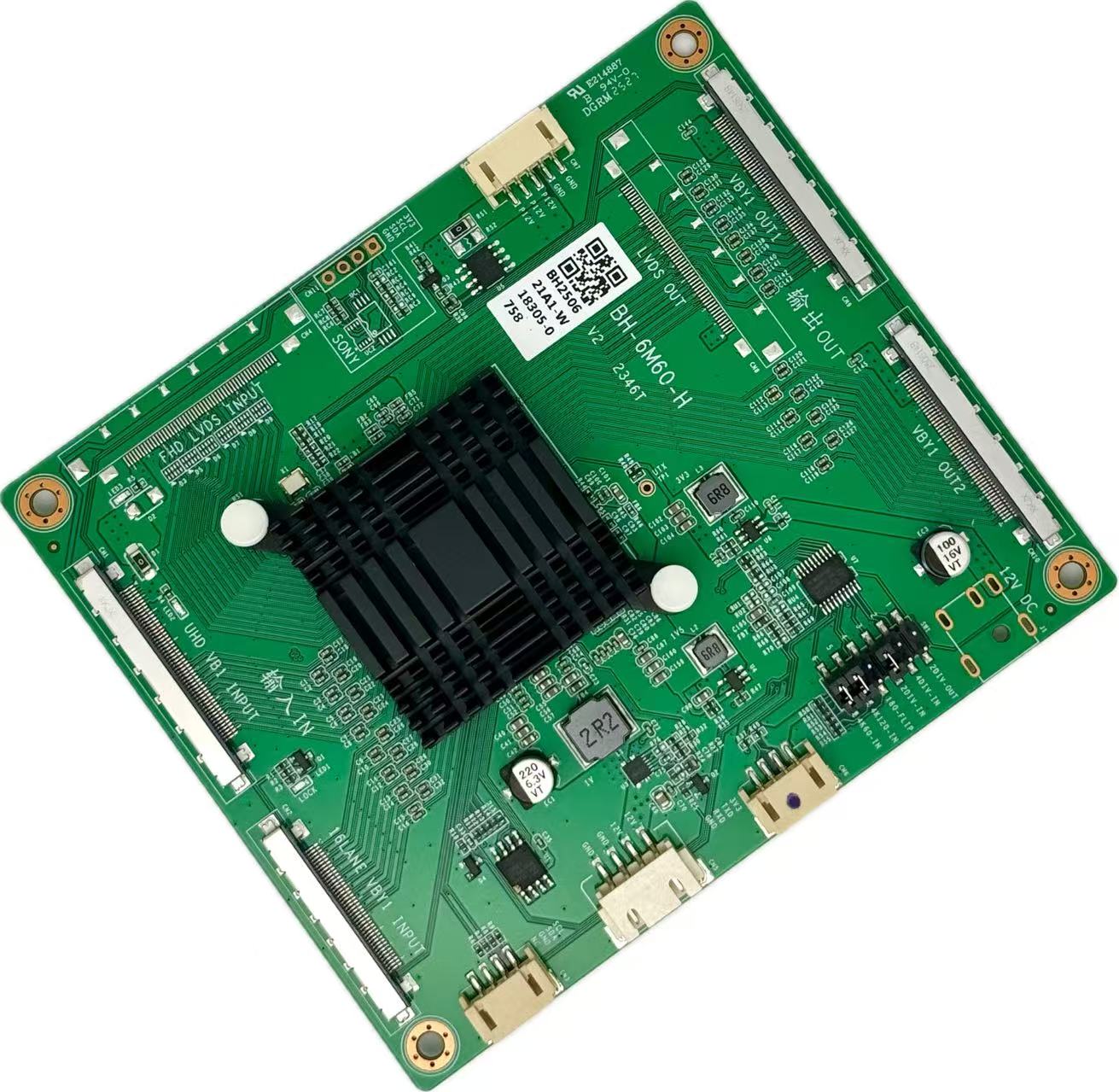

BH-6M60-H

The BH-6M60-H is a multifunctional display driver signal adapter board. Its frame buffer operation is compatible with the screen parameter inputs of various motherboards, ensuring stable fixed frame rate output signals. Input and output signal formats can be easily configured using jumpers. It can also be used for 16-lane V-by-one 4K-120Hz signal detection. When paired with a V-by-one to HDMI converter board, it can be used to build a simple TV motherboard R&D and testing tool.

ENQUIRY!
ParameterDescribe
Main chipNT72334
Panel Type3840x2160
FRC120Hz-60Hz Frame rate down conversion
power consumptionMax 4.8W
Scalable functionalitySONY TCON Unlock
