BH-6M60-A

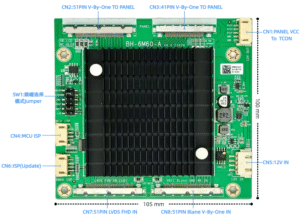

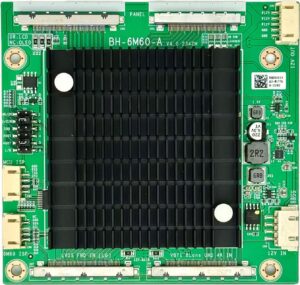

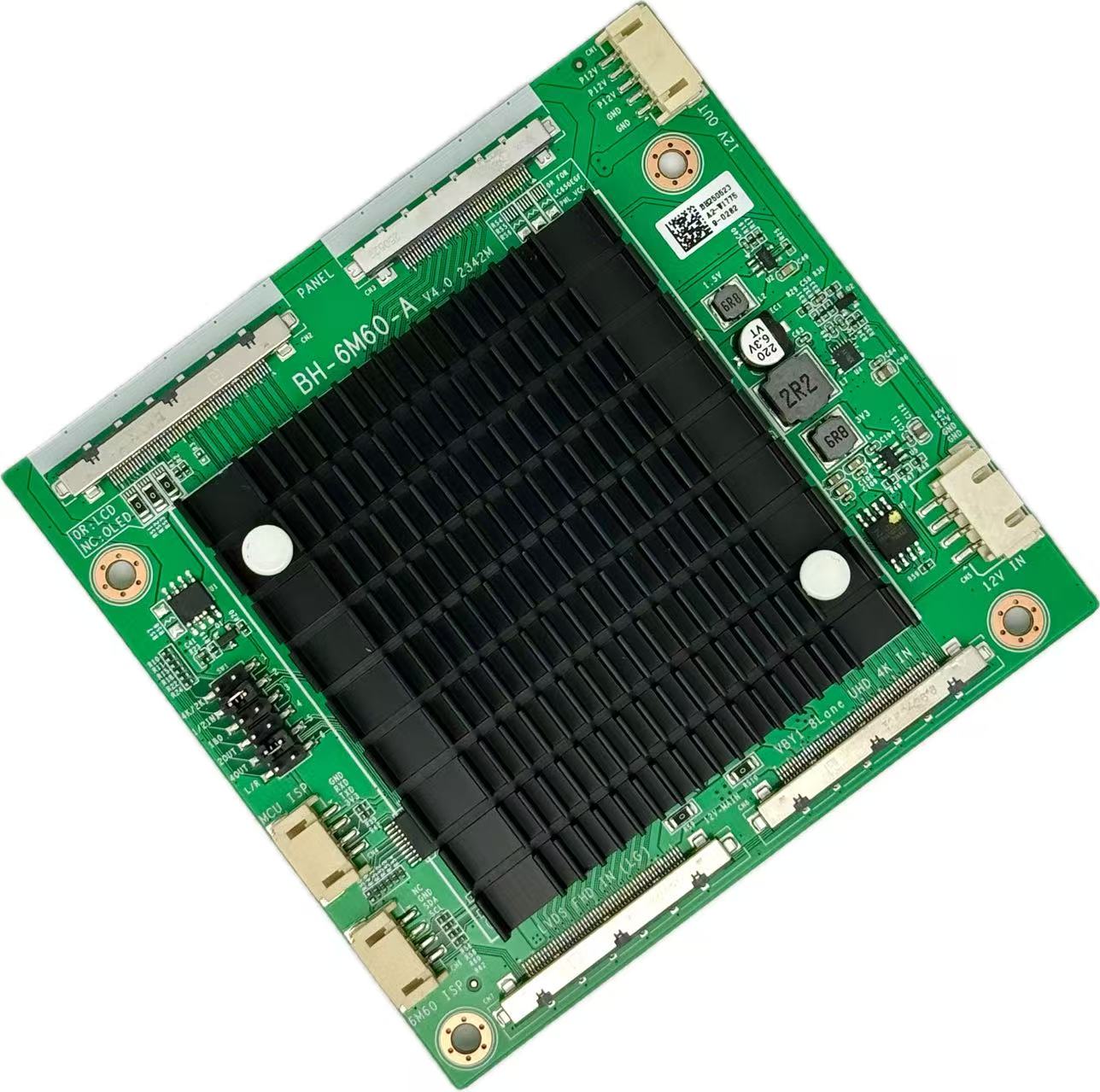

BH-6M60-A is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion), providing a standard 8-lane V-By-One input interface and directly driving a 4K@120Hz V-by-One signal interface panel. It supports most 4K 120Hz panels on the market and 4K OLED screens.

ENQUIRY!

Description

Parameter	Describe
Main chip	MST6M60Fx
Panel Type	16 lane V-by-one, 3840x2160@120Hz TFT LCD or OLED
LVDS input format	1920x1080 （JEIDA/VESA,8/10bit）
V-by-one input format	8Lane 3840x2160 1/2 Partition分区
V-by-one output format	16lane 3840x2160 120Hz
FRC	60Hz-120Hz Frame rate conversion
MEMC	3D motion image compensation
power consumption	≤5W
