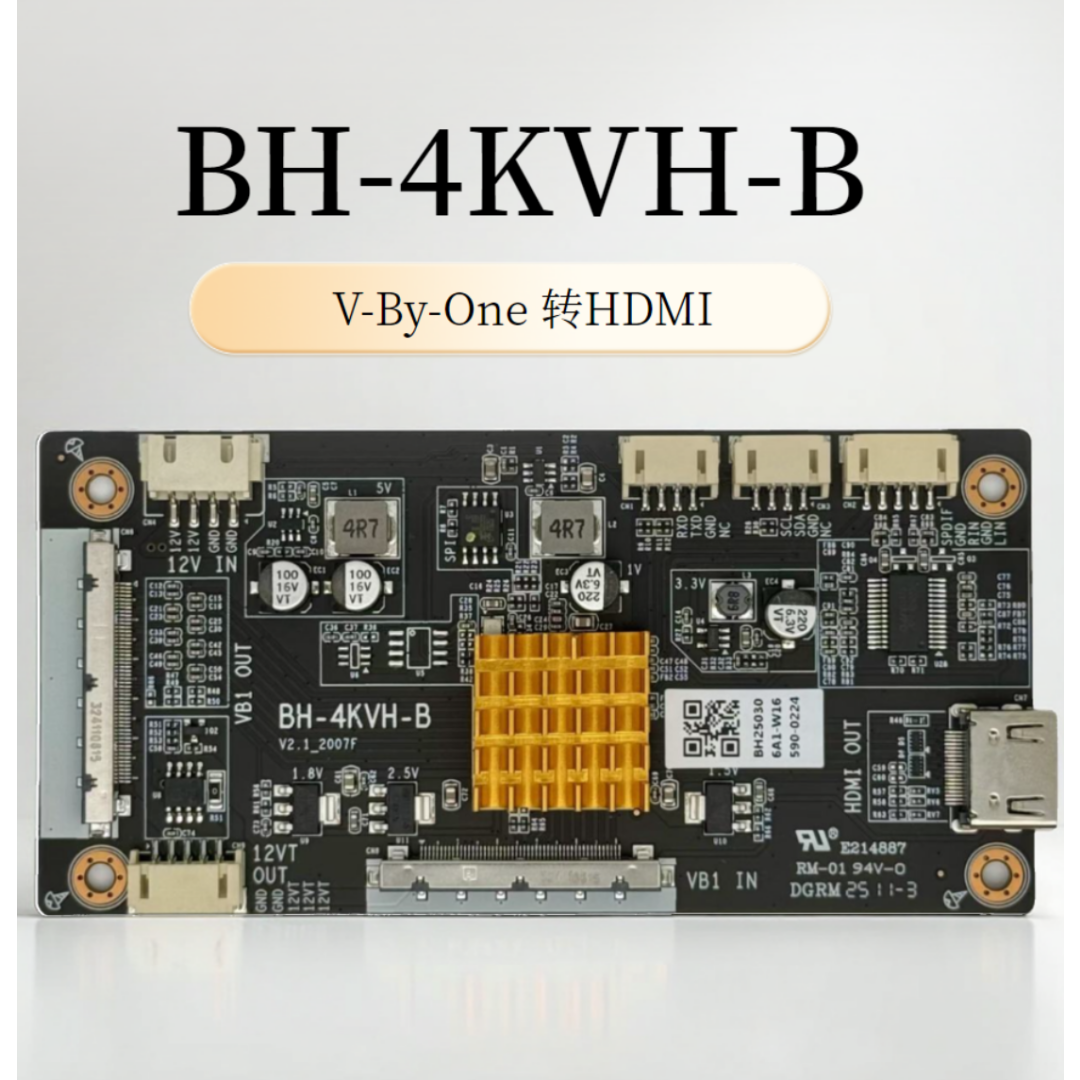

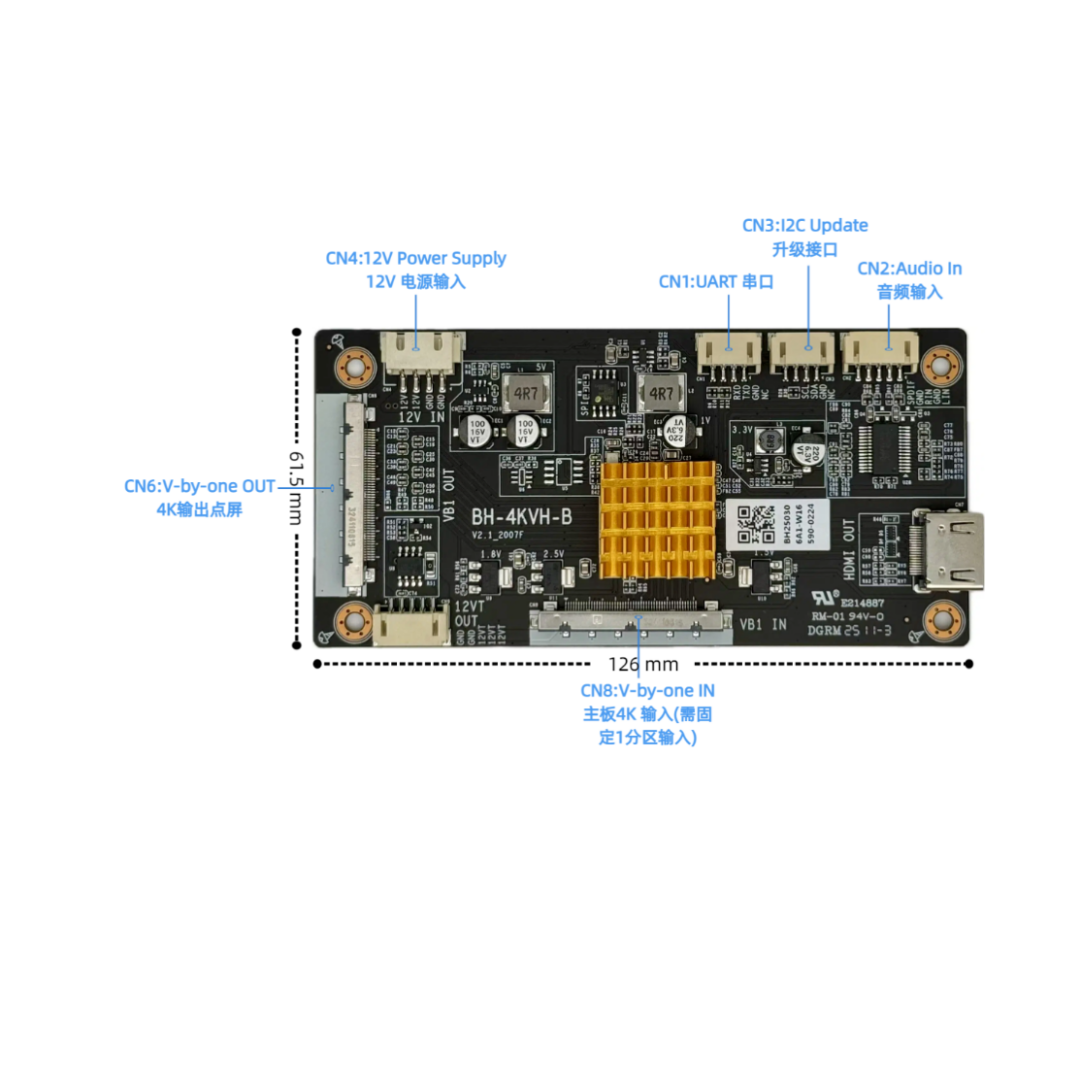

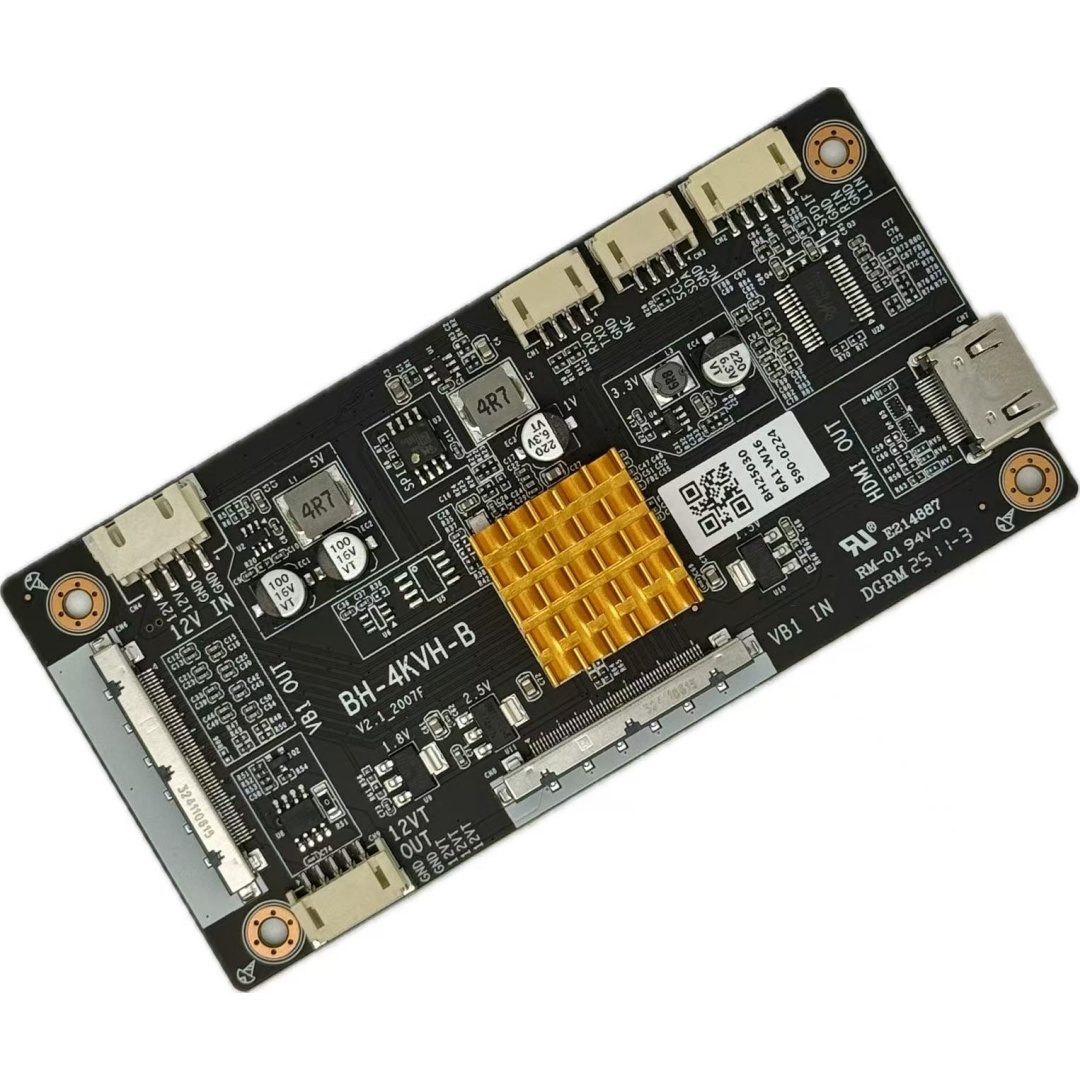

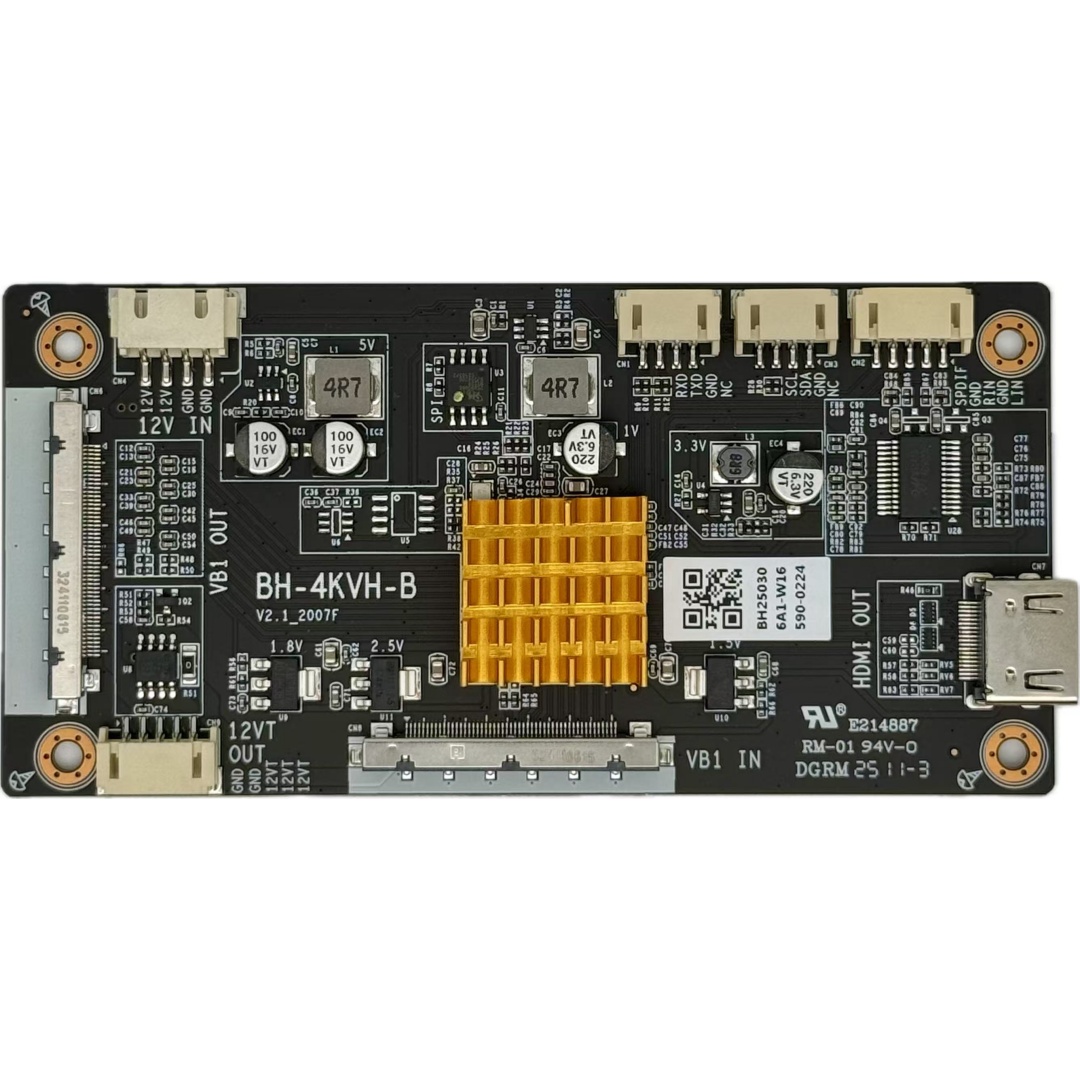

BH-4KVH-B

Parameter	Describe
Main chip	NOVATEK NT68411
Target Applications	Educational whiteboards, large-screen conference displays
Panel Type	8-lane V-by-one, 3840x2160
HDMI OUT	3840x2160,1920x1080
Audio input	Analog audio, SPDIF
Power input	Powered by V-by-one display cable or a separate 12V power supply
Power consumption	<3.5W

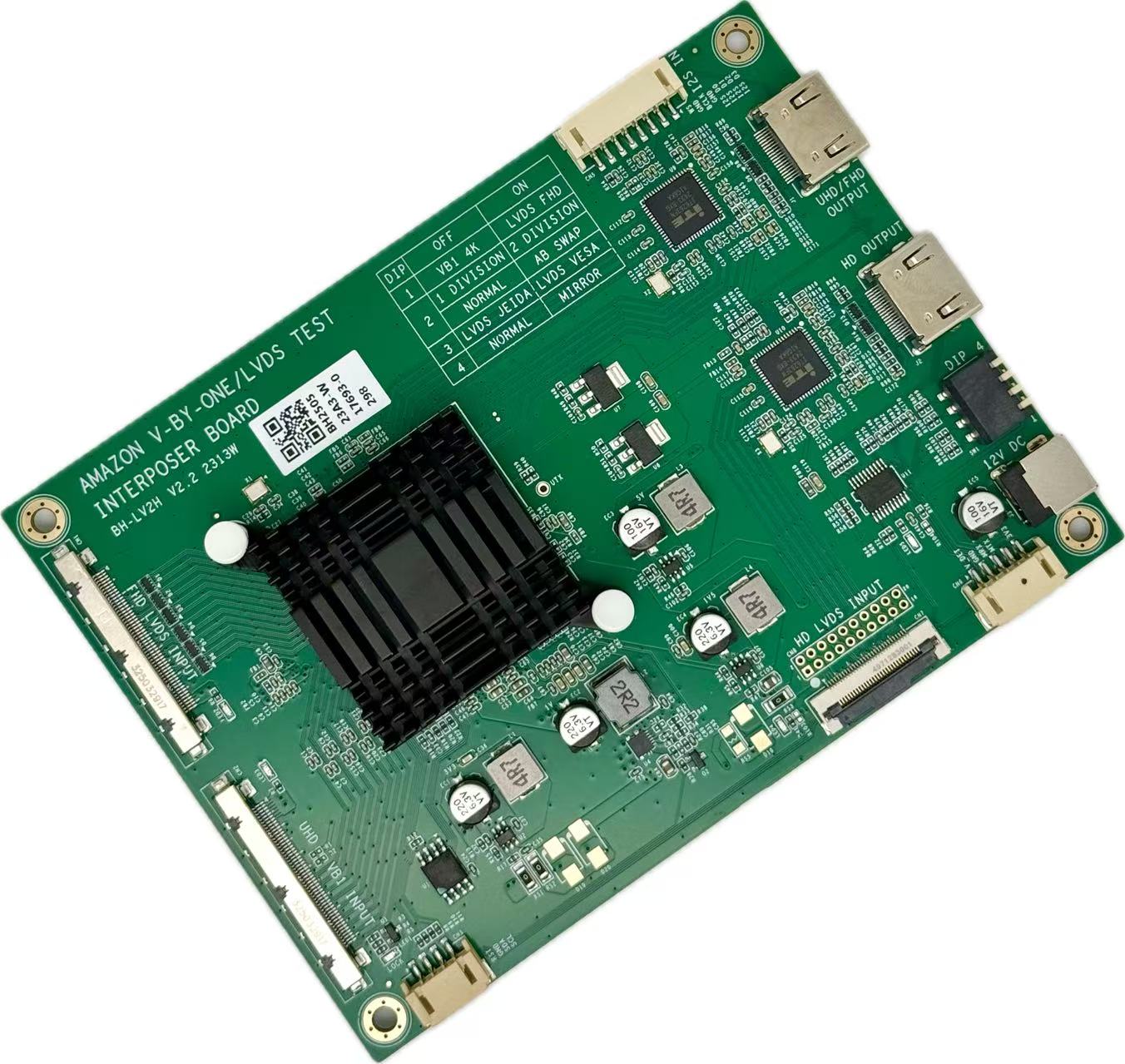

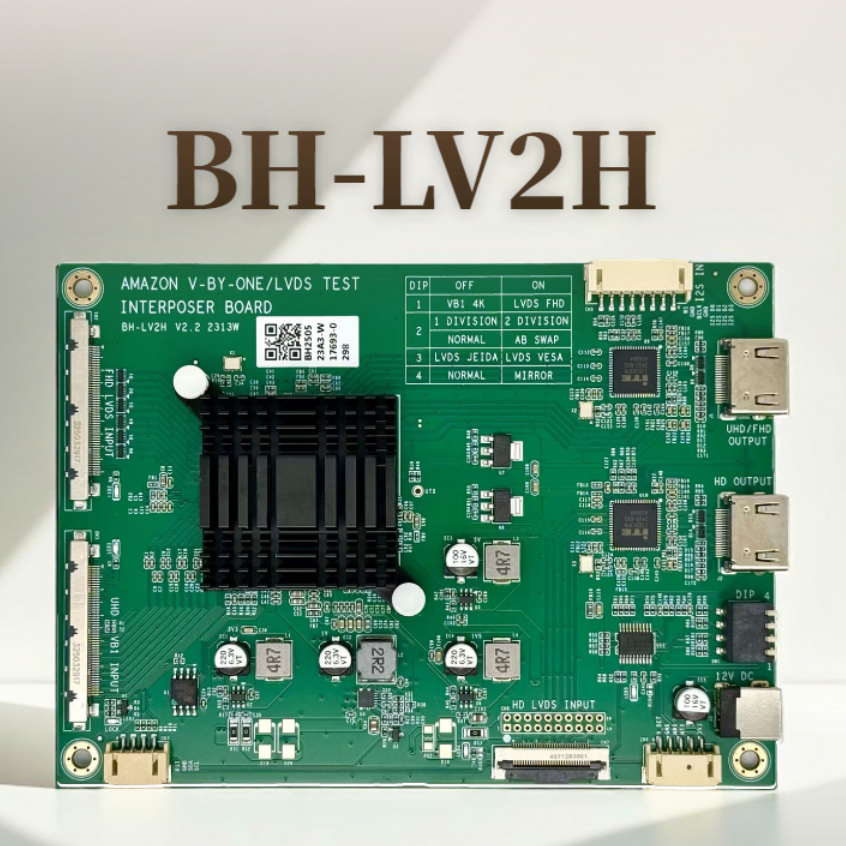

BH-LV2H

BH-LV2H is a V-By-One and LVDS signal test board. It supports 8-channel V-by-One UHD 4K (3840×2160) signal input, as well as LVDS HD signal input with 2-port LVDS FHD (1920×1080) signal input, and then converts these signals into HDMI output.

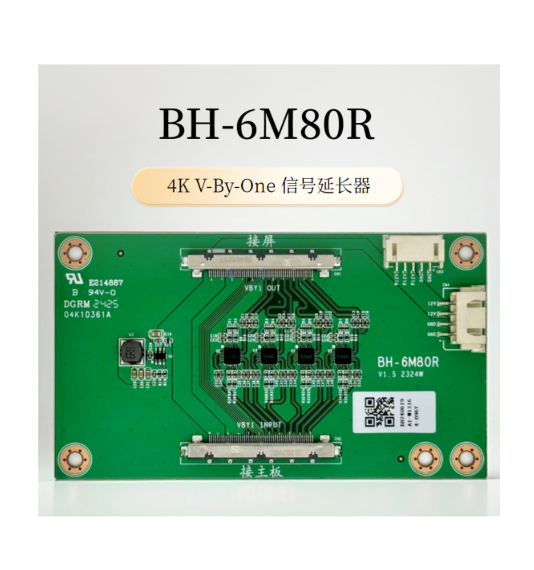

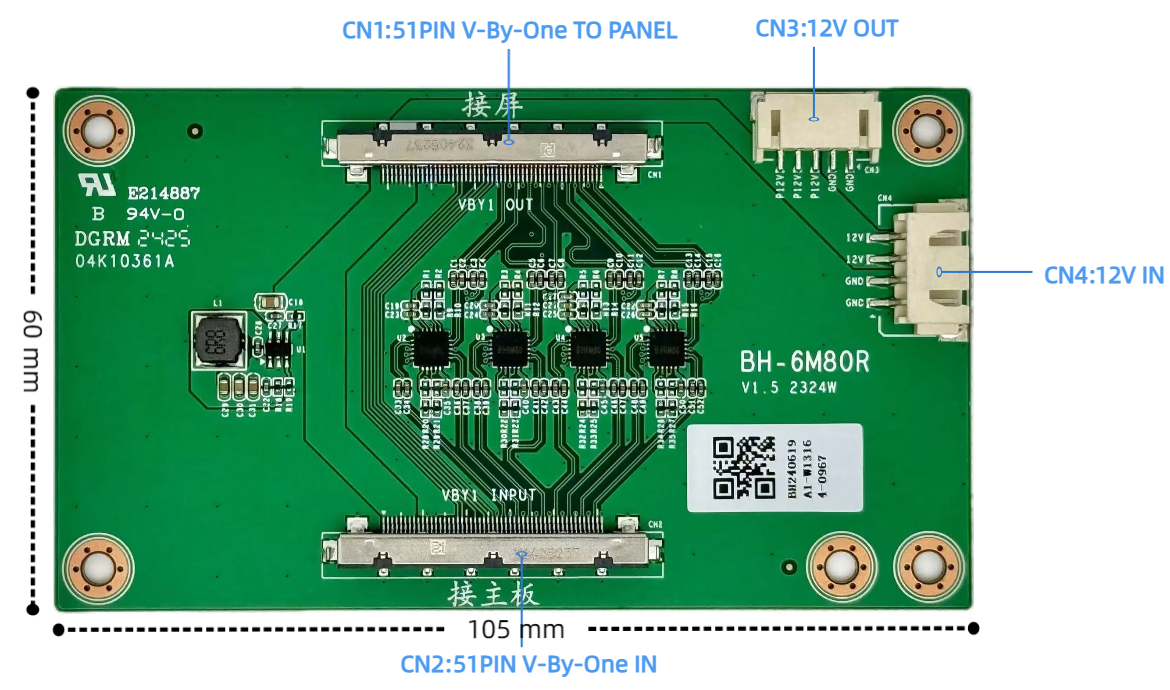

BH-6M80R

BH-6M80R is a 4K screen cable extender, designed for extending 4K V-by-One signals. It is suitable for applications requiring ultra-long V-by-One screen cables, such as electronic blackboards, and features strong signal compatibility.

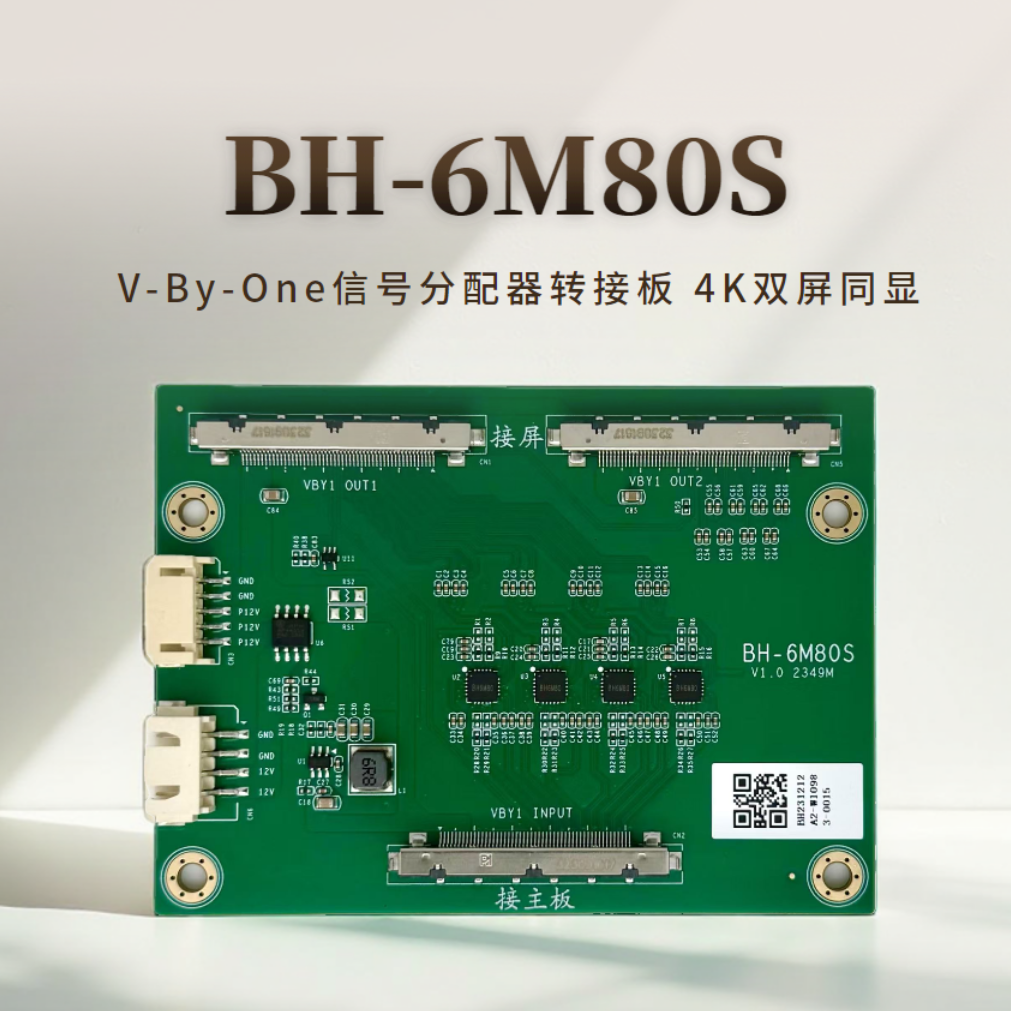

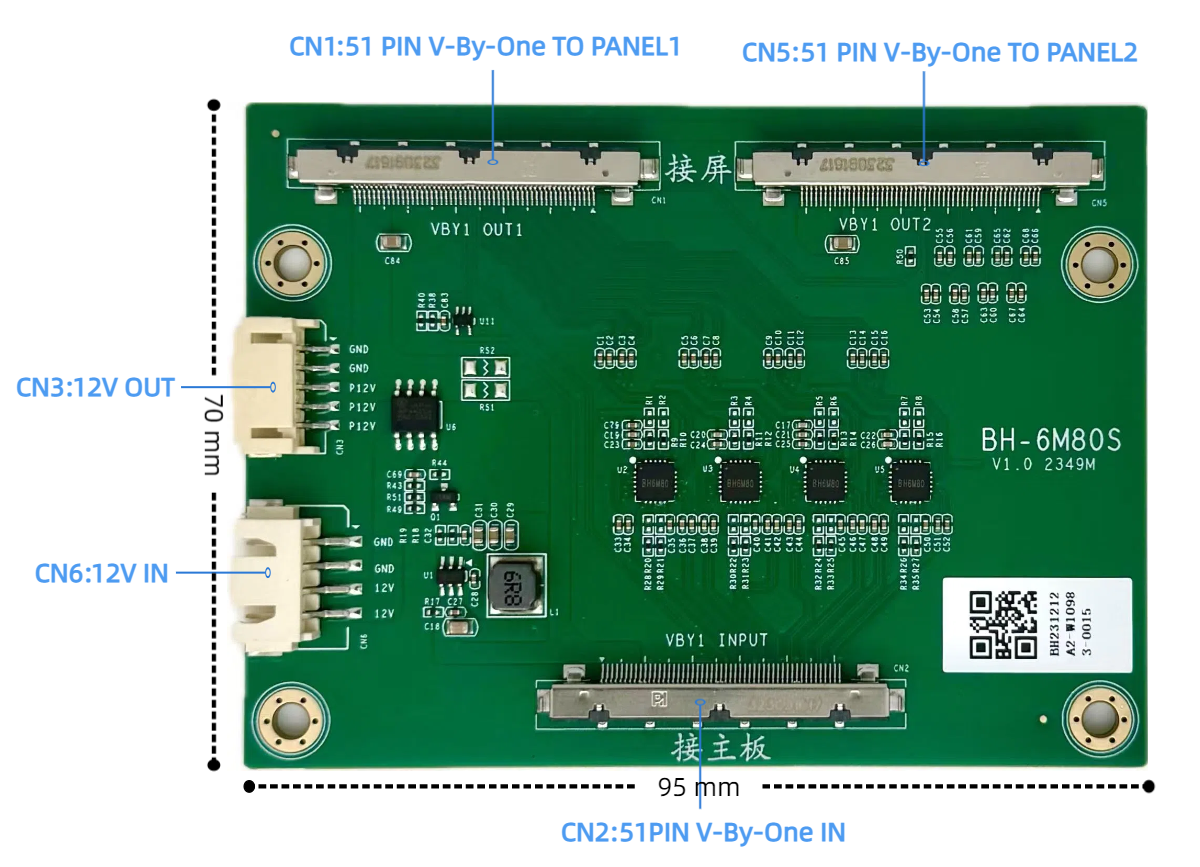

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

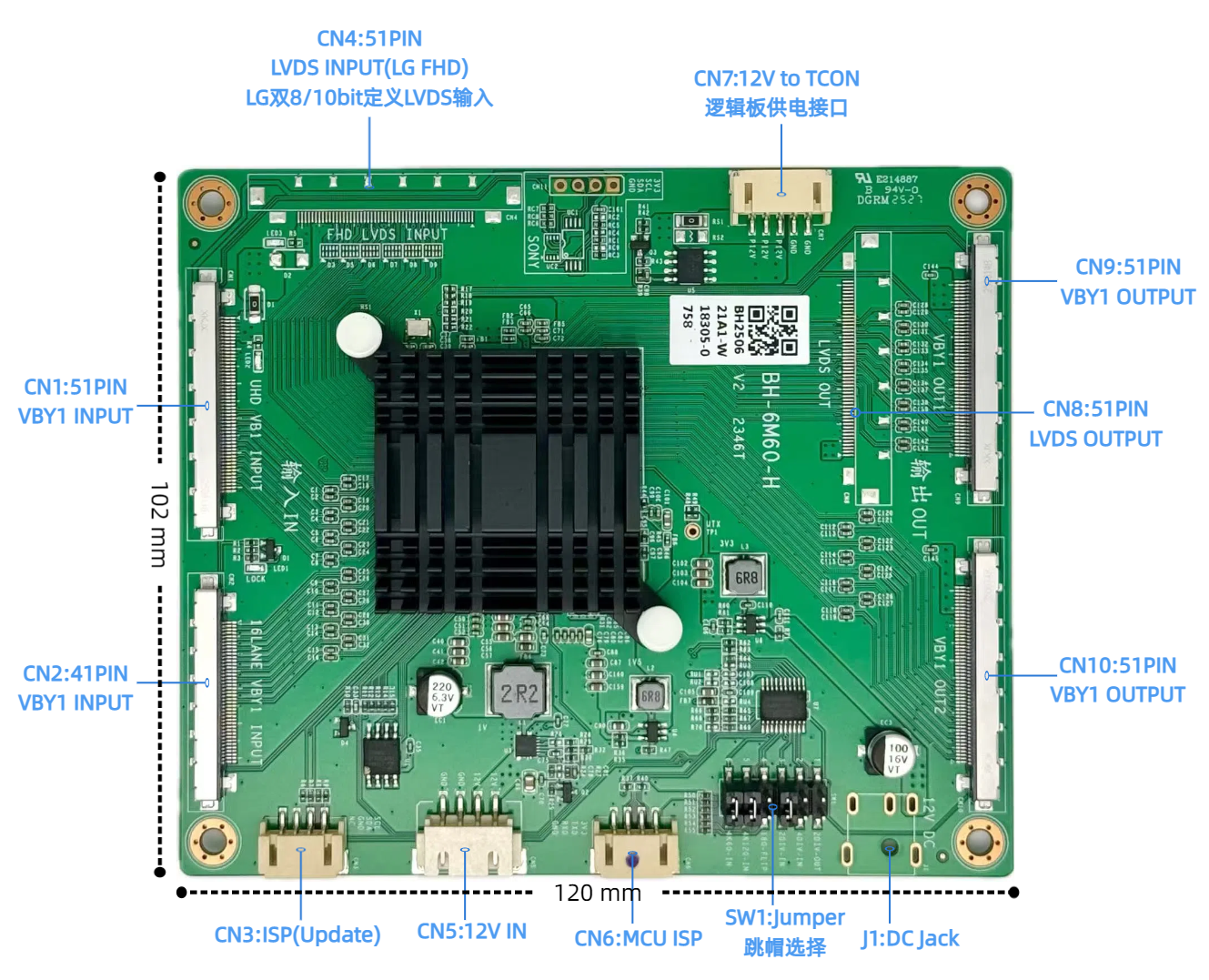

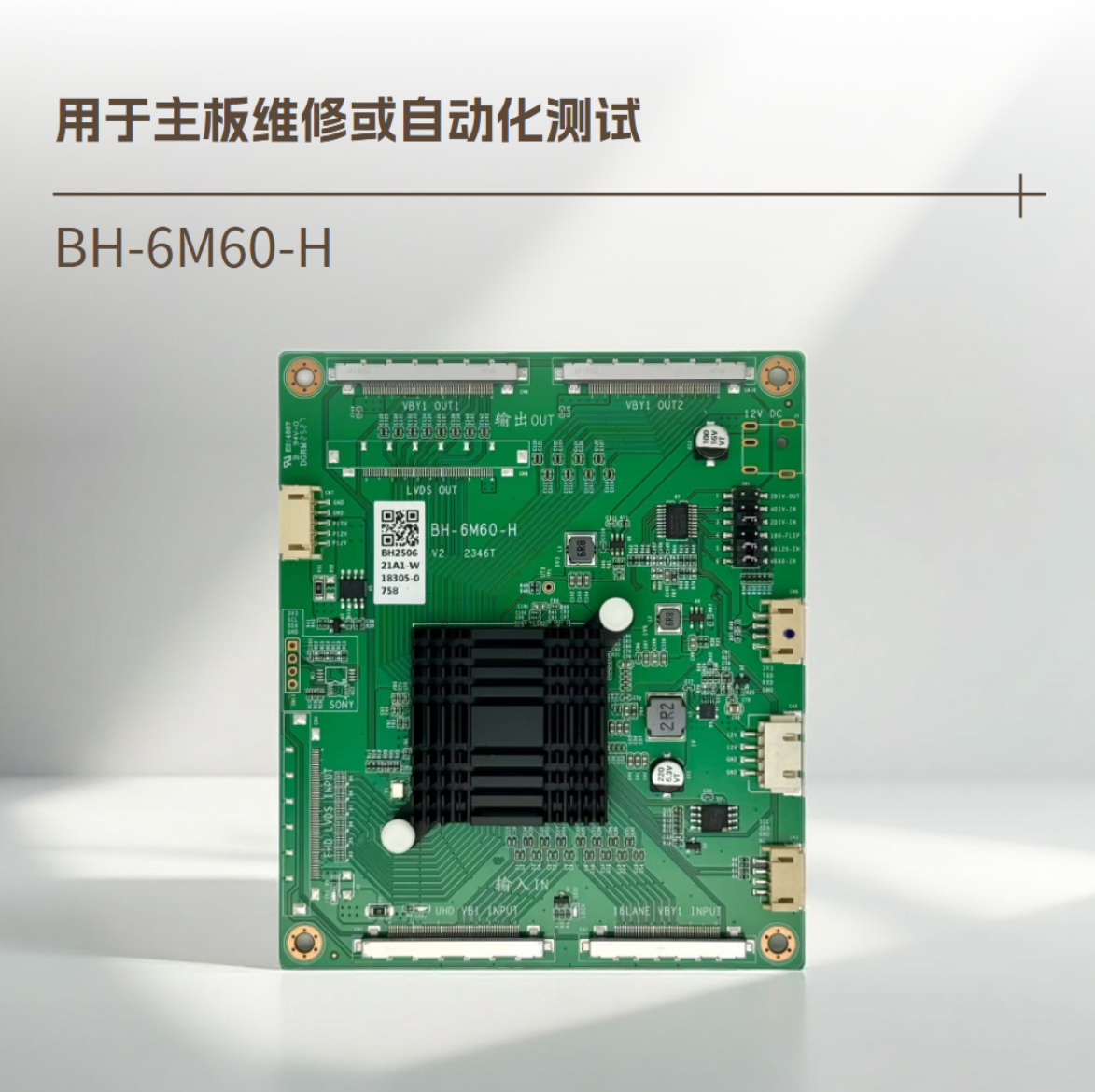

BH-6M60-H

The BH-6M60-H is a multifunctional display driver signal adapter board. Its frame buffer operation is compatible with the screen parameter inputs of various motherboards, ensuring stable fixed frame rate output signals. Input and output signal formats can be easily configured using jumpers. It can also be used for 16-lane V-by-one 4K-120Hz signal detection. When paired with a V-by-one to HDMI converter board, it can be used to build a simple TV motherboard R&D and testing tool.

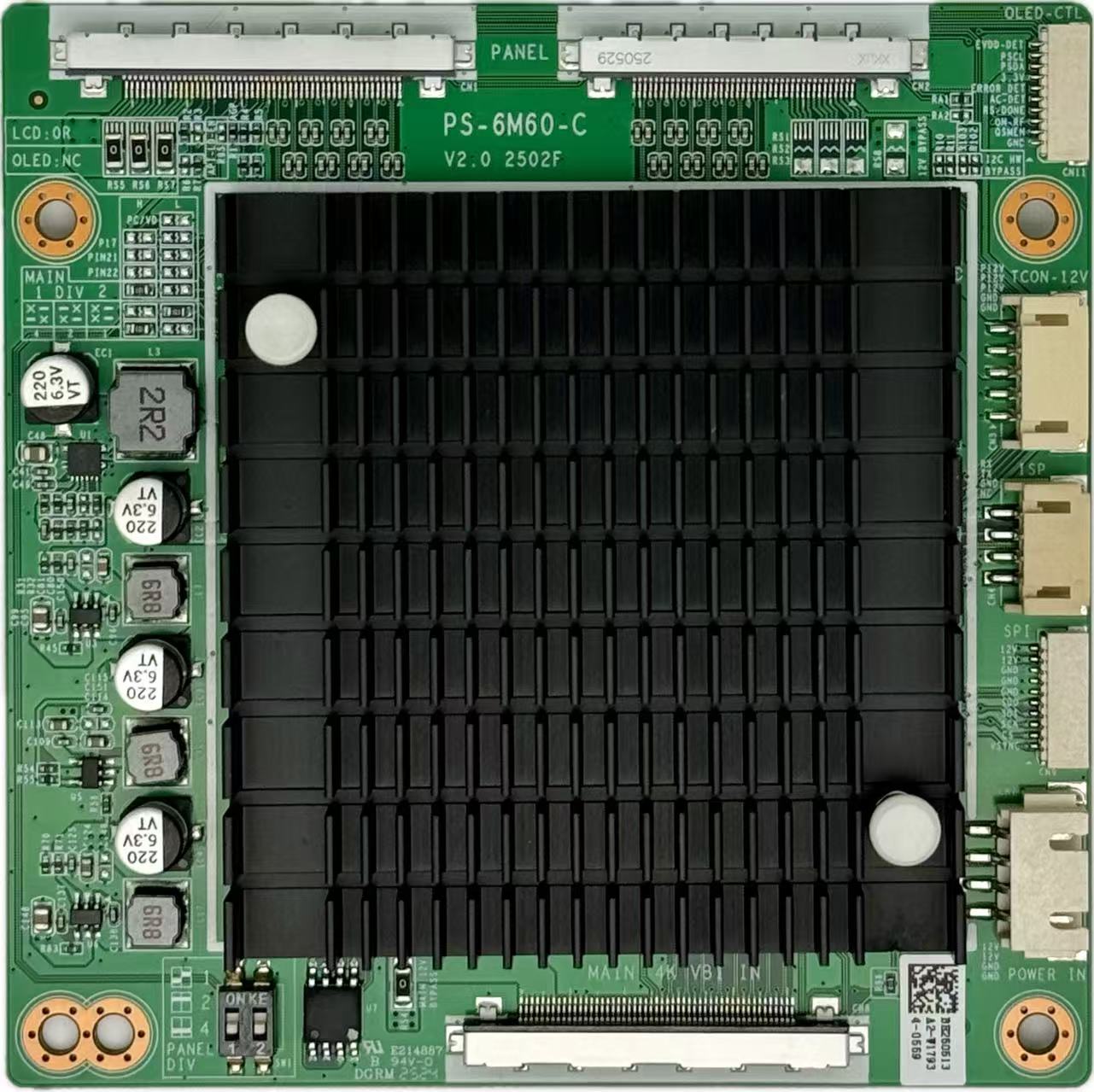

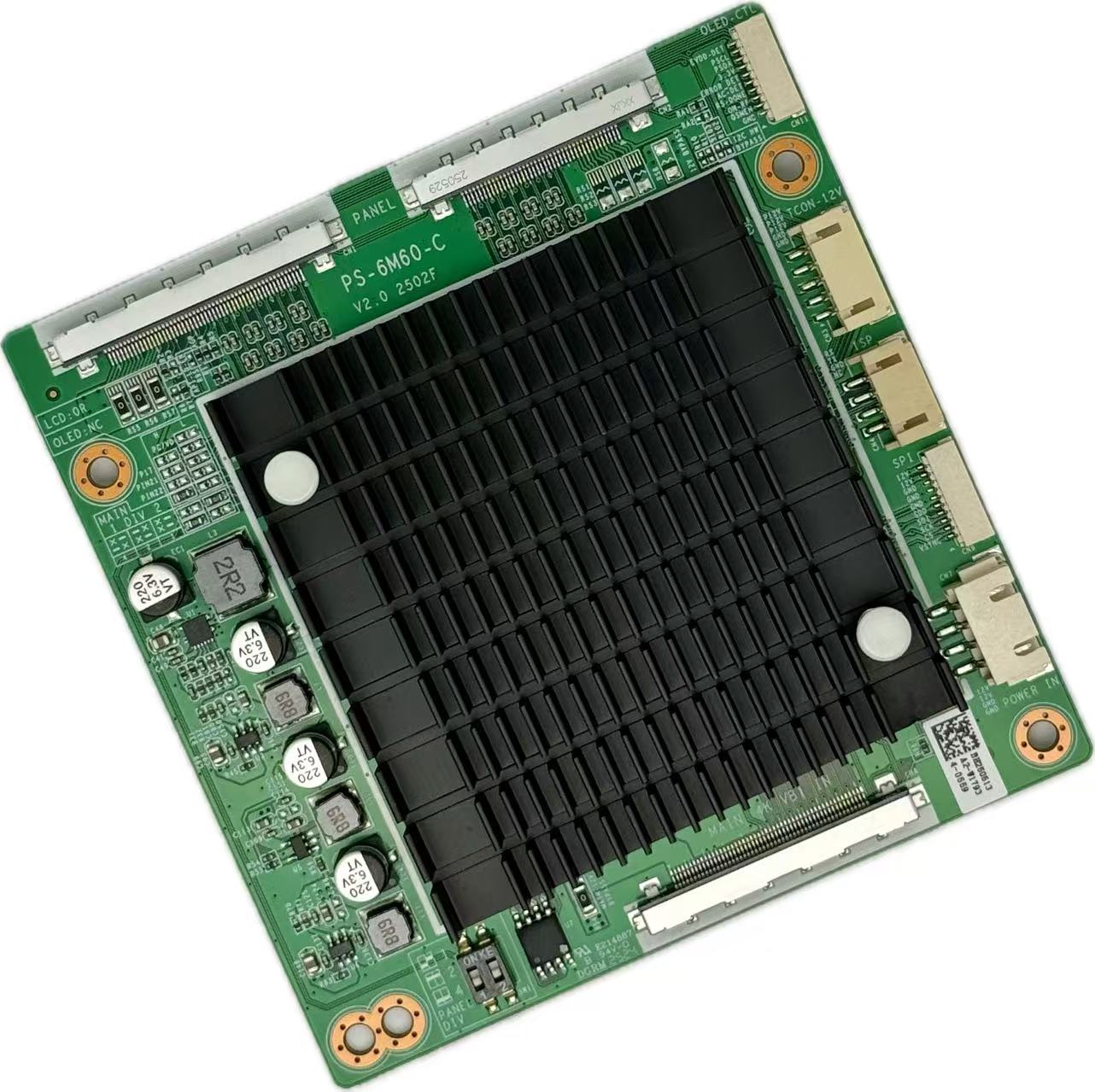

PS-6M60-C

The PS-6M60-C is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion). It provides a standard V-By-ONE input interface, generates 4K ultra-high-definition V-by-One signals through scaler image amplification and MEMC image processing, and directly drives 4K@120Hz panels. It supports most 4K panels on the market and 4K OLED screens.
