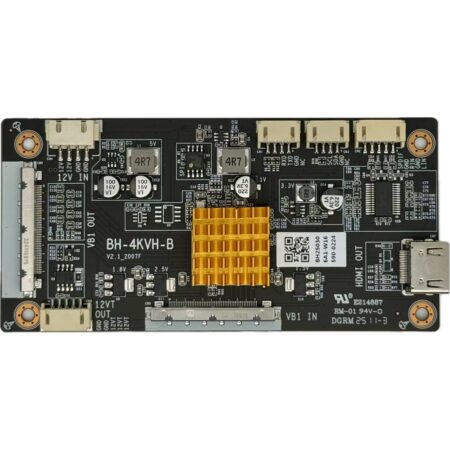

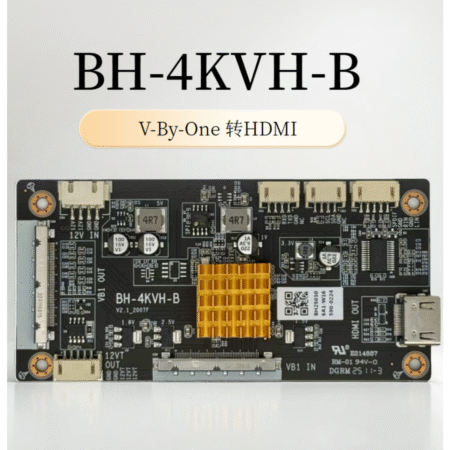

The BH-4KVH-B is a 4K V-By-One to HDMI signal converter board that supports 8 lane V-by-One input, drives 8 lane V-By-One 4K 60Hz large-size panels through V-By-One bridging, and simultaneously outputs HDMI signals.

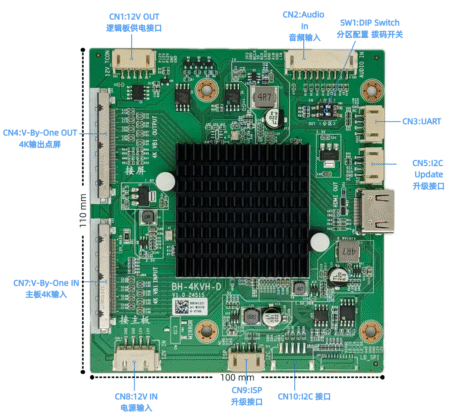

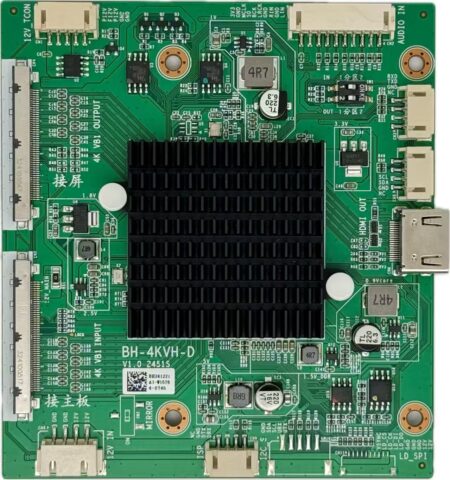

BH-4KVH-D is a 4K V-by-One to HDMI signal conversion board. It supports 8-lane V-by-One input, drives large-size 8-lane V-by-One 4K 60Hz display panels via V-by-One bridging, and synchronously outputs HDMI signals with a maximum resolution of 4K@60Hz. If the downstream display device does not support 4K 60Hz, it will output 1080P 60Hz signals instead.

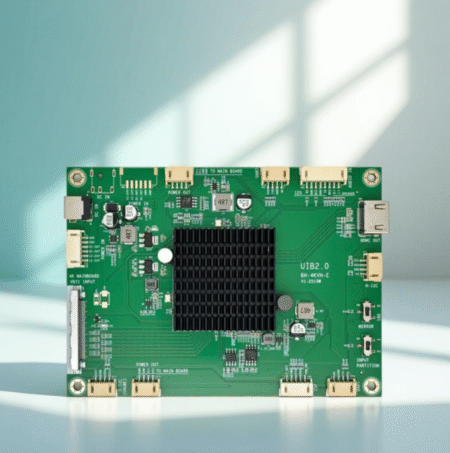

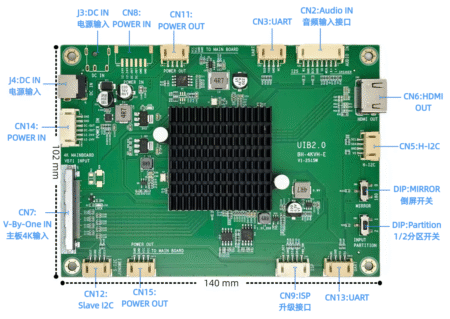

BH-4KVH-E is a 4K V-by-One to HDMI signal conversion board. It supports 8-lane V-by-One input and 4K@60Hz HDMI output. If the downstream display device does not support 4K 60Hz, it will output 1080P@60Hz by default.

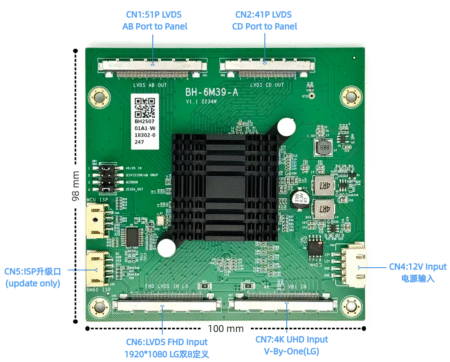

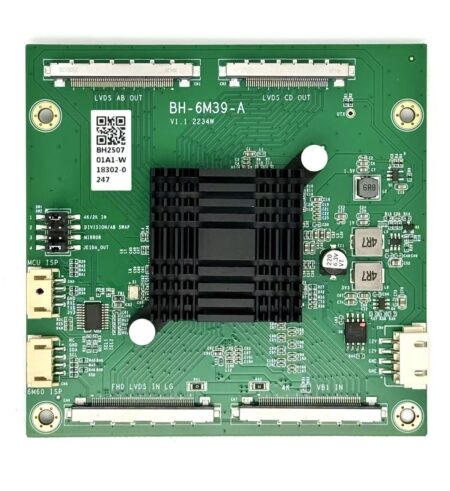

BH-6M39-A is an LVDS signal frequency doubling conversion board (supporting 1920×1080@50/60Hz → 1920×1080@100/120Hz conversion). It provides a Full-HD LVDS input interface, and after image processing such as frame rate conversion, it generates FHD 120Hz four-channel LVDS signals, which can directly drive 2K@120Hz display panels.

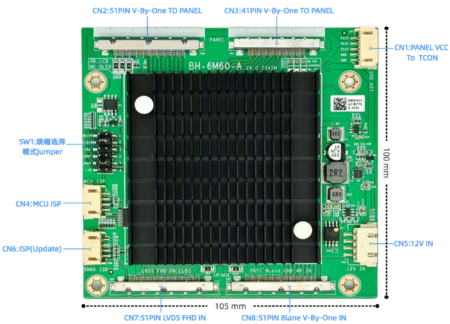

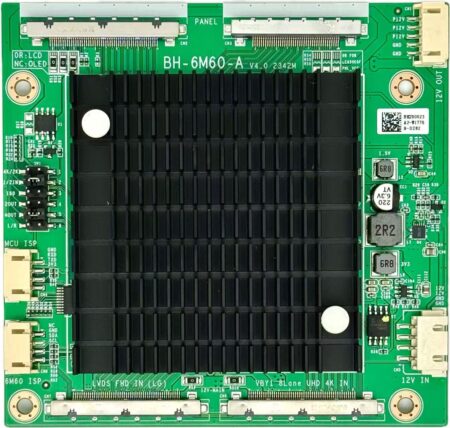

BH-6M60-A is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion), providing a standard 8-lane V-By-One input interface and directly driving a 4K@120Hz V-by-One signal interface panel. It supports most 4K 120Hz panels on the market and 4K OLED screens.

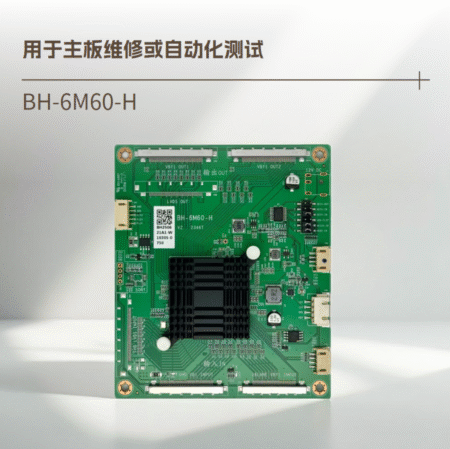

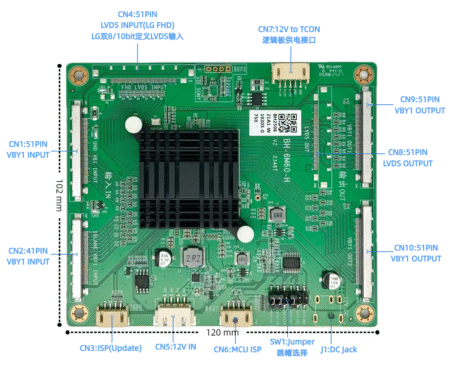

The BH-6M60-H is a multifunctional display driver signal adapter board. Its frame buffer operation is compatible with the screen parameter inputs of various motherboards, ensuring stable fixed frame rate output signals. Input and output signal formats can be easily configured using jumpers. It can also be used for 16-lane V-by-one 4K-120Hz signal detection. When paired with a V-by-one to HDMI converter board, it can be used to build a simple TV motherboard R&D and testing tool.

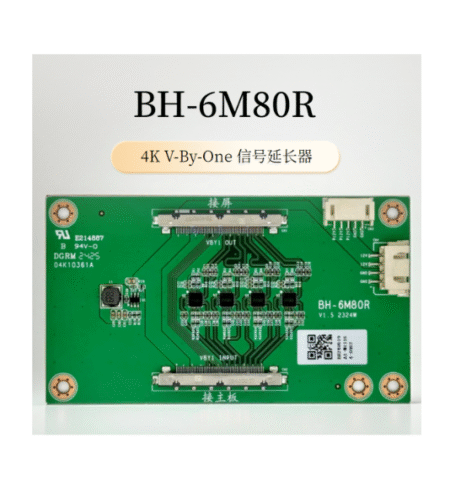

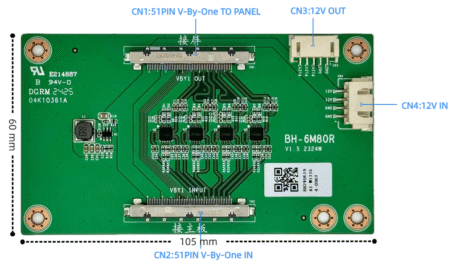

BH-6M80R is a 4K screen cable extender, designed for extending 4K V-by-One signals. It is suitable for applications requiring ultra-long V-by-One screen cables, such as electronic blackboards, and features strong signal compatibility.

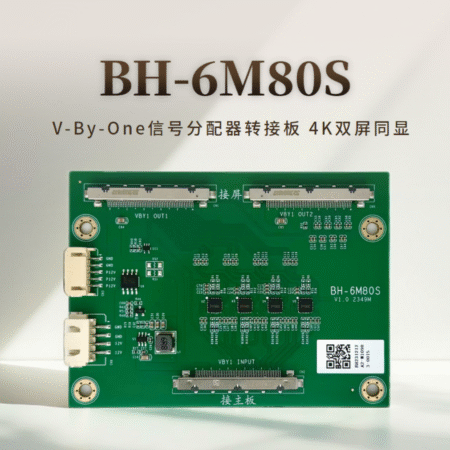

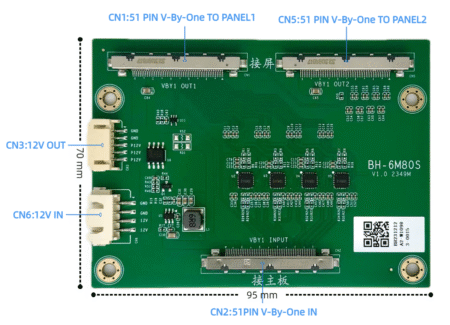

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

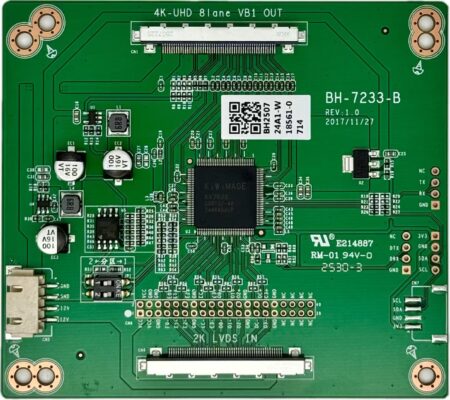

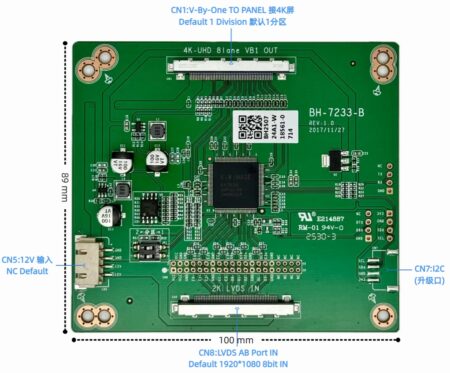

BH-7233-B is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

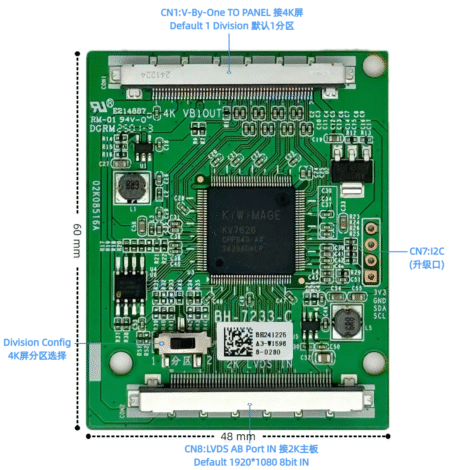

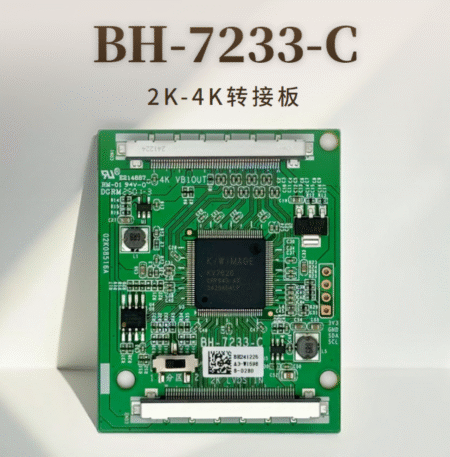

BH-7233-C is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

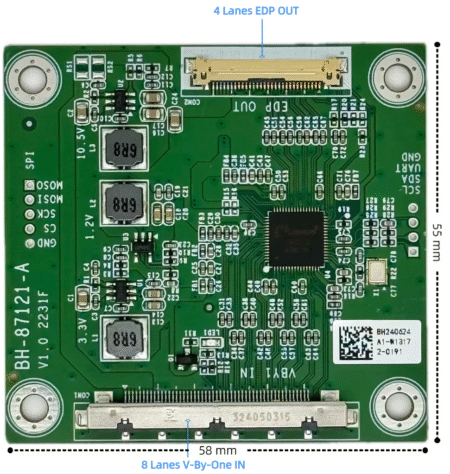

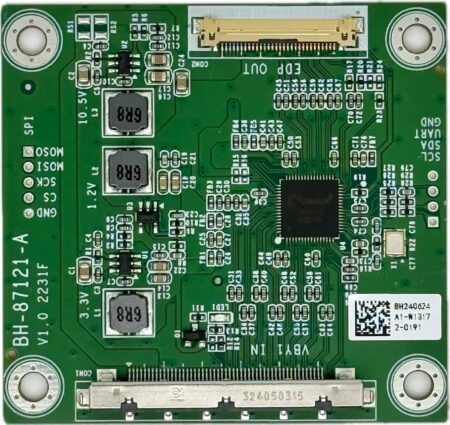

BH-87121-A is an 8-Lane V-By-One to 4-Lane eDP signal conversion board. It supports driving various models of 4-Lane eDP screens, such as BOE's MV270QUM-N10.

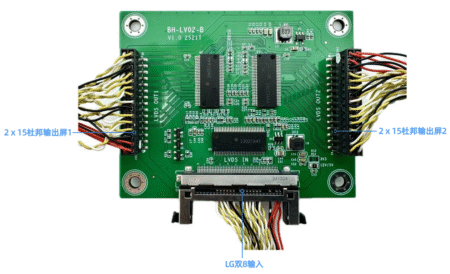

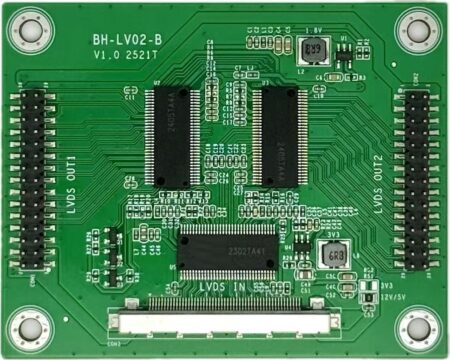

BH-LV02-B is a conversion board with LVDS signal extension and duplication functions. It can split one input signal into two outputs, enabling a single mainboard to drive two LVDS screens—making it widely applicable for ultra-thin dual-sided display requirements.
