| Parameter | Describe |
|---|---|
| Main chip | MT9810 |
| Target Applications | 8K monitors |
Panel Type | 32 lane V- by- one 16 lane EDP(HBR3) |
Video Input | HDMI2.1: Up to 3840x2160@240Hz,7680x4320@60Hz;HDR Dispaly Port1.4:840x2160@240Hz,7680x4320@60Hz |
| Power Requirement | 12V-24V/5V, 12V, 24V, 5VSB single voltage 12-24V wide voltage input or multi-channel power supply compatible |
| POWER TO TCON | 10V/12V ( optional ) |

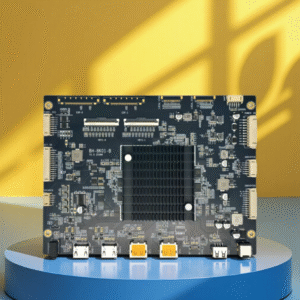

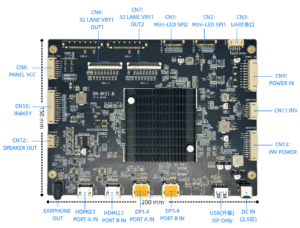

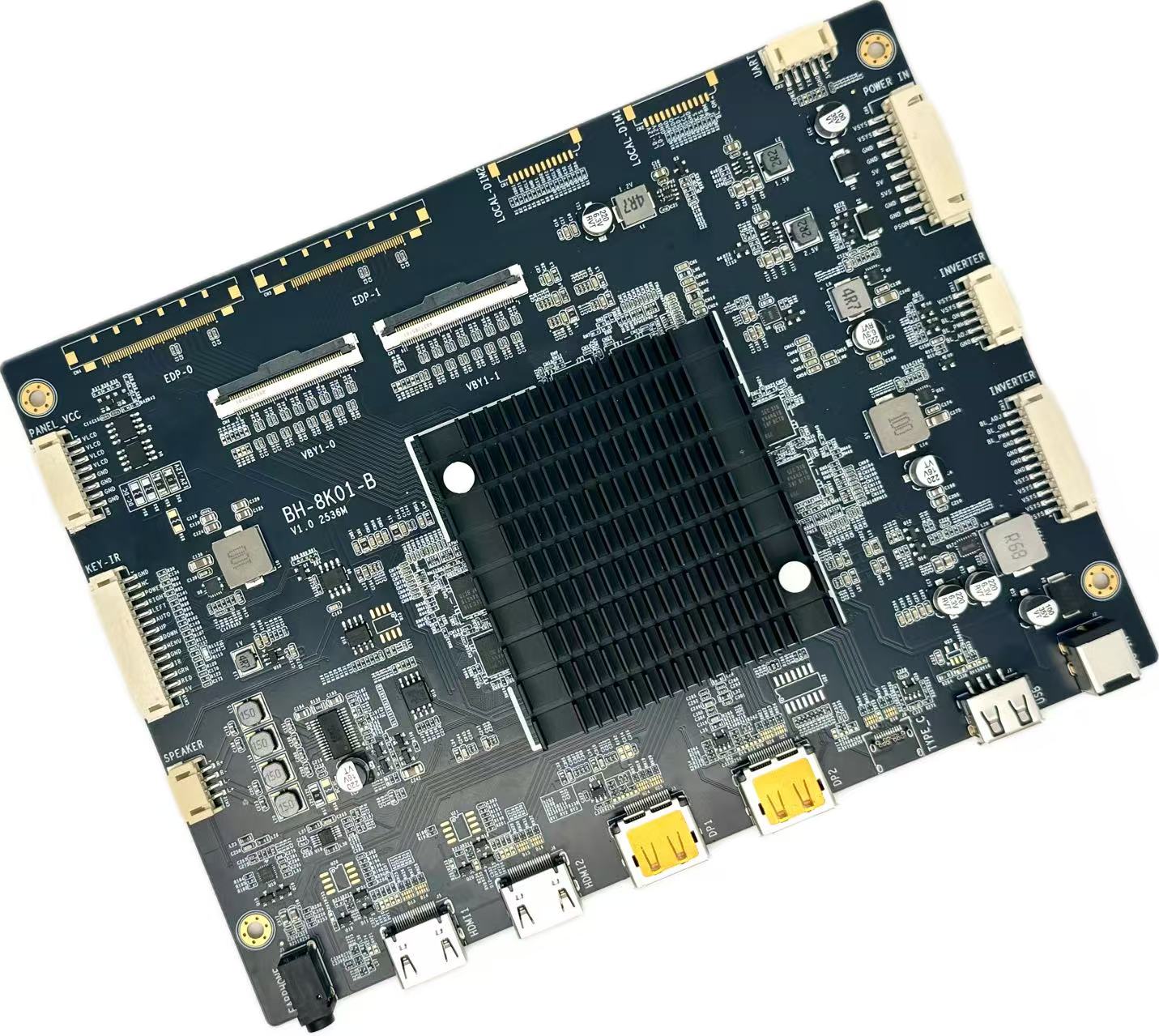

BH-8K01-B
BH-8K01-B is a driver board that supports a maximum display resolution of 8K for panels, and it also supports 4K HDR as well as PIP/POP picture-in-picture functions.
