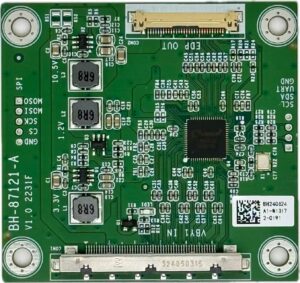

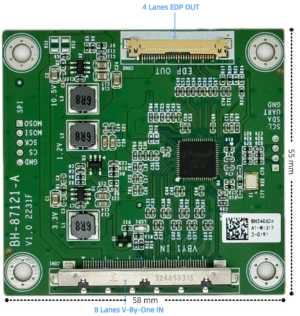

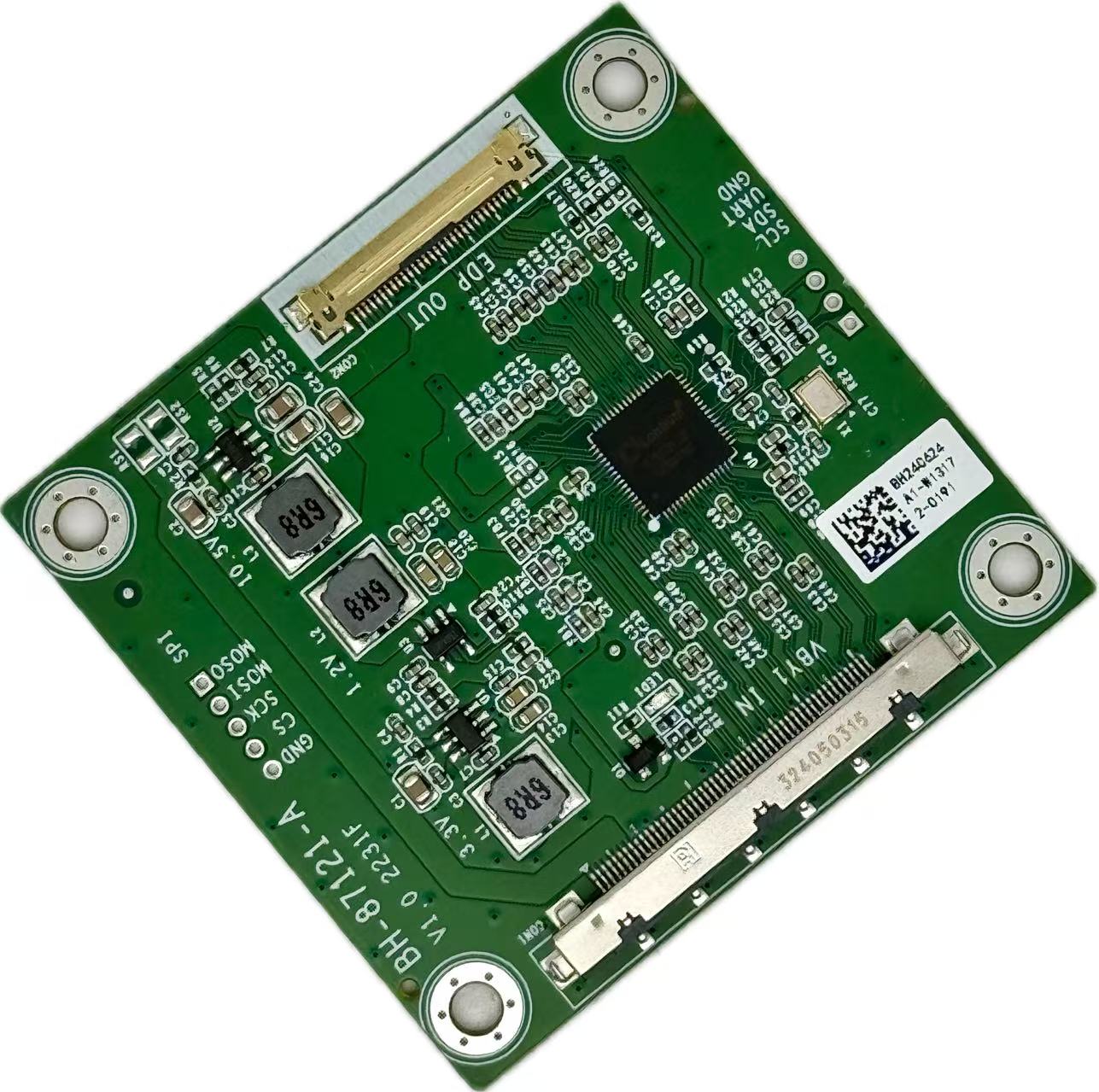

BH-87121-A

Parameter	Describe
Main chip	LT87121
V-by-one input	8Lane 3840x2160
EDP output	4Lane HBR2 3840x2160
power consumption	≤3W
Screen TCON power supply	12V or 3.3V-10V adjustable (DC-DC conversion)

BH-LV2H

BH-LV2H is a V-By-One and LVDS signal test board. It supports 8-channel V-by-One UHD 4K (3840×2160) signal input, as well as LVDS HD signal input with 2-port LVDS FHD (1920×1080) signal input, and then converts these signals into HDMI output.

BH-4KVH-D

BH-4KVH-D is a 4K V-by-One to HDMI signal conversion board. It supports 8-lane V-by-One input, drives large-size 8-lane V-by-One 4K 60Hz display panels via V-by-One bridging, and synchronously outputs HDMI signals with a maximum resolution of 4K@60Hz. If the downstream display device does not support 4K 60Hz, it will output 1080P 60Hz signals instead.

BH-7233-B

BH-7233-B is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

BH-7233-C

BH-7233-C is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

PS-6M38-A

The PS-6M38-A is a 2K-4K signal adapter board (1920*1080@60Hz→3840*2160Hz@60Hz conversion). It provides a standard Full-HD LVDS input interface (LG definition). After scaler image amplification and MEMC image processing, it generates a 4K ultra-high-definition V-by-One model and directly drives 4K@60Hz panels. The output supports 0 (single) and 2-zone 4K V-by-One signal formats.
