BH-7233-B

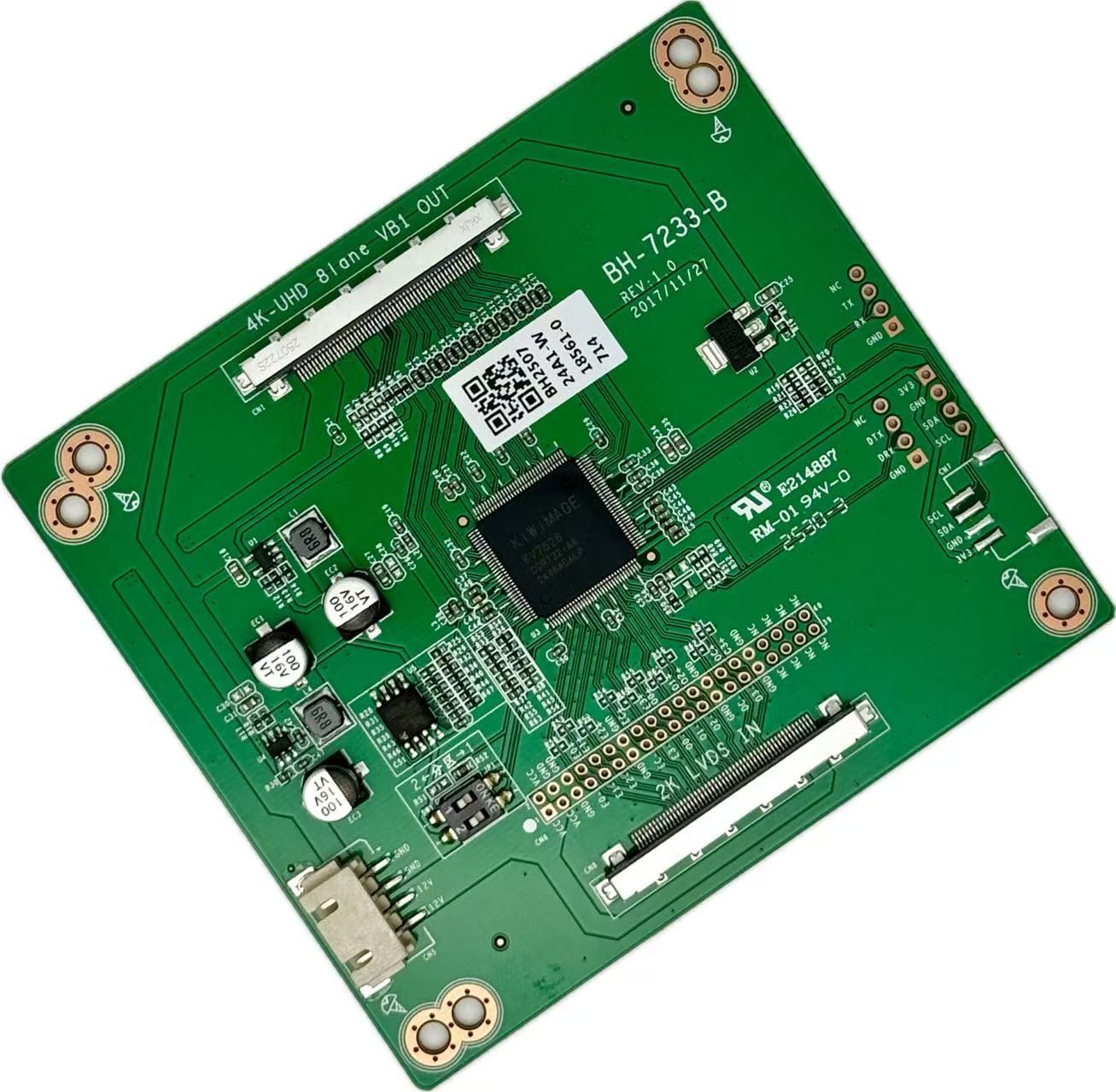

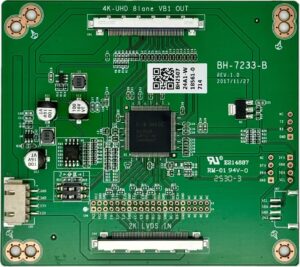

BH-7233-B is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

ENQUIRY!

Description

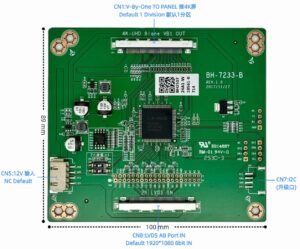

Parameter	Describe
Main chip	KV7626LV
LVDS input format	1920x1080 VESA
V-by-one output format	8Lane 1/2 partition (dip switch configuration)
Power input	Powered by V-by-one display cable or a separate 12V power supply
power consumption	≤3W
