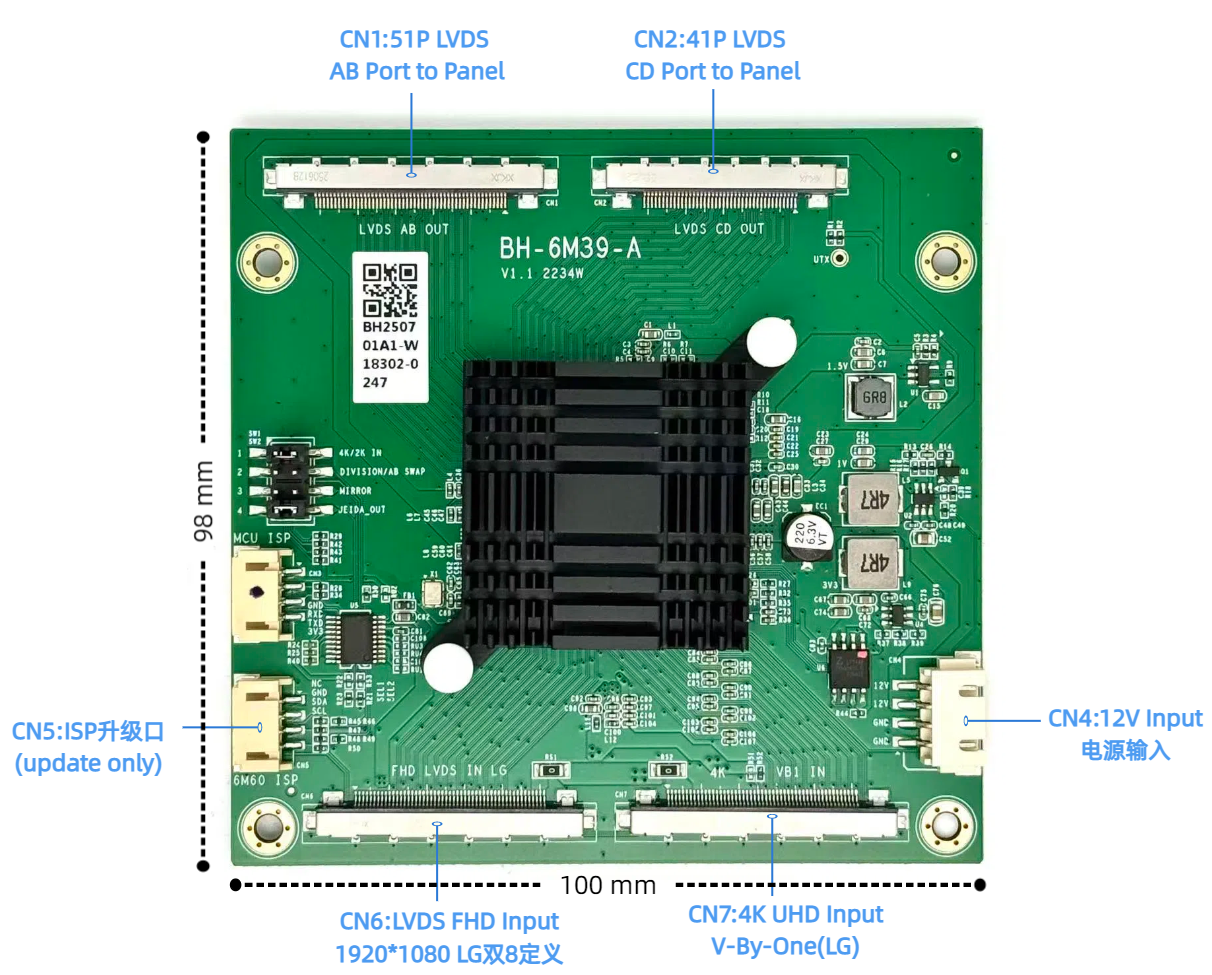

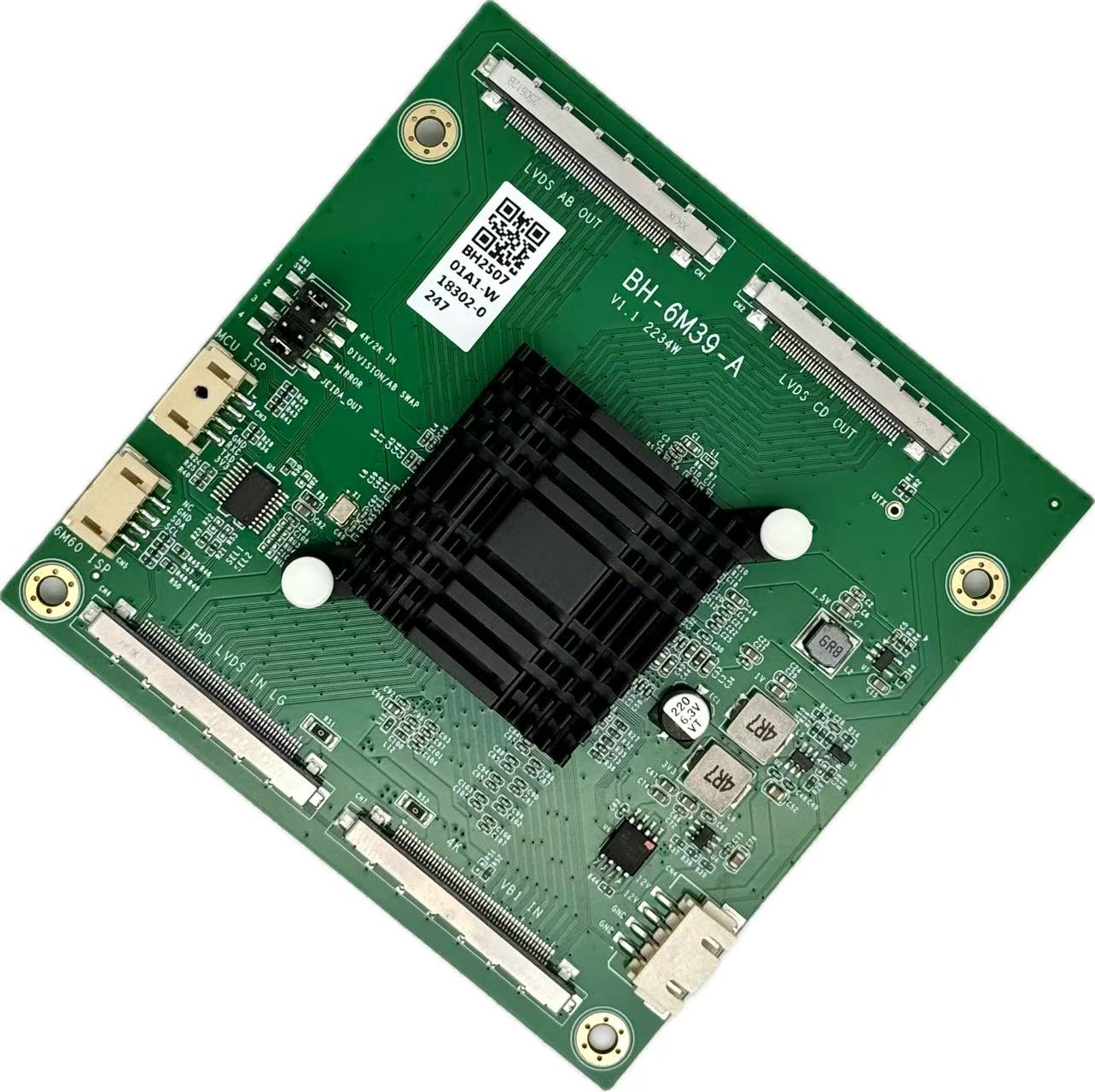

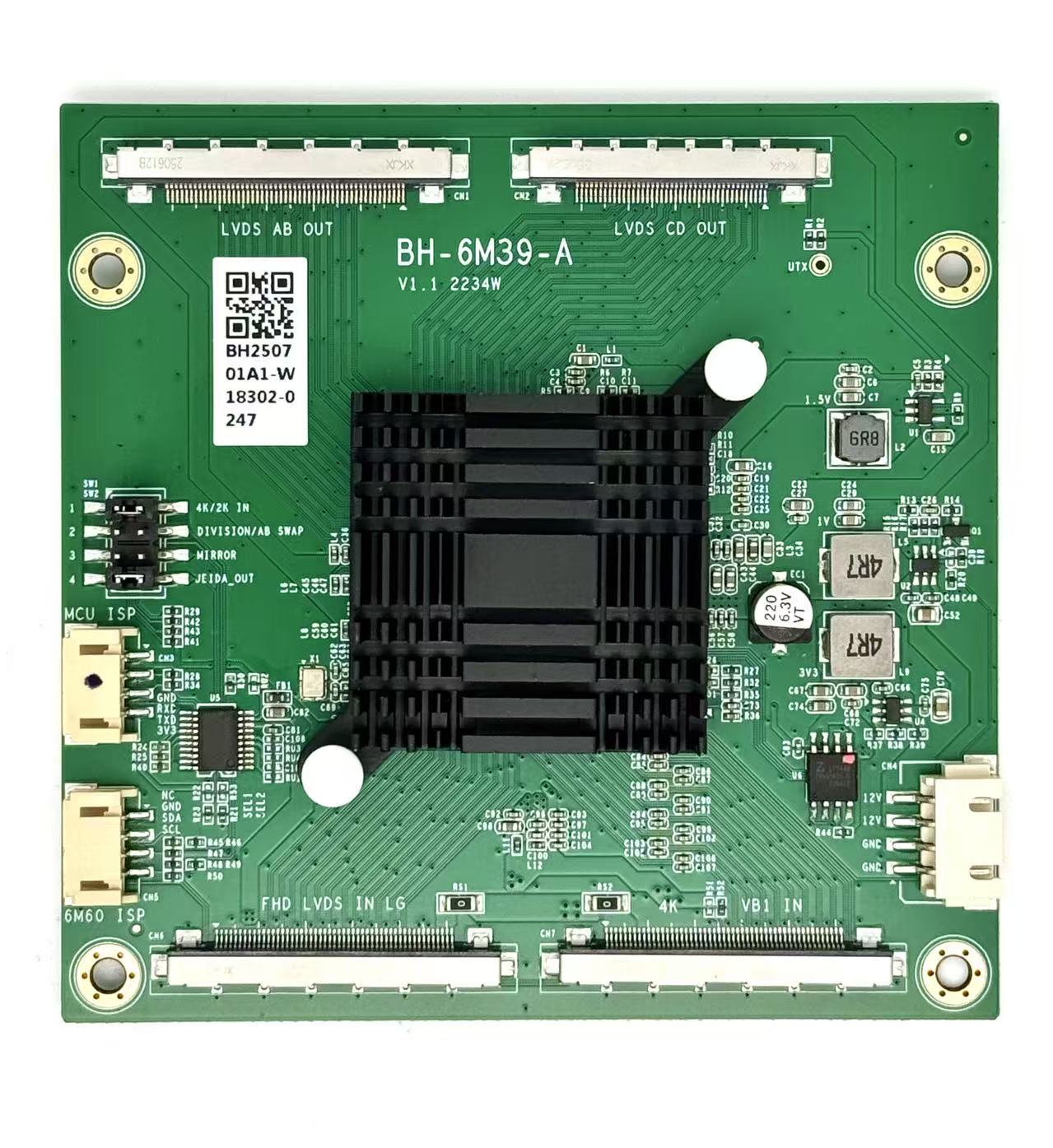

BH-6M39-A

Parameter	Describe
Main chip	MST6M60FxC
Panel Type	2/4-channel LVDS 1920x1080 60 or 120Hz
input format	LVDS:1920x1080 (JEIDA/VESA,8/10bit) V-by-one: 8Lane 1/2 partition 3840x2160
LVDS output format	2-channel 1920x1080 (JEIDA/VESA, 8/10 bit) 4-channel 1920x1080@120Hz (JEIDA/VESA)
MEMC	3D motion image compensation
power consumption	≤4.2W

BH-4KVH-E

BH-4KVH-E is a 4K V-by-One to HDMI signal conversion board. It supports 8-lane V-by-One input and 4K@60Hz HDMI output. If the downstream display device does not support 4K 60Hz, it will output 1080P@60Hz by default.

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

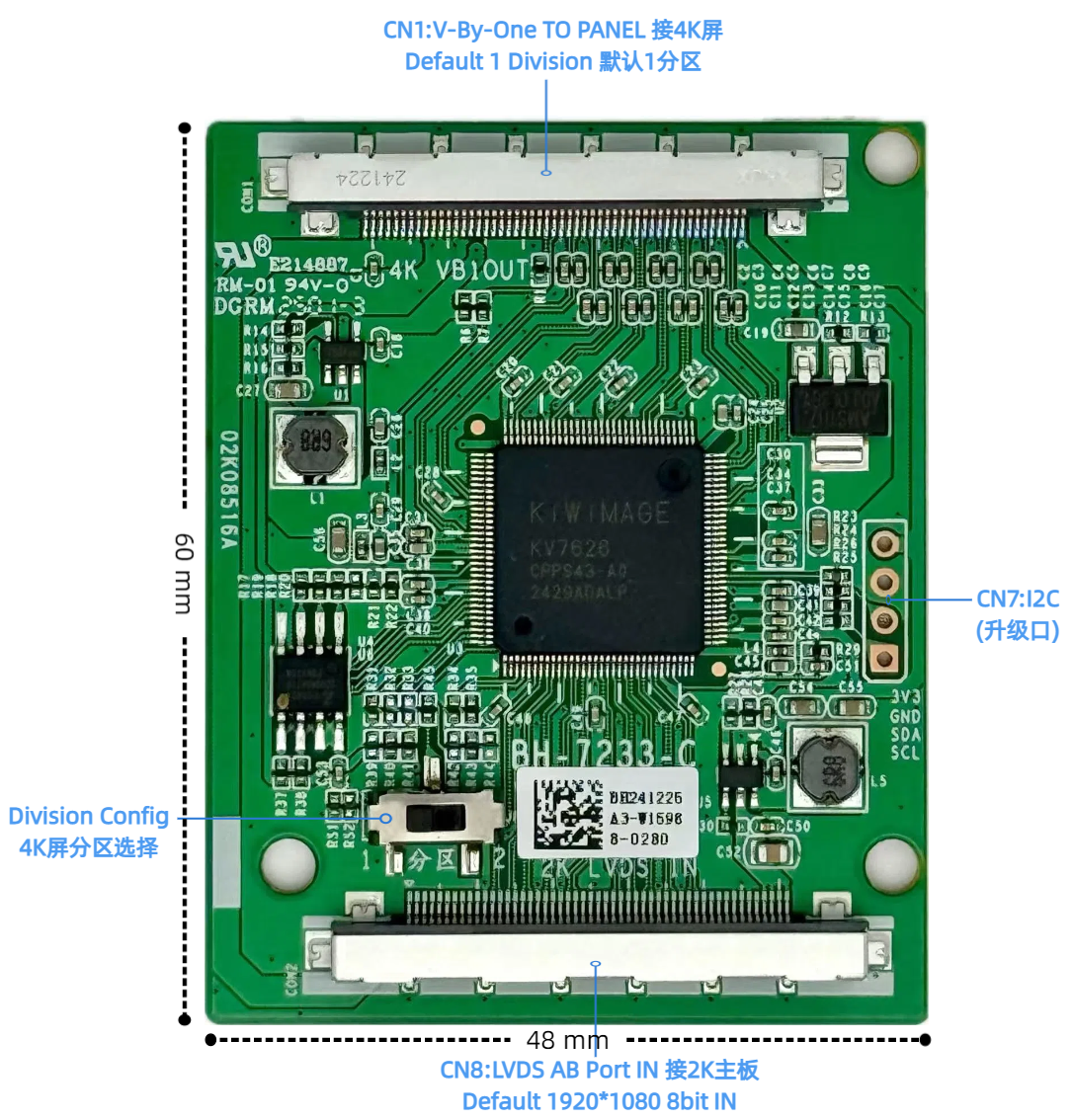

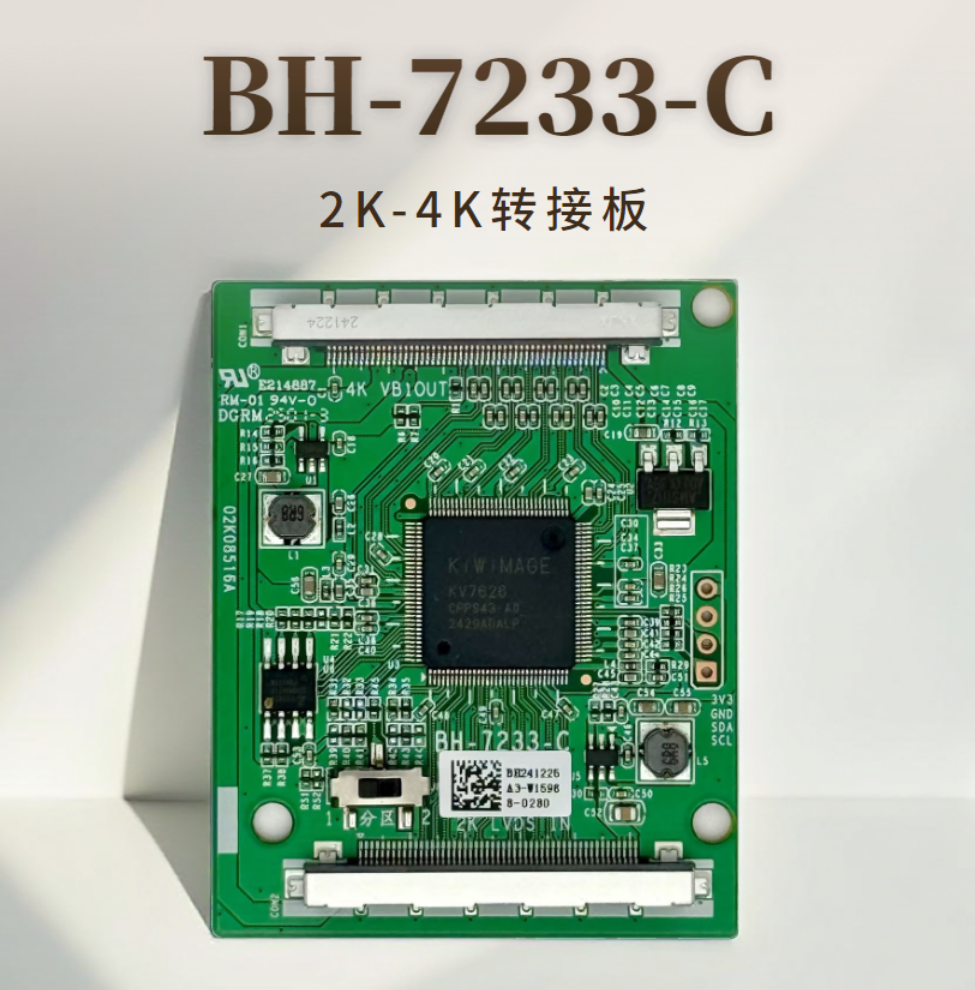

BH-7233-C

BH-7233-C is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

PS-6M60-C

The PS-6M60-C is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion). It provides a standard V-By-ONE input interface, generates 4K ultra-high-definition V-by-One signals through scaler image amplification and MEMC image processing, and directly drives 4K@120Hz panels. It supports most 4K panels on the market and 4K OLED screens.

BH-4KVH-B

The BH-4KVH-B is a 4K V-By-One to HDMI signal converter board that supports 8 lane V-by-One input, drives 8 lane V-By-One 4K 60Hz large-size panels through V-By-One bridging, and simultaneously outputs HDMI signals.
