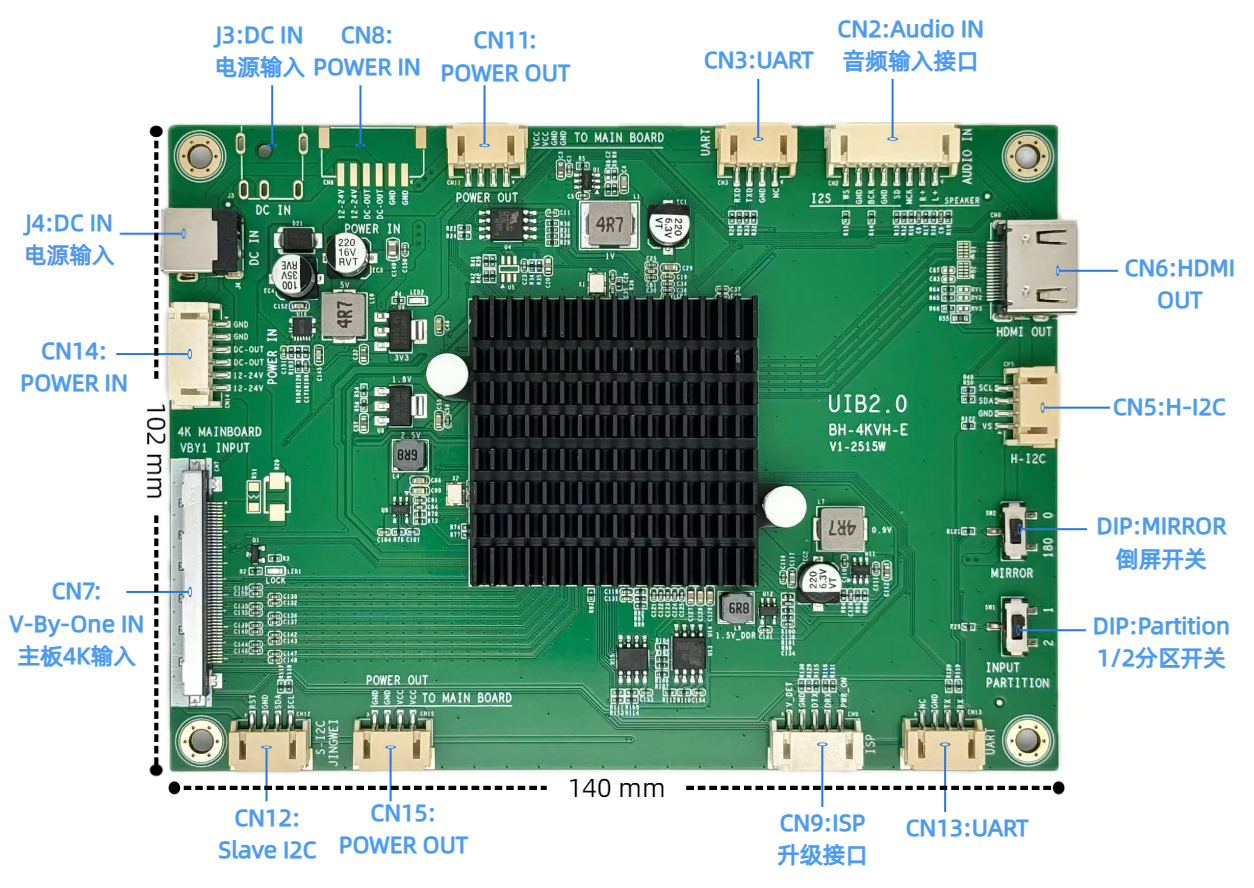

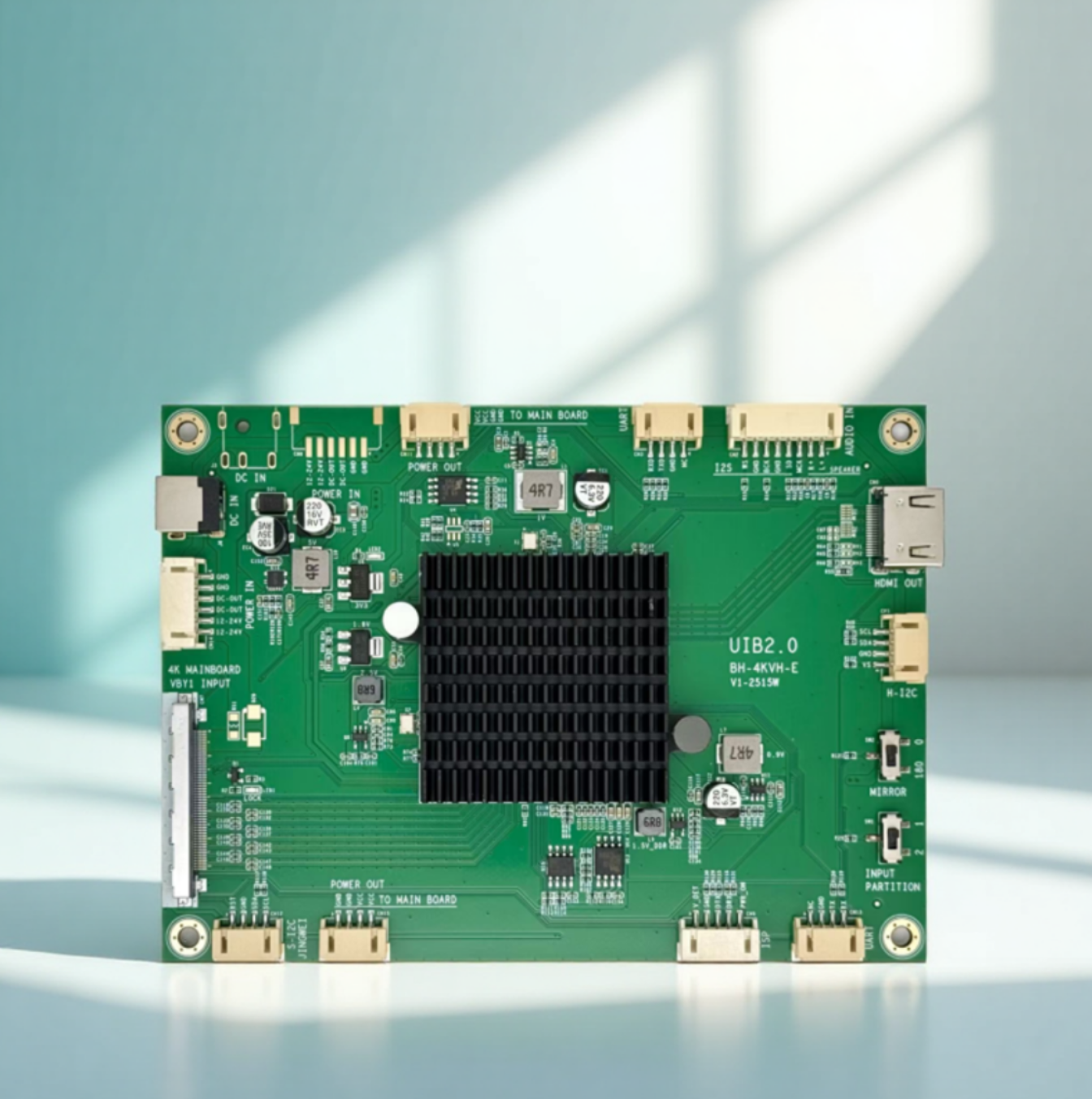

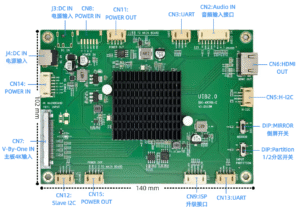

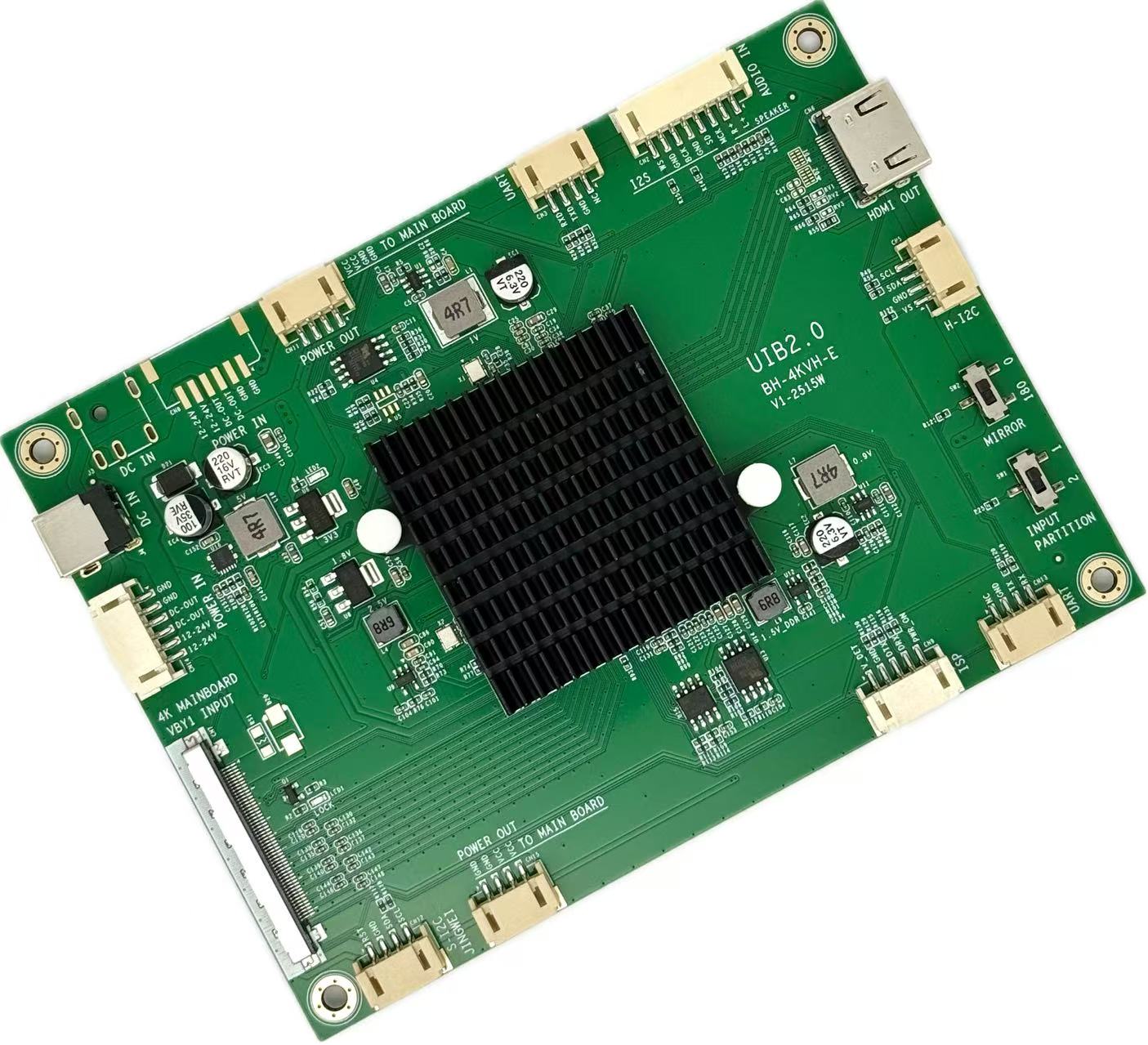

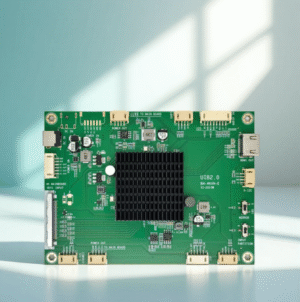

BH-4KVH-E

Parameter	Describe
Main chip	NOVATEK
Target Applications	Motherboard tester, TV R&D testing platform
Video signal input	V-by-one: 8 Lane 3840*2160 1/2 partition
audio input	Analog audio, I2S
Inverted Mirror	The dip switch can be configured to rotate 180 °
Power input	12-24V wide voltage input
Power consumption	<5W

BH-6M80R

BH-6M80R is a 4K screen cable extender, designed for extending 4K V-by-One signals. It is suitable for applications requiring ultra-long V-by-One screen cables, such as electronic blackboards, and features strong signal compatibility.

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

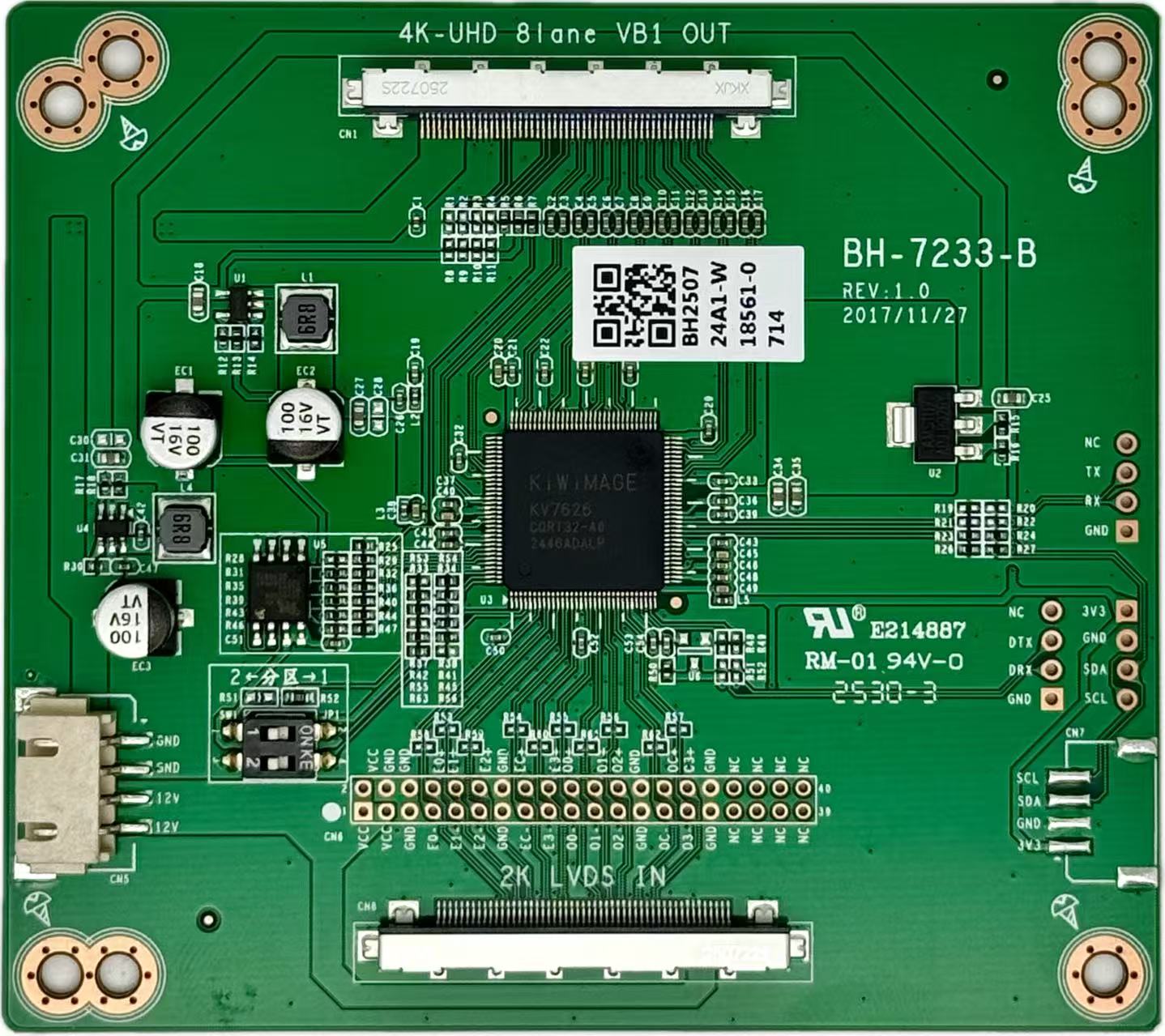

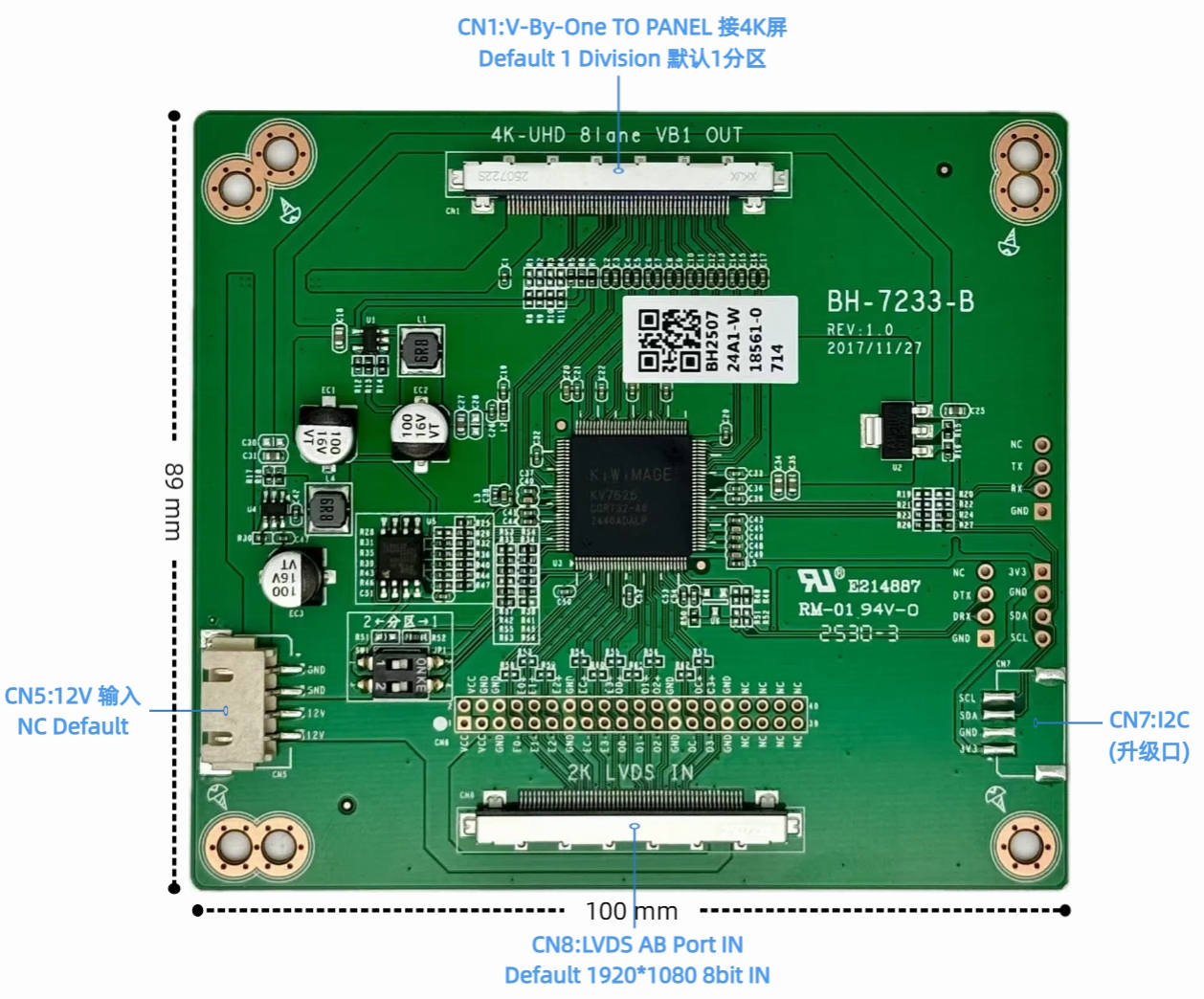

BH-7233-B

BH-7233-B is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

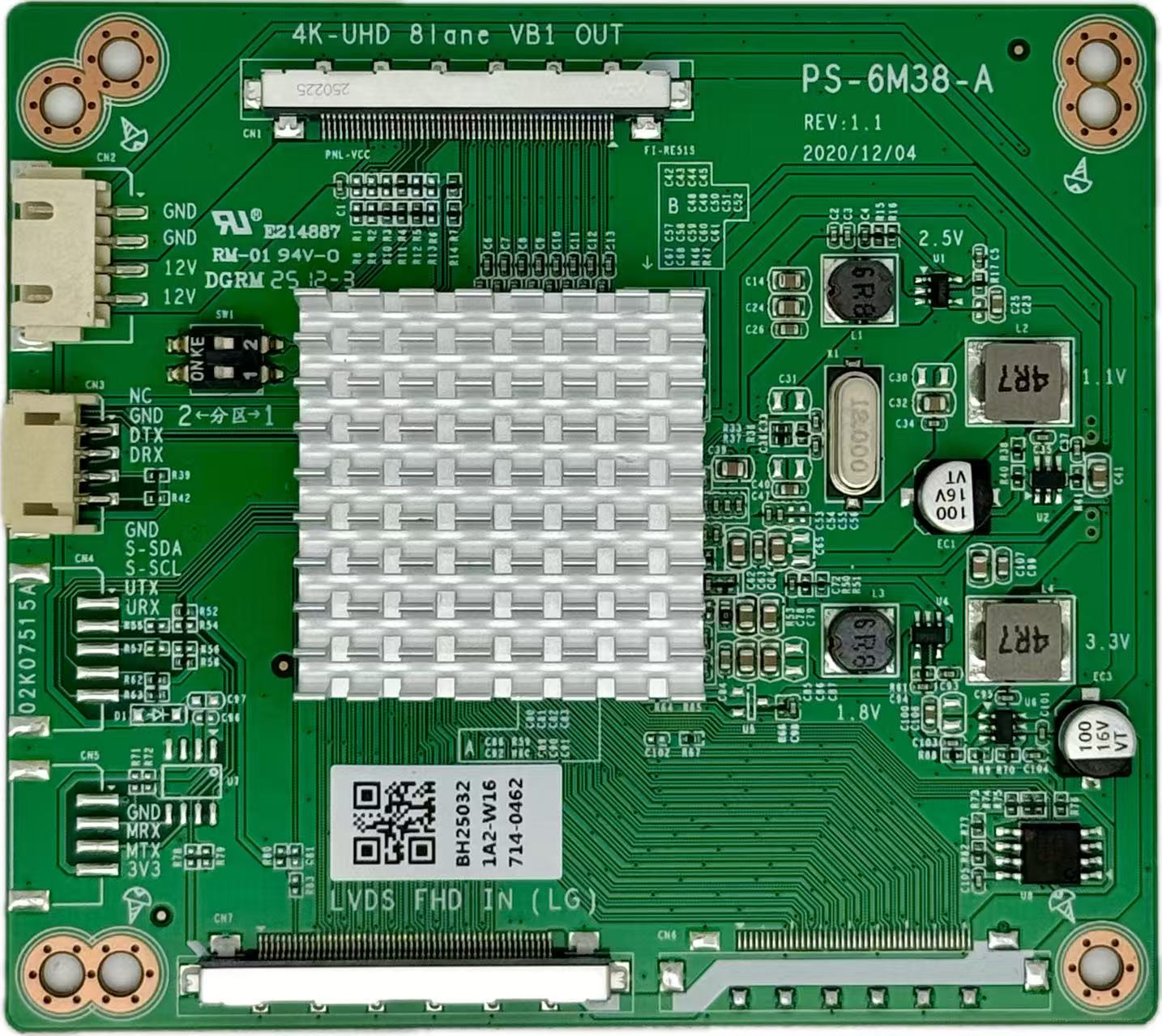

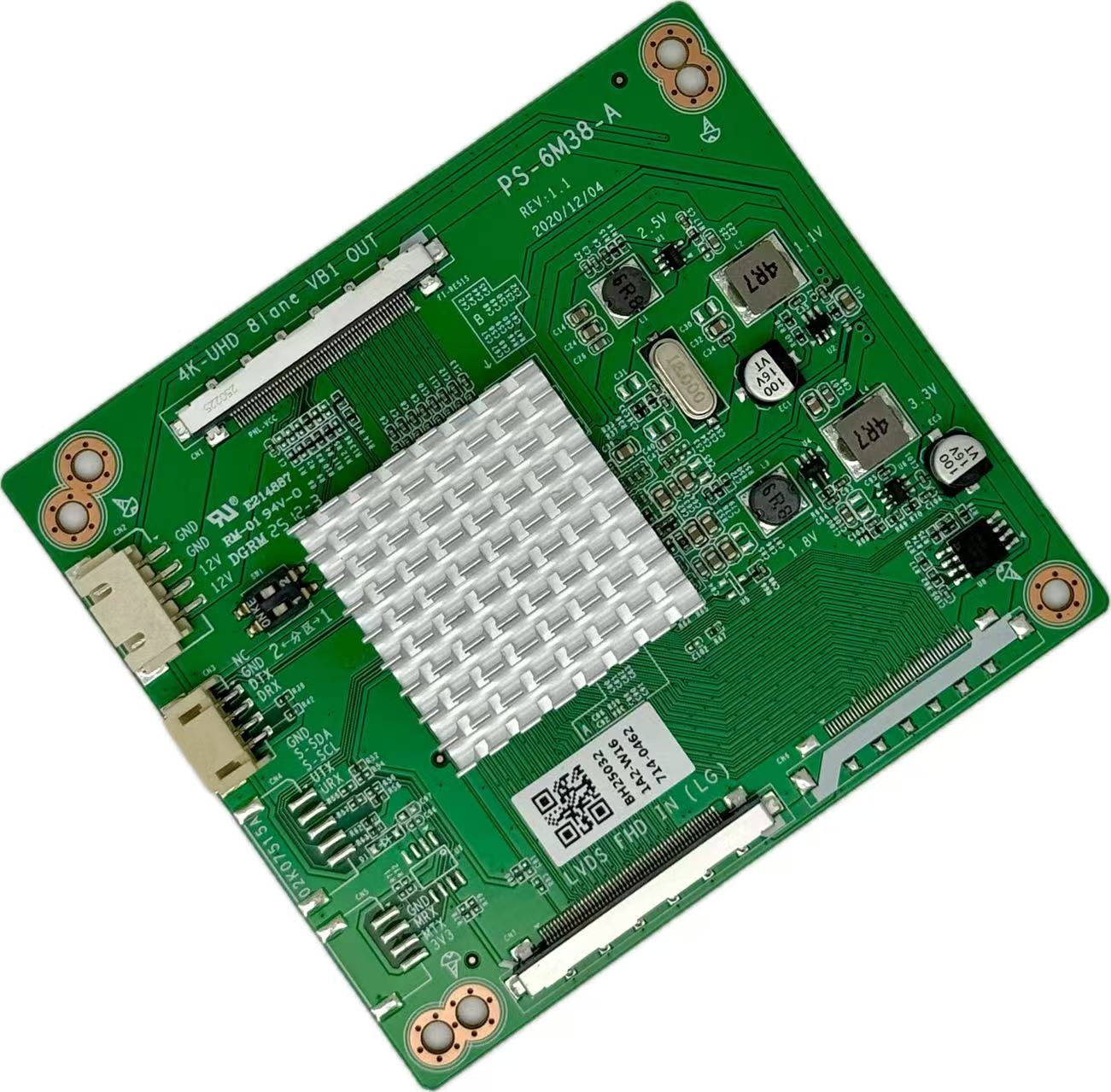

PS-6M38-A

The PS-6M38-A is a 2K-4K signal adapter board (1920*1080@60Hz→3840*2160Hz@60Hz conversion). It provides a standard Full-HD LVDS input interface (LG definition). After scaler image amplification and MEMC image processing, it generates a 4K ultra-high-definition V-by-One model and directly drives 4K@60Hz panels. The output supports 0 (single) and 2-zone 4K V-by-One signal formats.

BH-6M60-H

The BH-6M60-H is a multifunctional display driver signal adapter board. Its frame buffer operation is compatible with the screen parameter inputs of various motherboards, ensuring stable fixed frame rate output signals. Input and output signal formats can be easily configured using jumpers. It can also be used for 16-lane V-by-one 4K-120Hz signal detection. When paired with a V-by-one to HDMI converter board, it can be used to build a simple TV motherboard R&D and testing tool.
