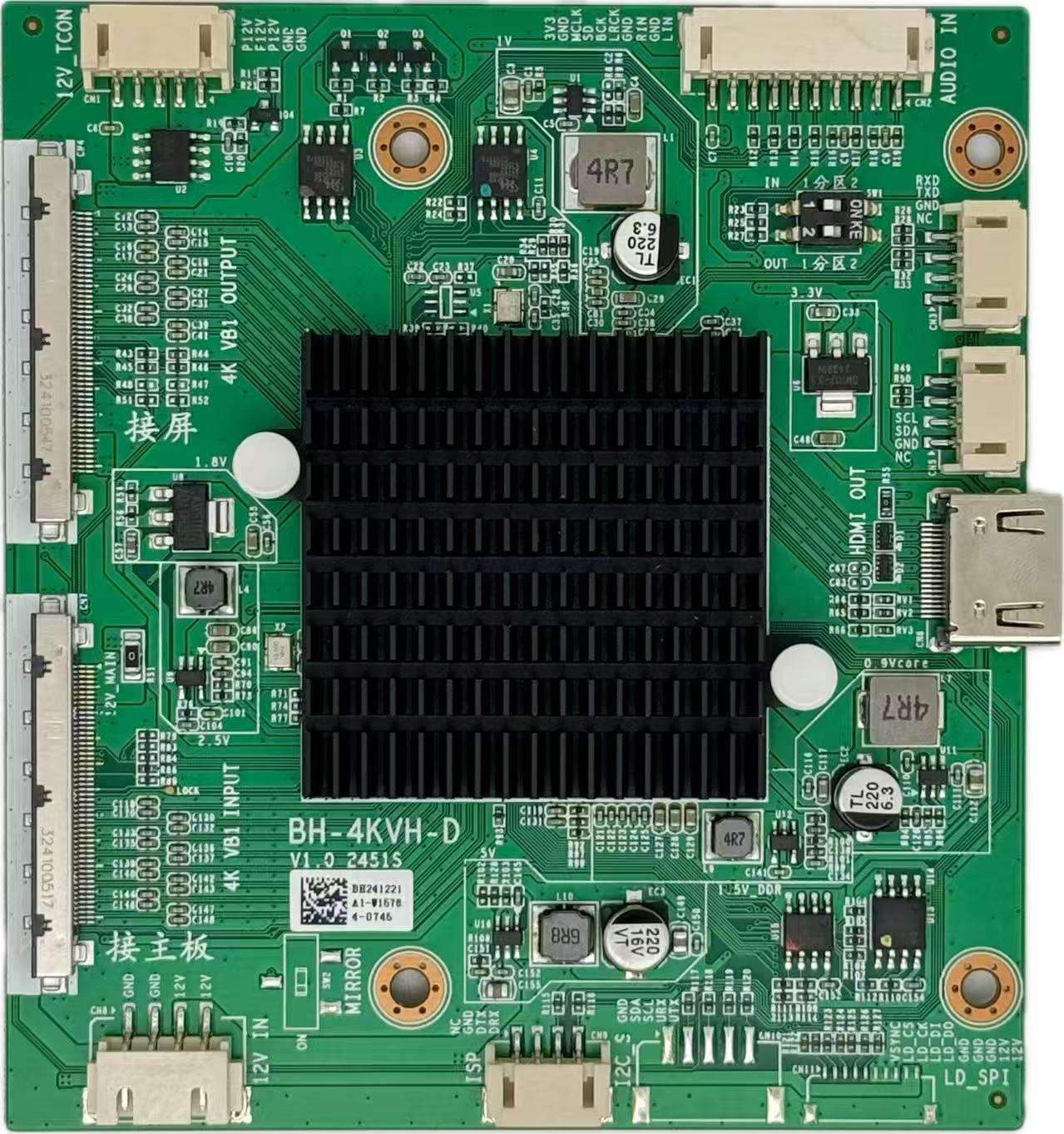

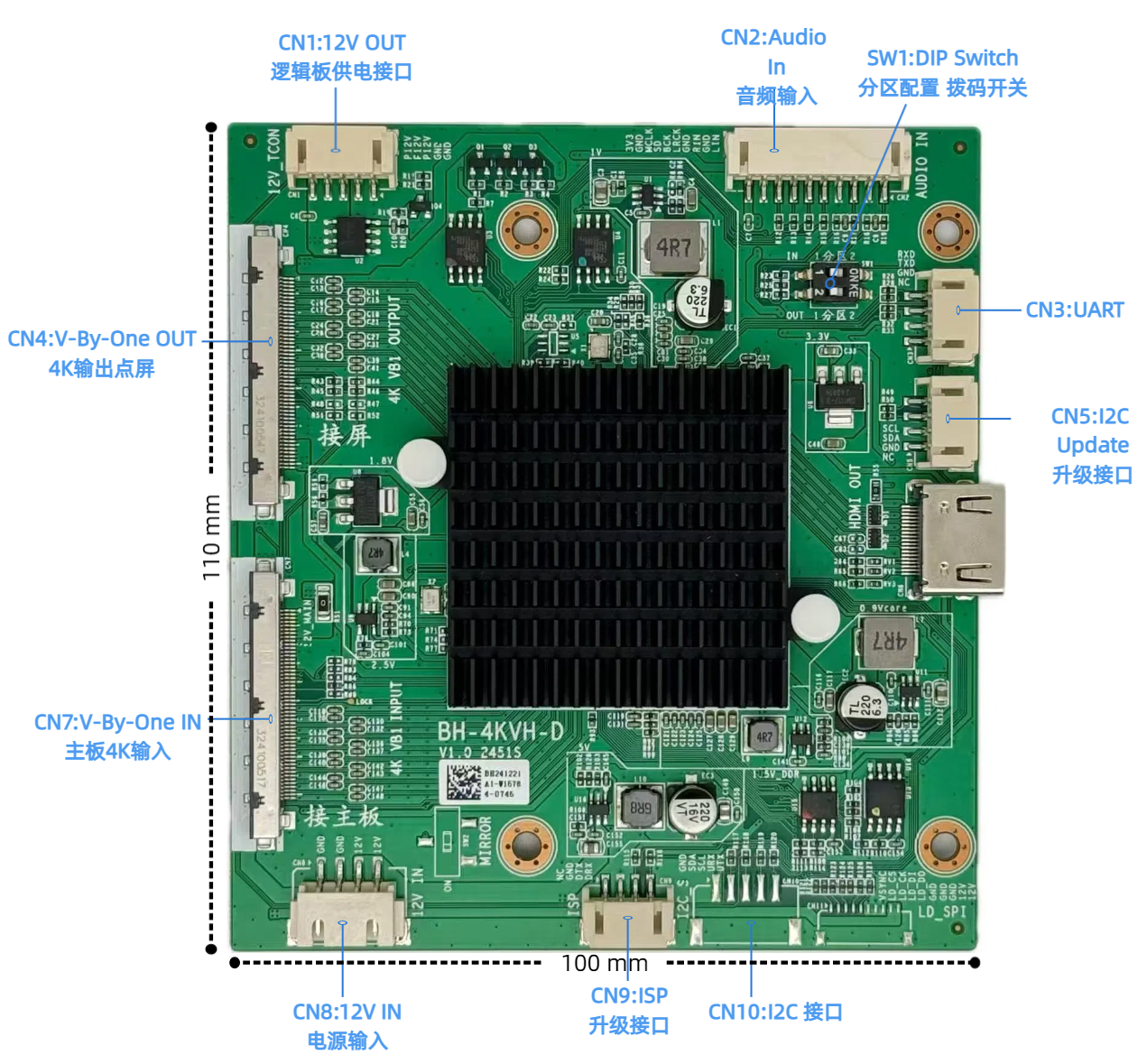

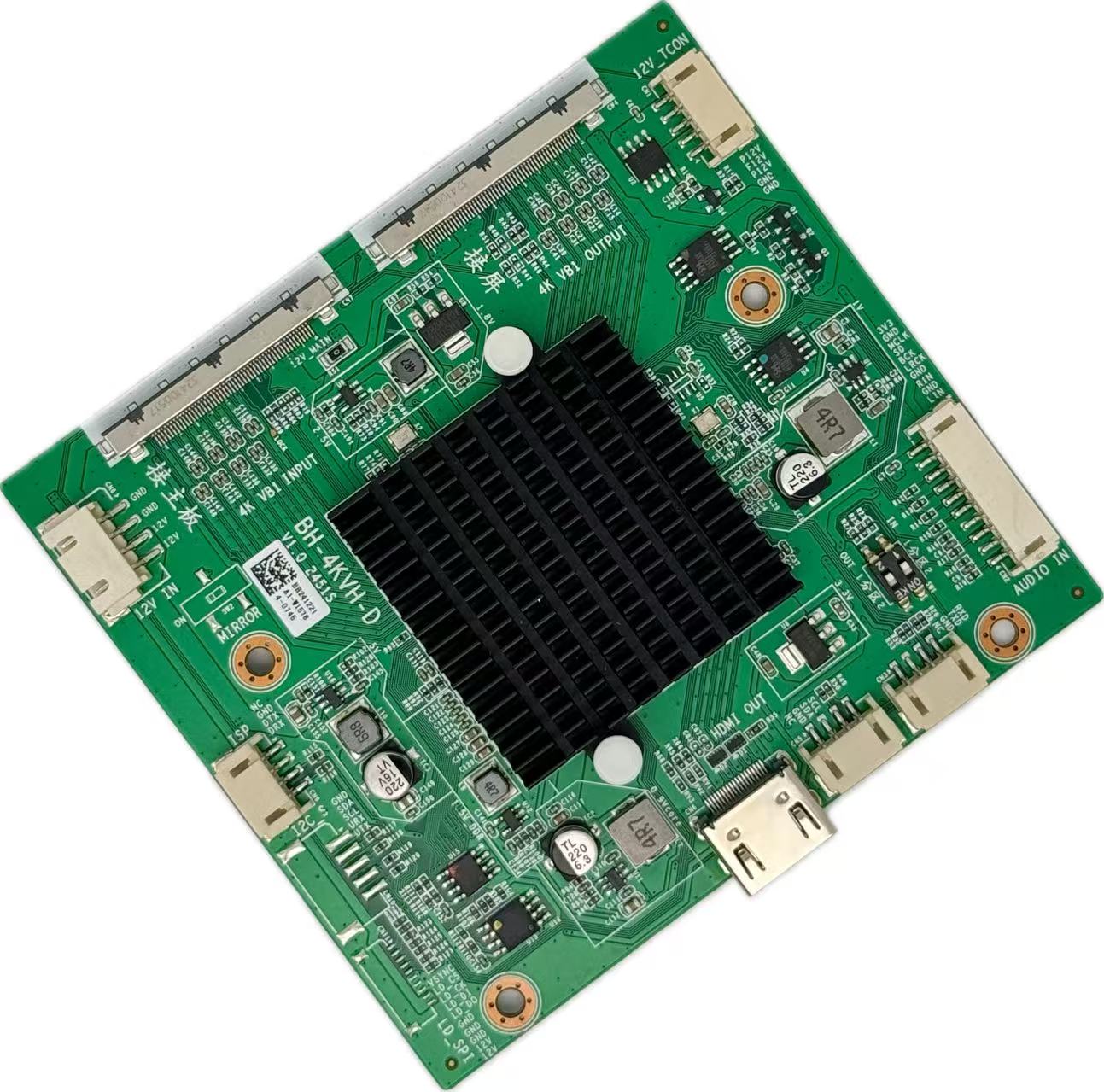

BH-4KVH-D

Parameter	Describe
Main chip	NOVATEK
Target Applications	Educational whiteboards, large-screen conference displays,Motherboard Tester
Panel Type	8 lane V-By-One 4K UHD@60Hz 1 or 2 division Format; Support single partition or 2-partition

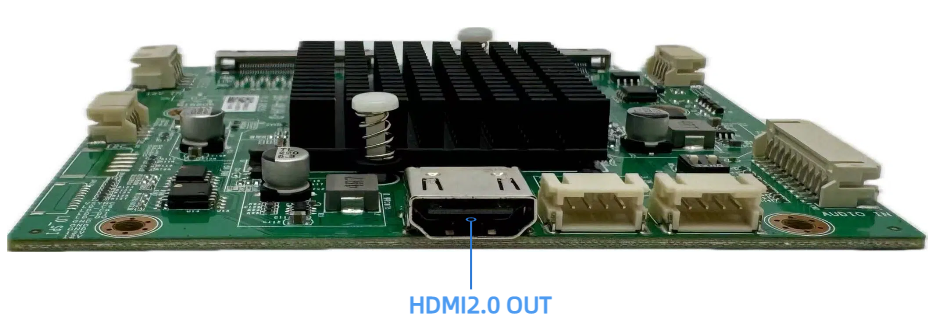

HDMI OUT	3840x2160,1920x1080
Audio input	Analog audio, I2S
Power input	Powered by V-by-one display cable or a separate 12V power supply
Power consumption	<5W

BH-LV2H

BH-LV2H is a V-By-One and LVDS signal test board. It supports 8-channel V-by-One UHD 4K (3840×2160) signal input, as well as LVDS HD signal input with 2-port LVDS FHD (1920×1080) signal input, and then converts these signals into HDMI output.

BH-LV02-B

BH-LV02-B is a conversion board with LVDS signal extension and duplication functions. It can split one input signal into two outputs, enabling a single mainboard to drive two LVDS screens—making it widely applicable for ultra-thin dual-sided display requirements.

BH-6M80S

BH-6M80S is a V-By-One signal splitter conversion board. Through V-By-One signal duplication and redistribution, it enables one content display mainboard to drive two 4K V-By-One screens simultaneously—realizing 4K dual-screen synchronous display. It can also function to extend the transmission distance of V-By-One signals.

BH-7233-B

BH-7233-B is a 2K-to-4K signal conversion board (supporting 1920×1080@60Hz → 3840×2160@60Hz conversion). It features a standard Full-HD LVDS input interface (as defined by LG) and processes signals through image enhancement technologies such as Scaler-based upscaling. The board generates 4K ultra-high-definition V-By-One signals, which can directly drive 4K@60Hz display panels. For output, it supports 1-zone and 2-zone 4K V-By-One signal formats.

PS-6M60-C

The PS-6M60-C is a 4K@60Hz-4K@120Hz signal adapter board (3840*2160@60Hz→3840*2160Hz@120Hz conversion). It provides a standard V-By-ONE input interface, generates 4K ultra-high-definition V-by-One signals through scaler image amplification and MEMC image processing, and directly drives 4K@120Hz panels. It supports most 4K panels on the market and 4K OLED screens.
