| Parameter | Describe |
|---|---|
| Main chip | HT7315 |
| Target Applications | 4K Monitor, Educational Whiteboard, Medical Monitor |
| Panel Type | V-by-one or EDP (4/8LaneHBR2) |
| Panel resolution | 3840*2160 |
Power input | Single 12V Power Supply or Multi-channel Power Supply |
| Screen TCON power supply | 3.3V - 12V |
| Picture in Picture | Support POP,PIP |
| Local Dimming | Mini-LED Local Dimming |
| Automatic Port | Automatic Port Signal Recognition,Seamless Switching |
| Audio amplifier | 2x8Ω10W |

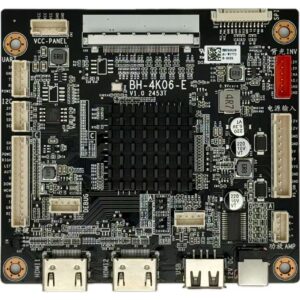

BH-4K06-E

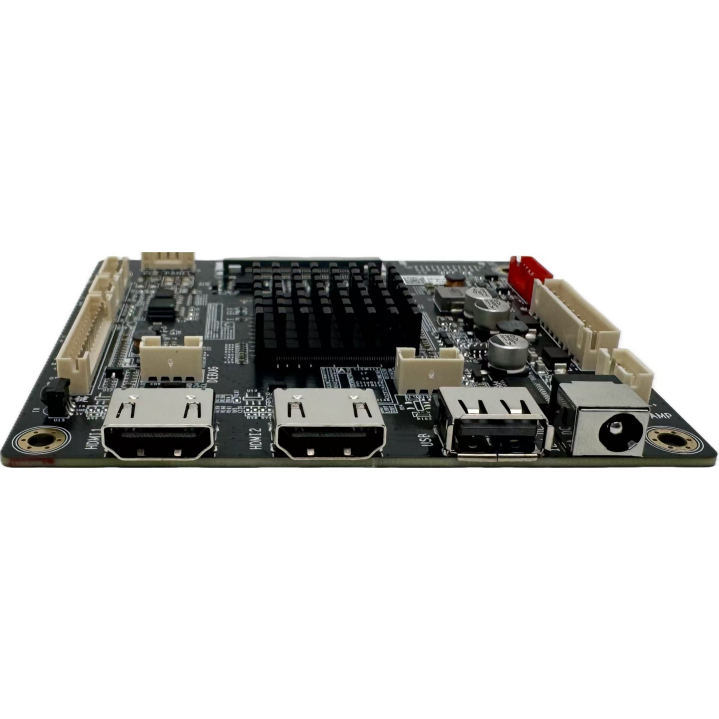

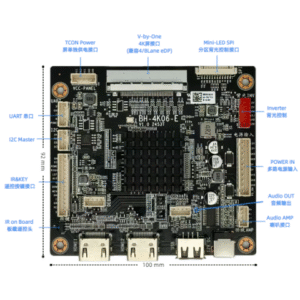

BH-4K06-E is a 4K display driver board, with 8 lane v-by-one or 4/8 lane eDP output for 4K@60Hz panel, it has 2 HDMI2.0 port input which support HDR,CEC。When using pin to pin higher level chip,it supports up to 5K zones mini-LED local-dimming and PIP / 2 windows PBP display.
BH-4K06-E supports single 12V power supply or multiple power supplies, and it’s bootup time is less than 2.5 seconds, is suitable for digital signage application. It supports RS232 serial communication with external DB9-UART module.
