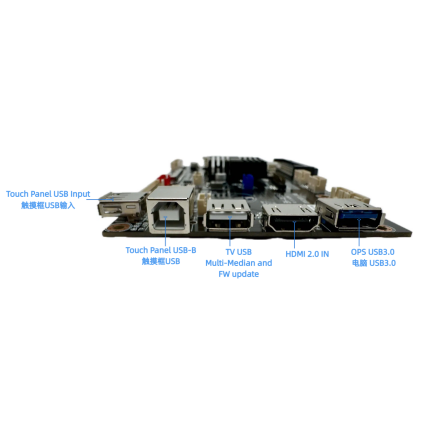

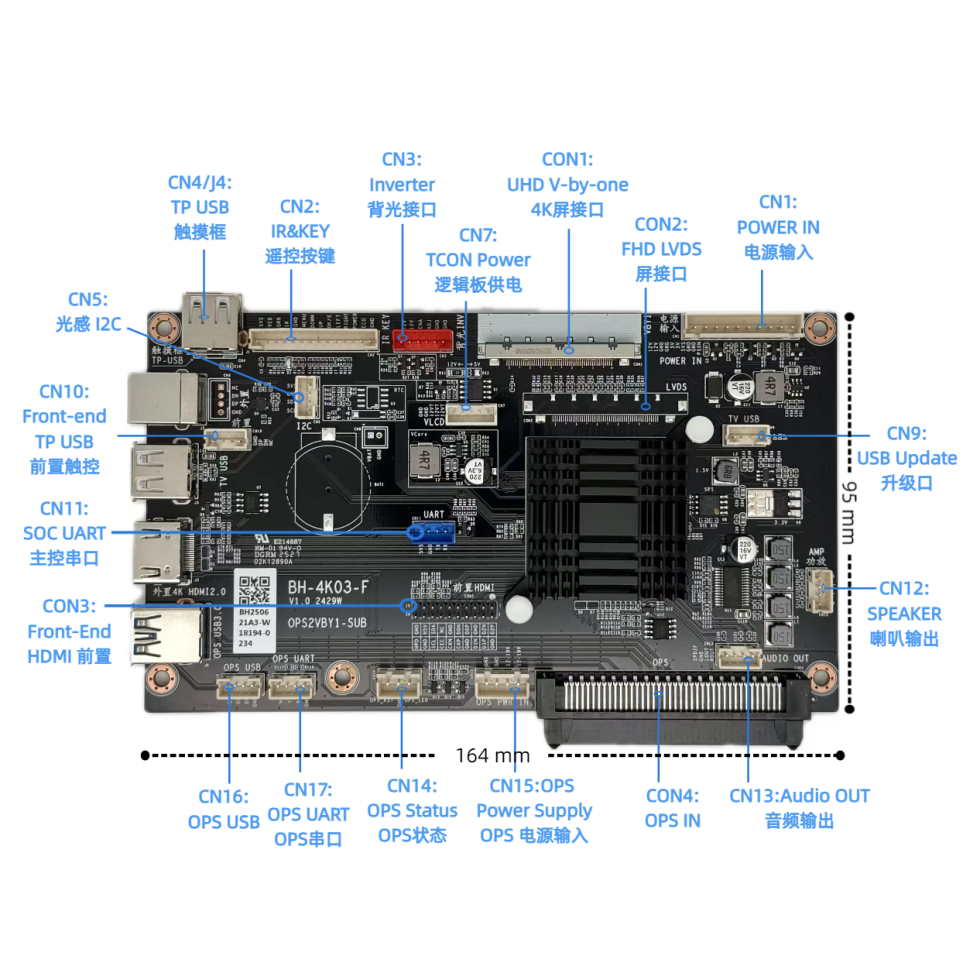

BH-4K03-F

The BH-4K03-F is a multifunctional 4K OPS display board that supports intelligent port switching, infrared touch frame intelligent switching, and one-touch power on/off for OPS computers. It is commonly used in commercial displays such as educational whiteboards, digital signage, and electronic interactive whiteboards.

ENQUIRY!

Description

Parameter	Describe
Main chip	MSD3683QTA
Target Applications	4K display ; educational machine ; digital signage ; electronic interactive whiteboard
Panel Type	8 lane V-By-One 4K UHD@60Hz; LVDS FHD
Panel resolution	38402160 ; 19201080
Power input	12V, 5V, 5VSB (5V standby) or Single 12V ( large size and single 12V power supply compatible )
Screen TCON power supply	12V
Touch Menu	Support gesture touch menu, 43bytes/67bytes protocol
Touch Frame	Port auto-negotiation
Scalable functionality	RTC clock
Audio amplifier	2x8Ω10W

RELATED PRODUCTS

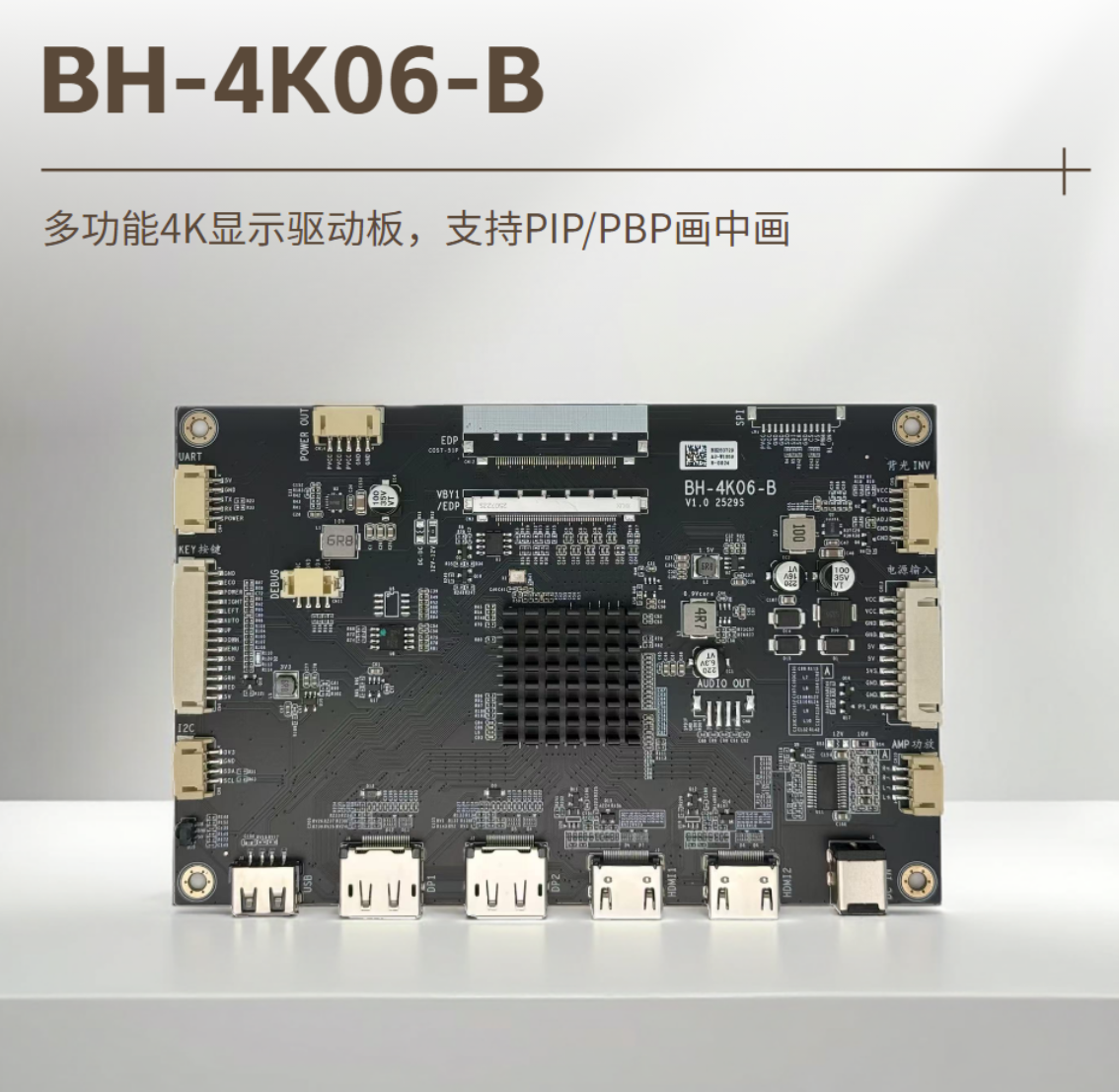

BH-4K06-B

BH-4K06-B is a display driver board that supports 2.5K@165Hz or 3K1K@165Hz panels, and is also compatible with HDR, VRR, and PIP/PBP (Picture-in-Picture/Picture-by-Picture) functions.

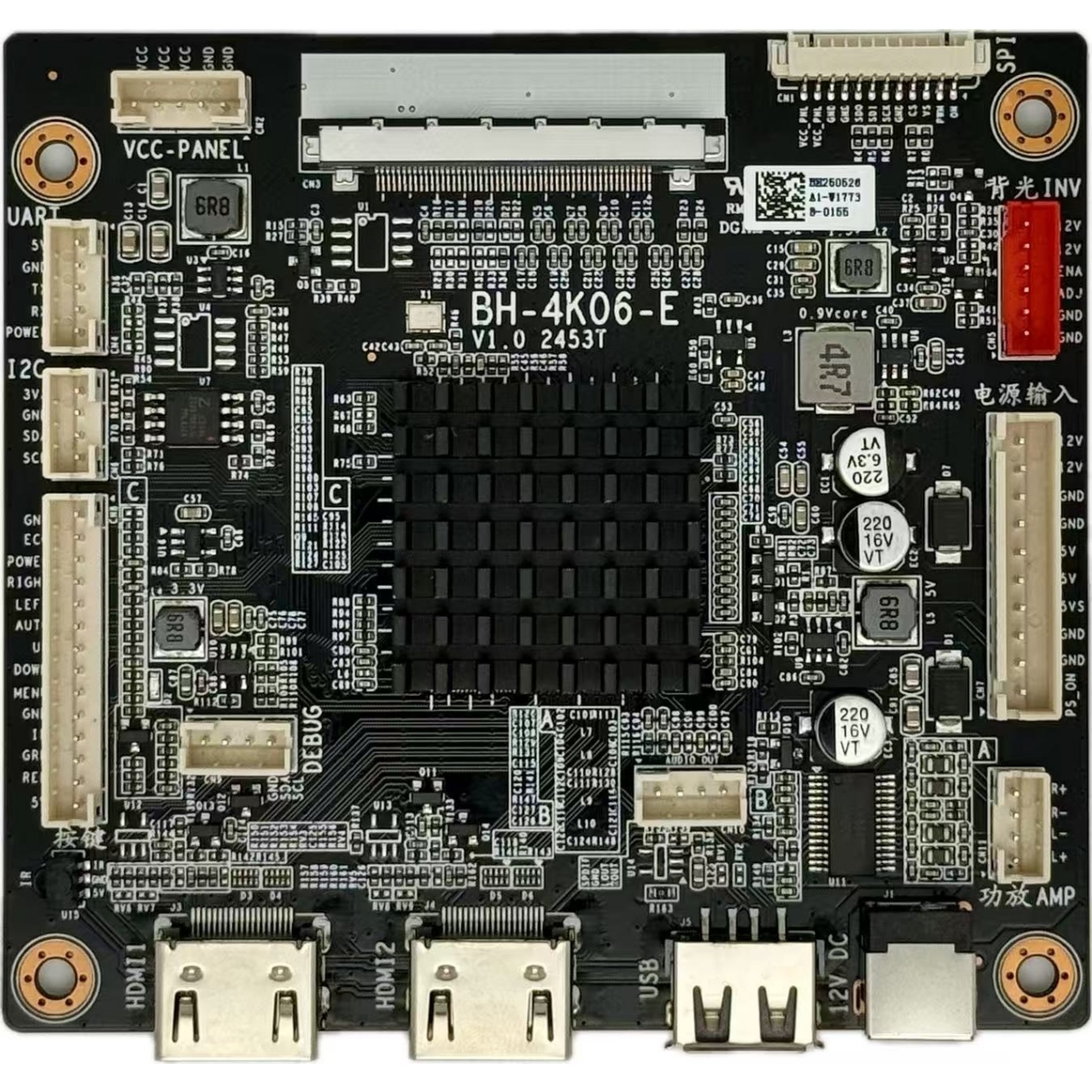

BH-4K06-E

BH-4K06-E is a 4K display driver board, with 8 lane v-by-one or 4/8 lane eDP output for 4K@60Hz panel, it has 2 HDMI2.0 port input which support HDR,CEC。When using pin to pin higher level chip,it supports up to 5K zones mini-LED local-dimming and PIP / 2 windows PBP display. BH-4K06-E supports single 12V power supply or multiple power supplies, and it’s bootup time is less than 2.5 seconds, is suitable for digital signage application. It supports RS232 serial communication with external DB9-UART module.

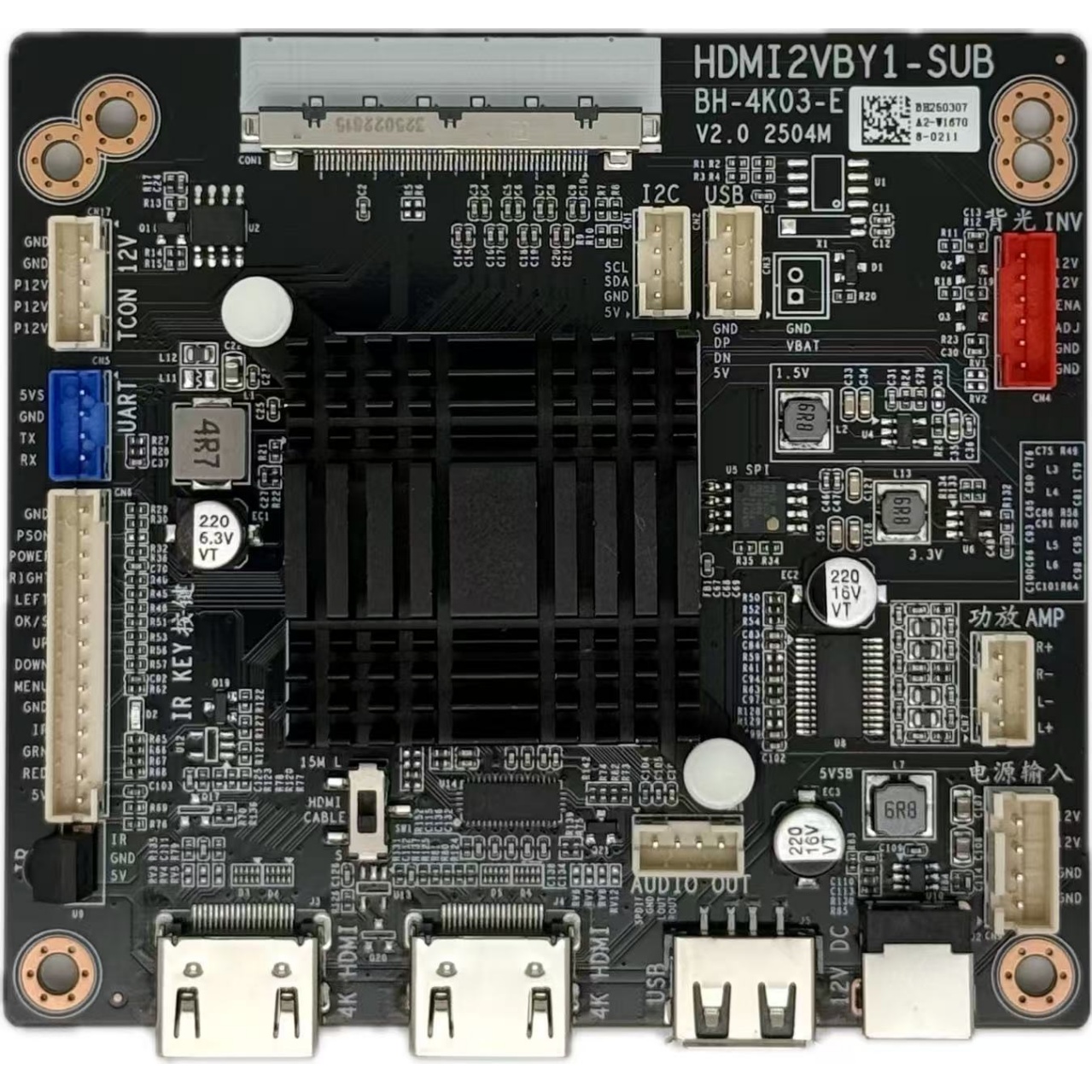

BH-4K03-E

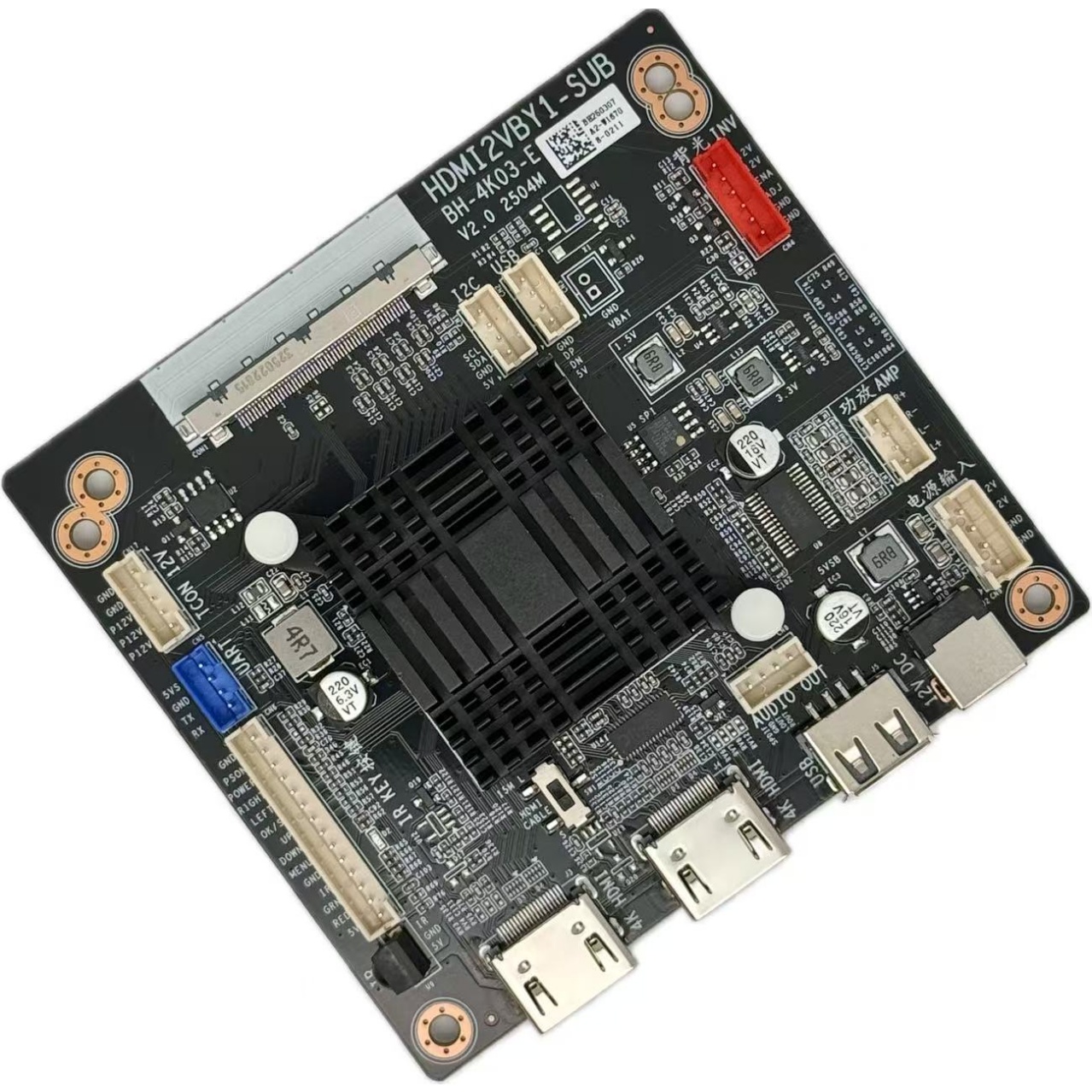

The BH-4K03-E2.0 is a versatile 4K display board capable of directly driving large-format 8-lane V-by-one 4K 60Hz panels. It supports two HDMI 2.0 inputs (supporting 4K pixel-by-pixel display) and 4K multimedia playback, making it ideal for commercial displays such as digital signage.

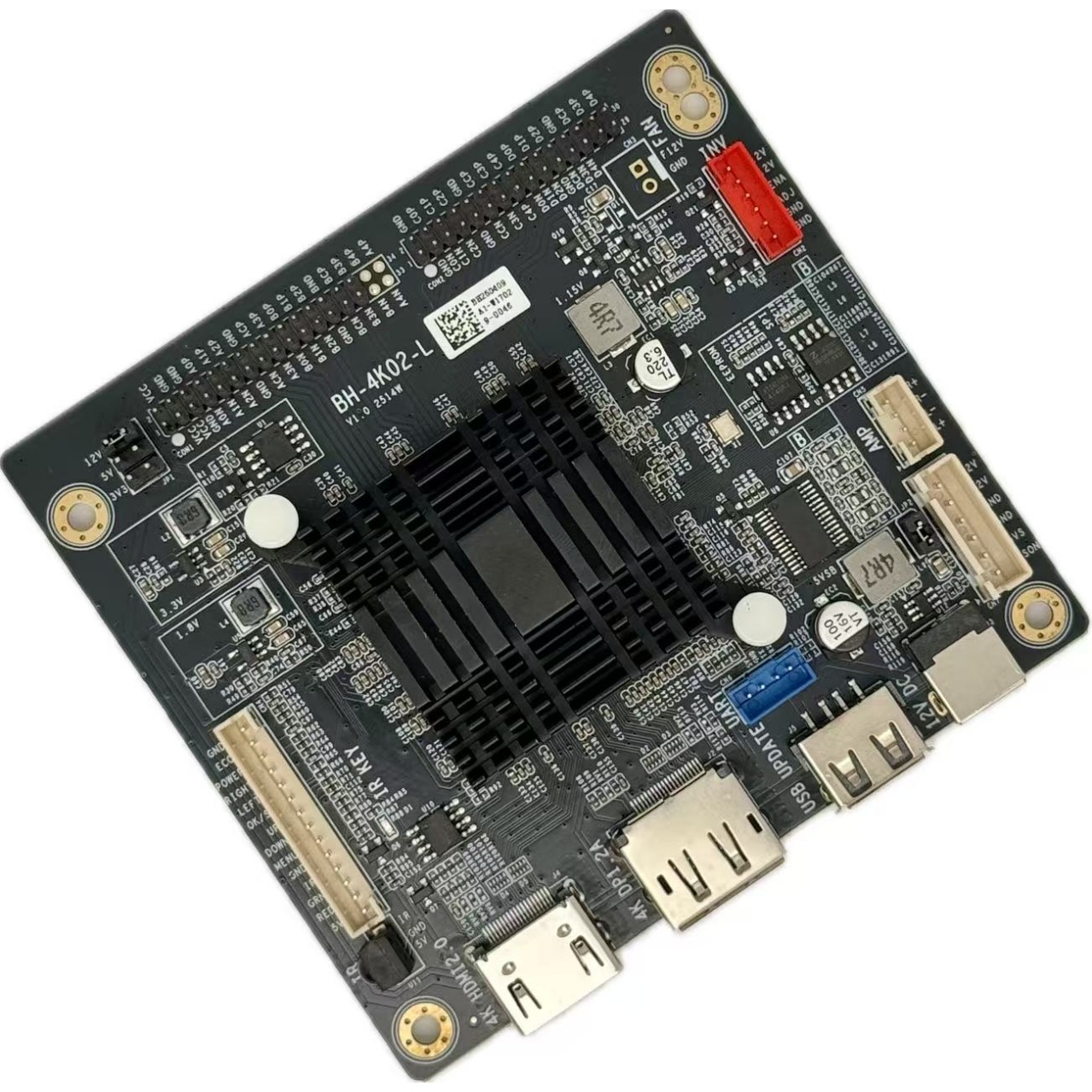

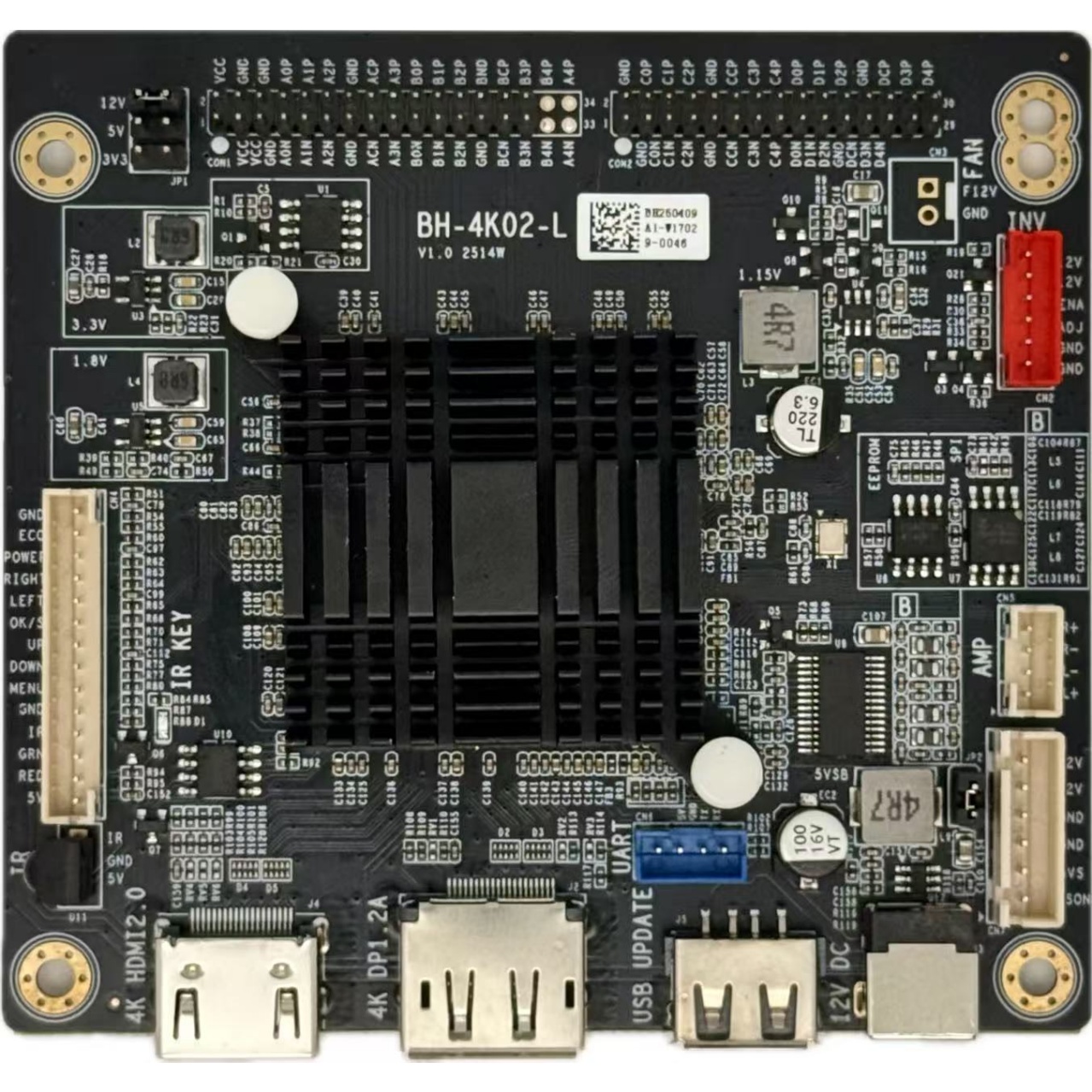

BH-4K02-L

BH-4K02-L is a display driver board that supports 2.5K or 1920x1920 square screens and supports PIP/PBP picture-in-picture.

BH-4K02-E

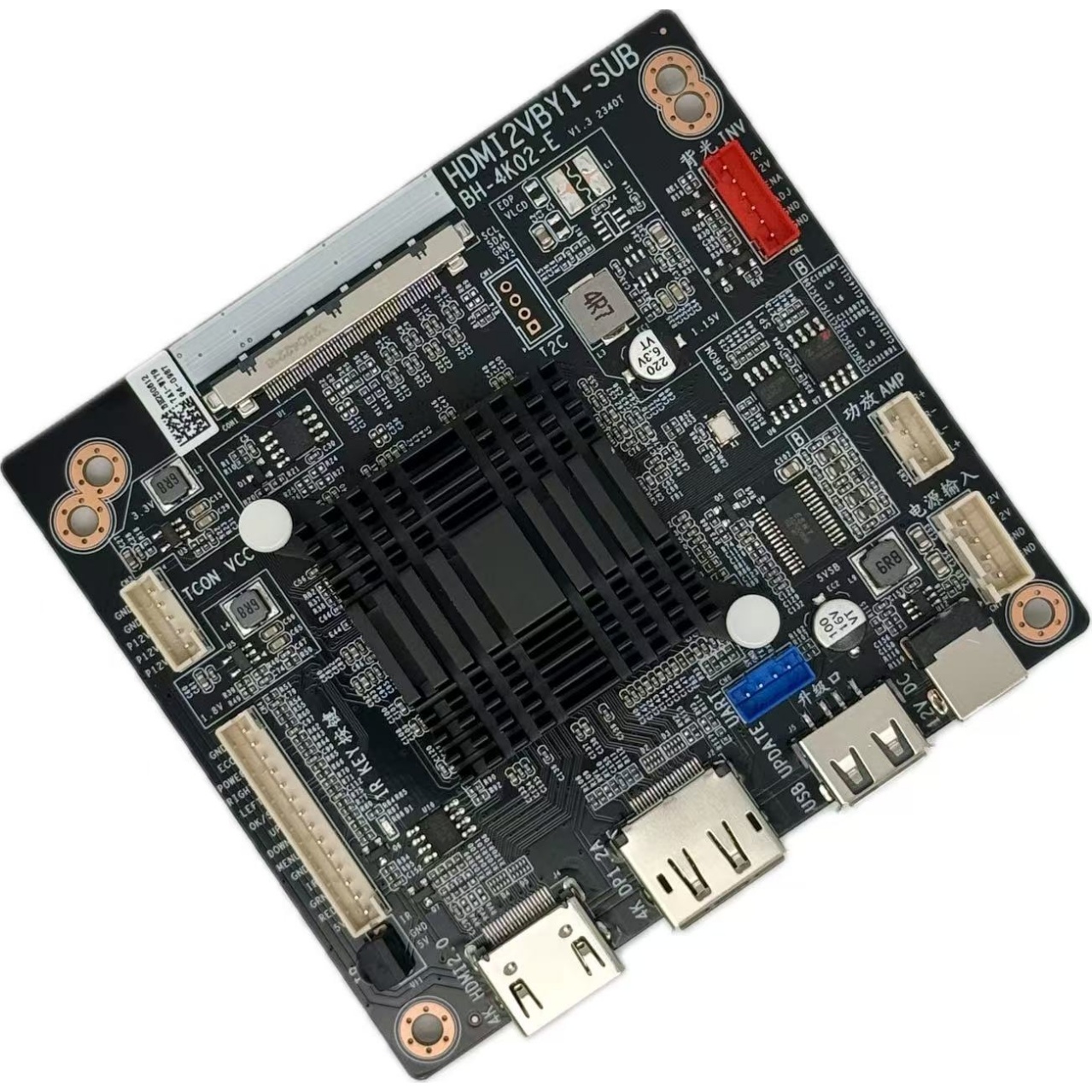

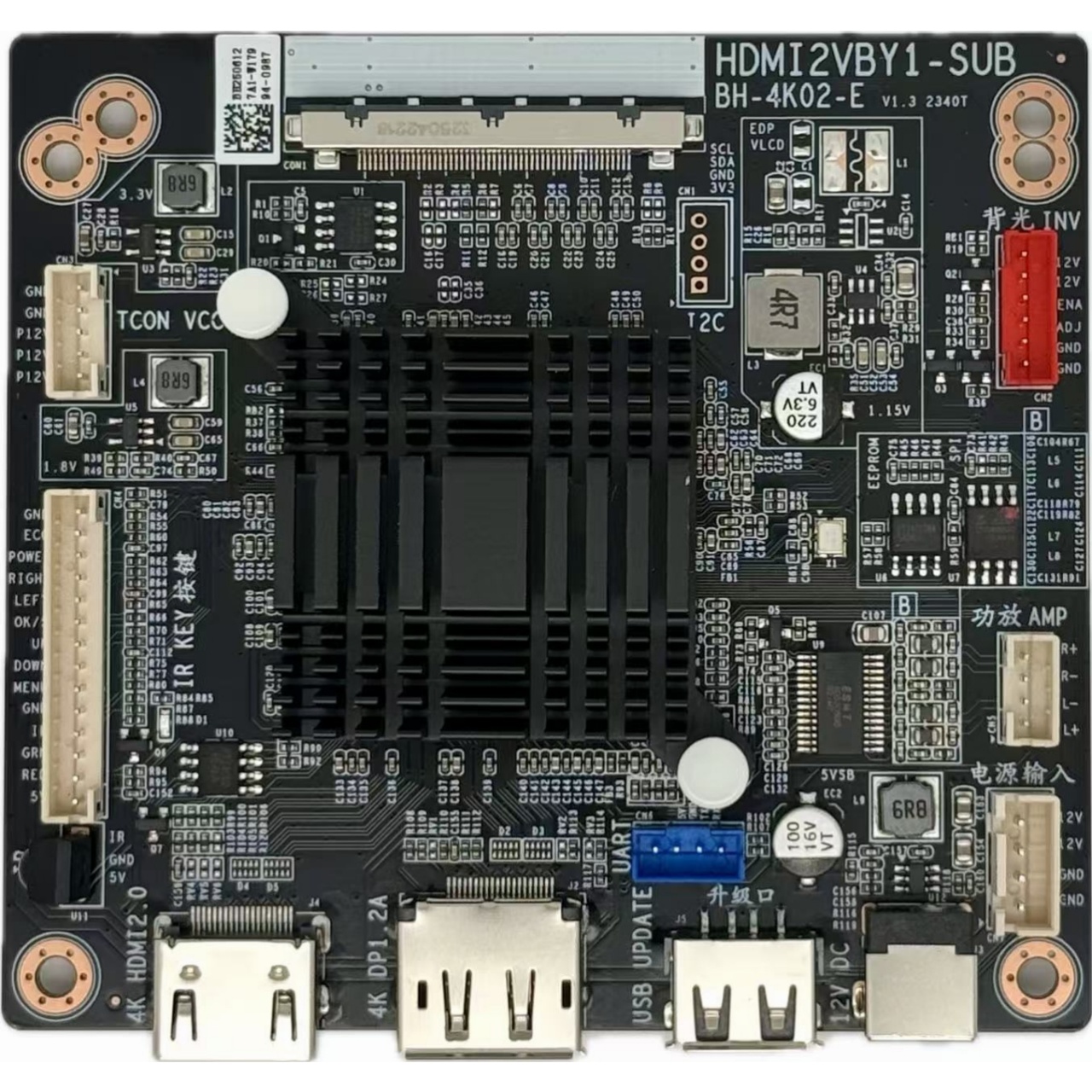

The BH-4K02-E is a multifunctional 4K display board that supports 90 -degree or 270- degree image rotation and is widely used in digital signage commercial display fields.
