| Parameter | Describe |
|---|---|
| Main chip | MSD3683QTA |
| Target Applications | 4K monitors ; educational machines ; medical monitors |
| Panel Type | 8-lane V-By-One 4K UHD@60Hz |
| Panel resolution | 3840*2160 |
| Power input | 12V Single / 5VS, 5V and 12V; single 12V power supply or 5V standby, 5V , 12V three-way power supply |
| HDMI EQ | HDMI2 external equalizer signal enhancement |
| Screen TCON power supply | 12V |
| Automatic Port | Automatic port signal recognition and automatic switching |
| Touch Menu | Support gesture touch menu, 43bytes/67bytes protocol |
| Audio amplifier | 2x8Ω10W |

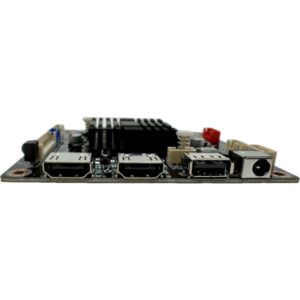

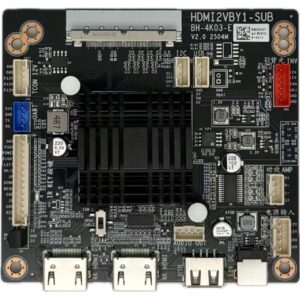

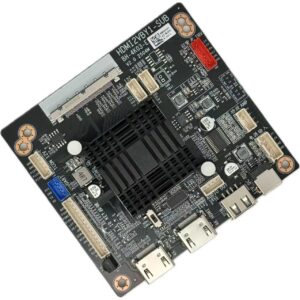

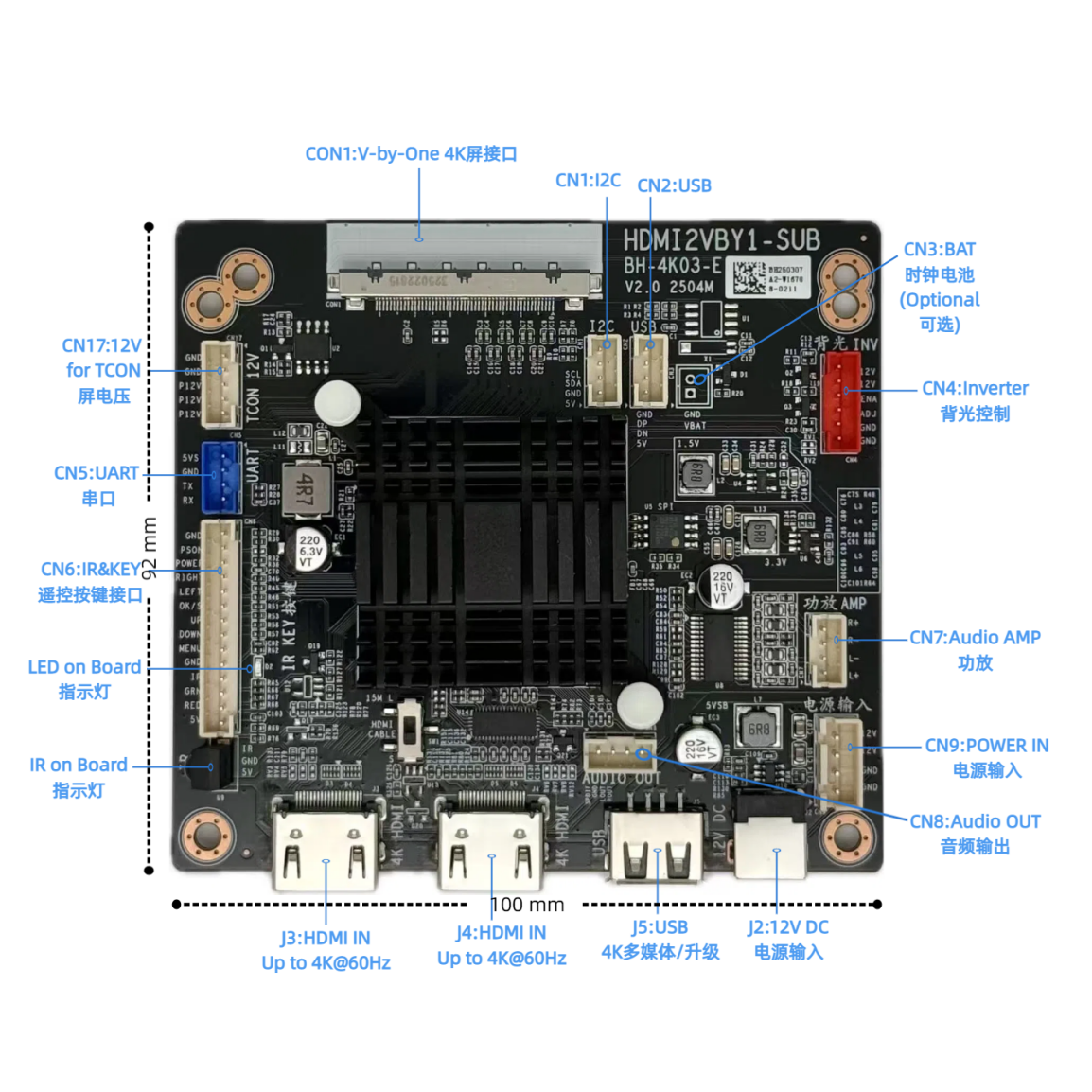

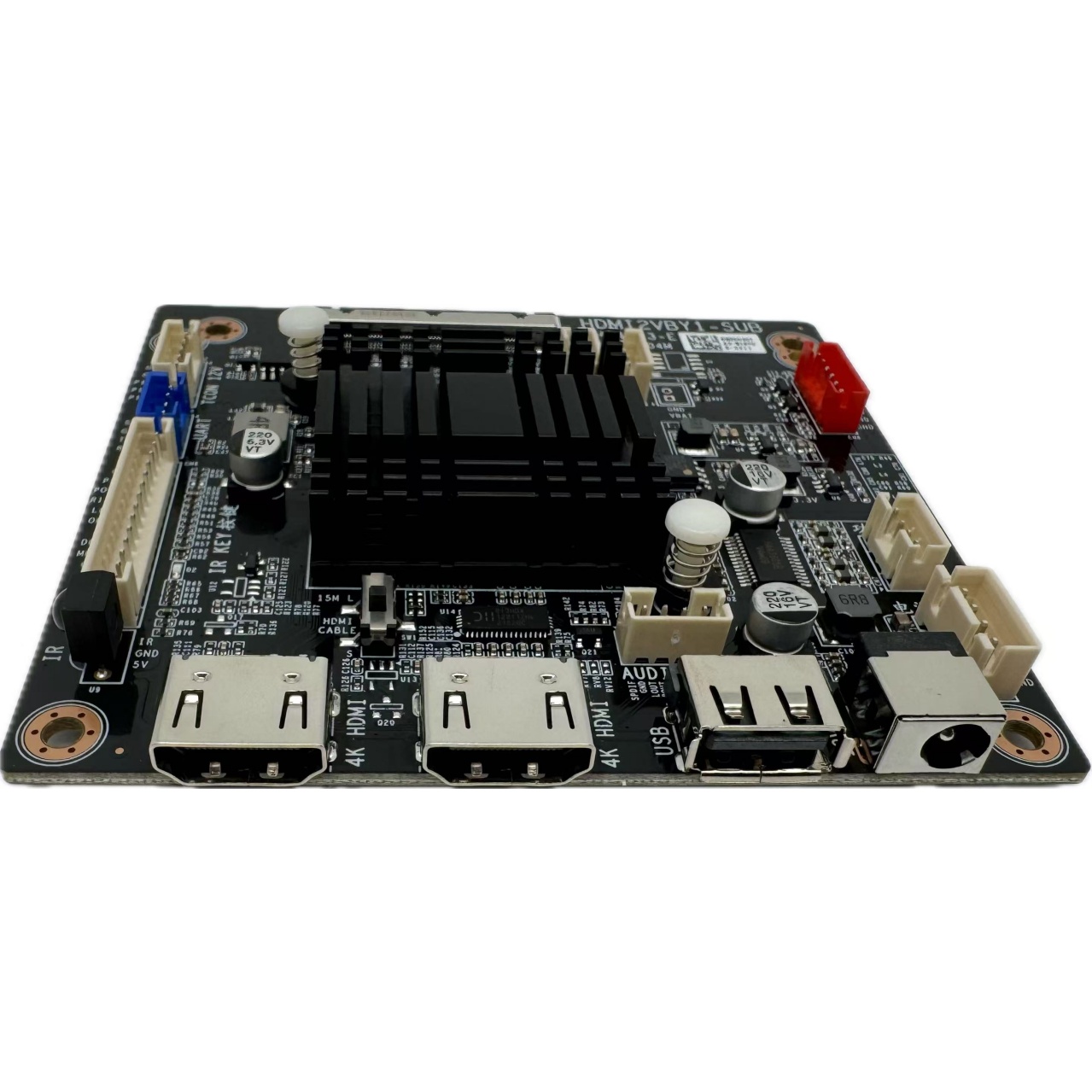

BH-4K03-E
The BH-4K03-E2.0 is a versatile 4K display board capable of directly driving large-format 8-lane V-by-one 4K 60Hz panels. It supports two HDMI 2.0 inputs (supporting 4K pixel-by-pixel display) and 4K multimedia playback, making it ideal for commercial displays such as digital signage.
