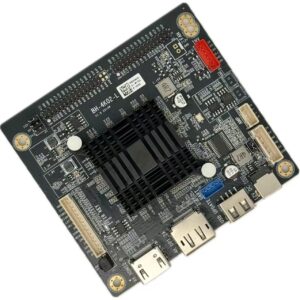

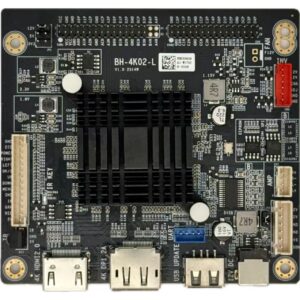

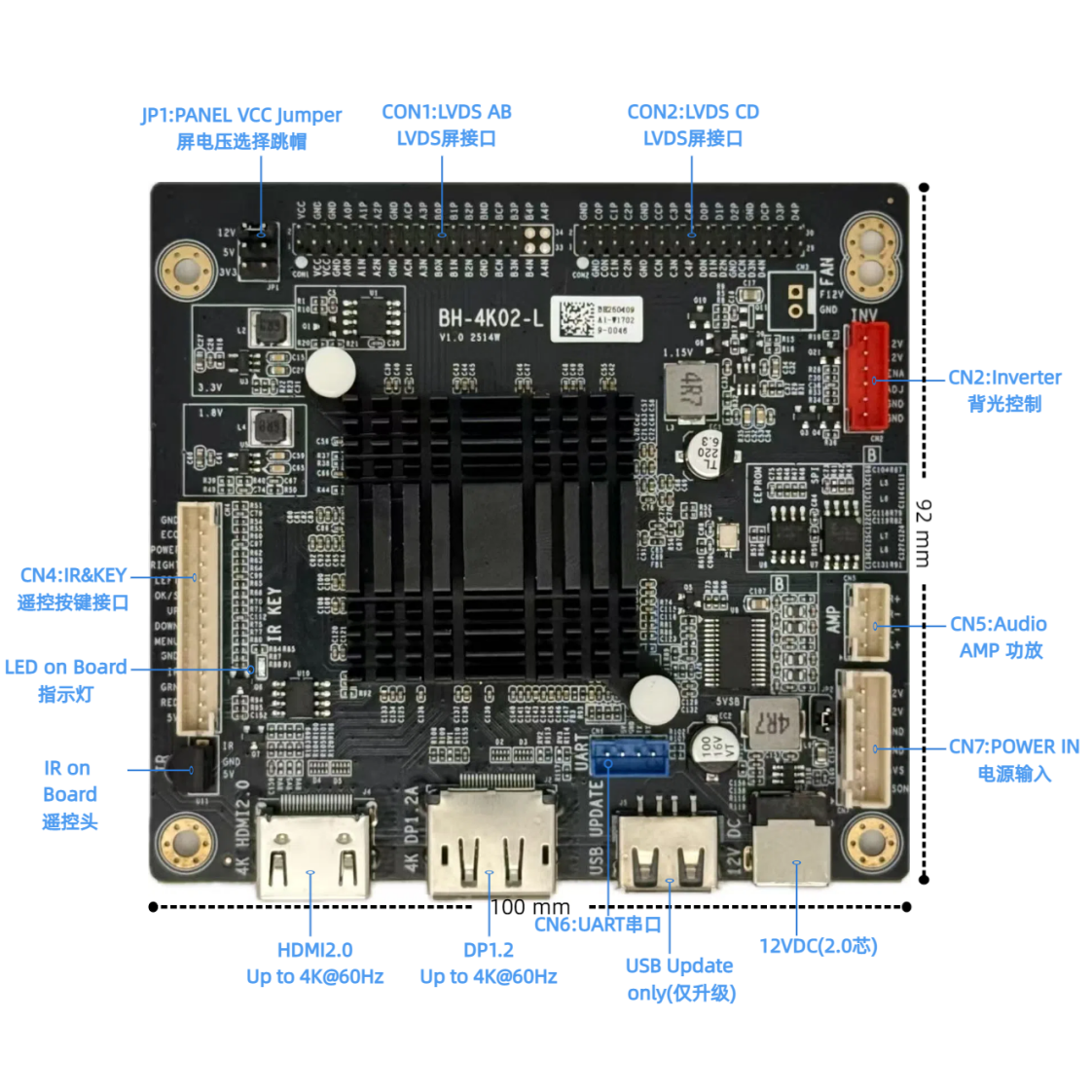

BH-4K02-L

BH-4K02-L is a display driver board that supports 2.5K or 1920×1920 square screens and supports PIP/PBP picture-in-picture.

ENQUIRY!
ParameterDescribe
Main chipMstar
Target Applications4K monitors ; educational machines ; medical monitors
Panel Type2/4 Channel LVDS
Panel resolution1920x1080, 2560x1440, 1920x1920
Picture-in-Picture ( PIP)Support 2- screen POP, PIP
Screen rotation90° , 180° , 270°
Power inputSingle 12V or multi-channel power supply
Screen TCON power supply12V
Automatic PortAutomatic port signal recognition and automatic switching
Audio amplifier2x8Ω10W
