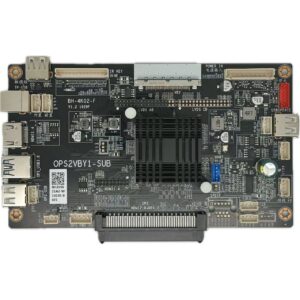

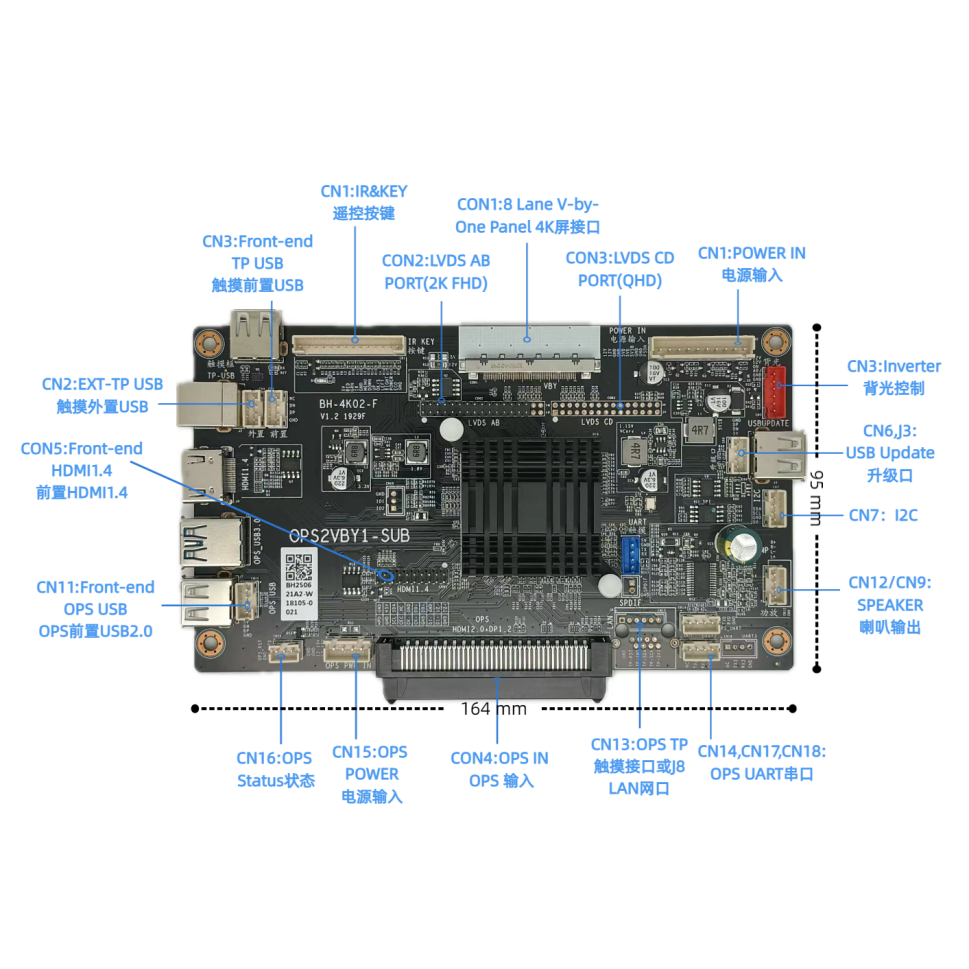

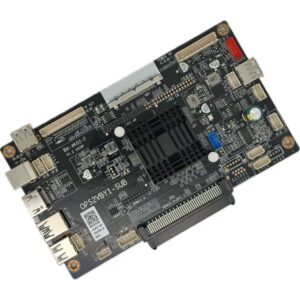

BH-4K02-F

The BH-4K02-F is a multifunctional 4K OPS display board that supports intelligent port switching, infrared touch frame intelligent switching, and one-touch power on/off for OPS computers. It is commonly used in commercial displays such as educational whiteboards, 4K monitors, and medical displays.

ENQUIRY!
ParameterDescribe
Main chipMstar
Target ApplicationsEducational whiteboard ; digital signage
Panel Type8 lane V-By-One 4K UHD@60Hz; LVDS FHD, 4 channel LVDS QHD
Panel resolution1920x1080, 2560x1440, 3840x2160
Touch MenuSupport gesture touch menu
Picture-in-Picture ( PIP)Support 2- screen POP, PIP
Power input12V, 5V, 5VSB (5V standby) or Single 12V ( large size and single 12V power supply compatible )
Screen TCON power supply12V/5V resistor selection
Audio amplifier2x8Ω10W
