| Parameter | Describe |
|---|---|
| Main chip | Mstar |
| Target Applications | 4K monitors ; educational machines ; medical monitors |
| Panel Type | 8 lane V-By-One 4K UHD@60Hz ;or 4 Lane EDP 4K@60Hz |
| Panel resolution | 3840x2160 |
| Picture-in-Picture ( PIP) | Support 2- screen POP, PIP |
| Screen rotation | 90° , 180° , 270° |
| Power input | 12V |
| Screen TCON power supply | 12V or DC-DC voltage adjustable (3.3V-10V) |
| Automatic Port | Automatic port signal recognition and automatic switching |
| Audio amplifier | 2x8Ω10W |

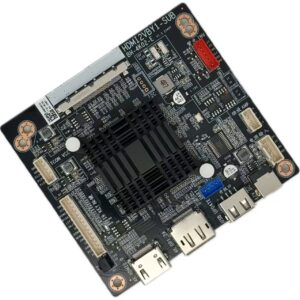

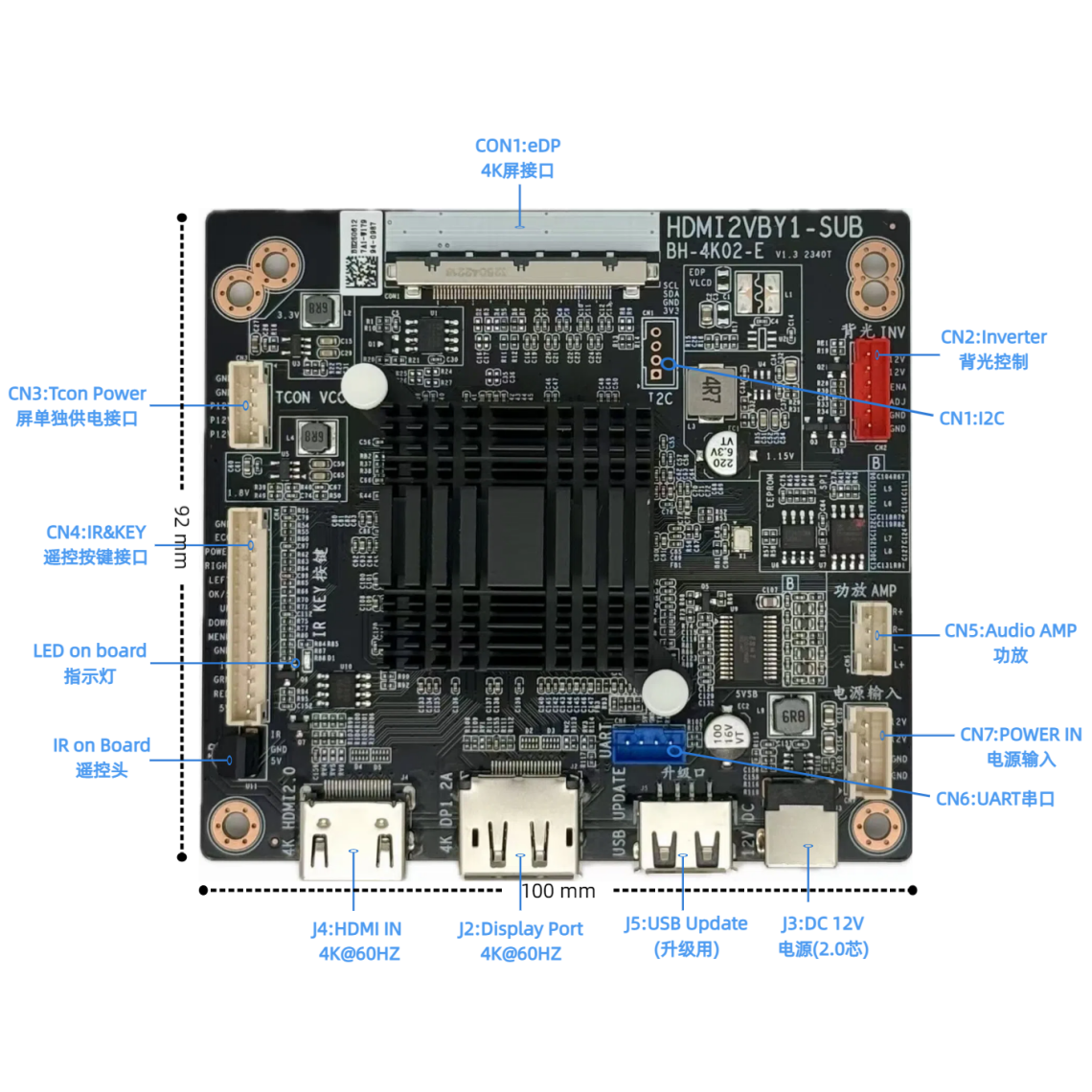

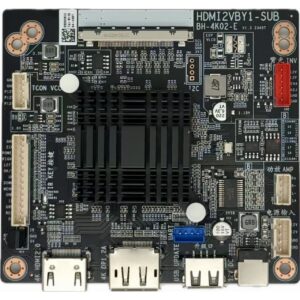

BH-4K02-E
The BH-4K02-E is a multifunctional 4K display board that supports 90 -degree or 270- degree image rotation and is widely used in digital signage commercial display fields.
