| Parameter | Describe |
|---|---|
| Main chip | Mstar |
| Target Applications | 4K monitors ; educational machines ; medical monitors |
| Panel Type | 8-lane V-By-One 4K UHD@60Hz |
| Panel resolution | 3840x2160 |
| Picture-in-Picture | Support 4 -port POP , 2- screen POP, PIP |
| Screen rotation | 90° , 180° , 270° |
| Touch Menu | Support gesture touch menu |
| Power input | 12V, 5V, 5VSB (5V standby) or Single 12V ( large size and single 12V power supply compatible ) |
| Screen TCON power supply | 12V |
| Automatic Port | Automatic port signal recognition and automatic switching |
| Audio amplifier | 2x8Ω10W |

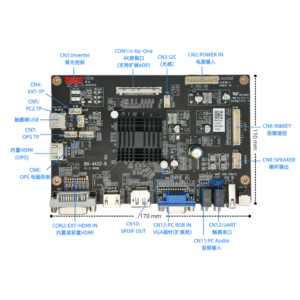

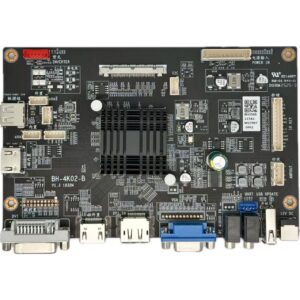

BH-4K02-B
The BH-4K02-B is a multifunctional 4K display board that supports intelligent port switching, infrared touch frame intelligent switching, and one-touch power on/off for OPS computers. It is commonly used in commercial displays such as educational whiteboards, 4K monitors, and medical displays.
