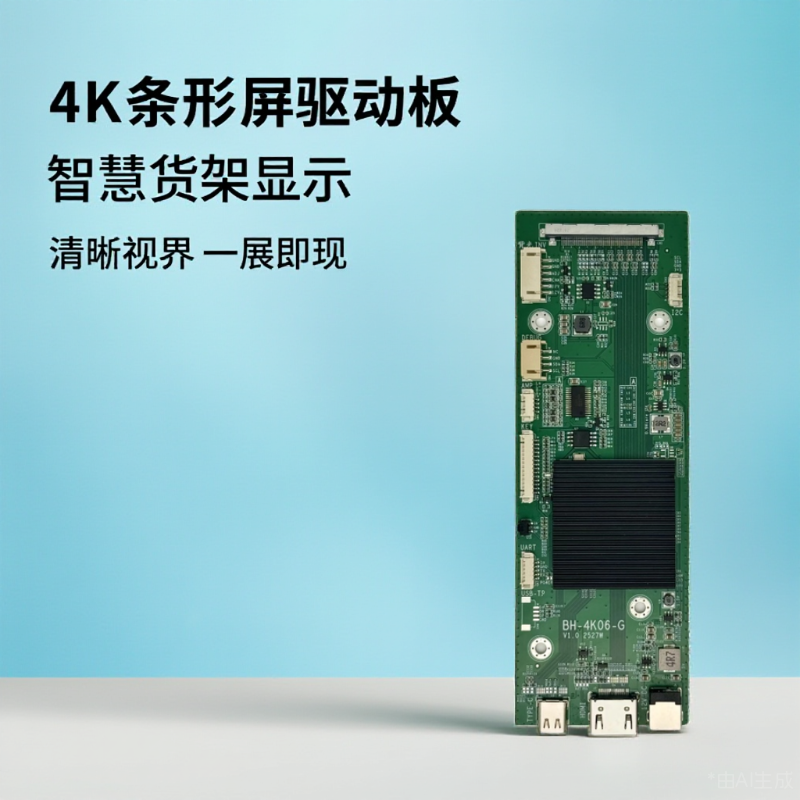

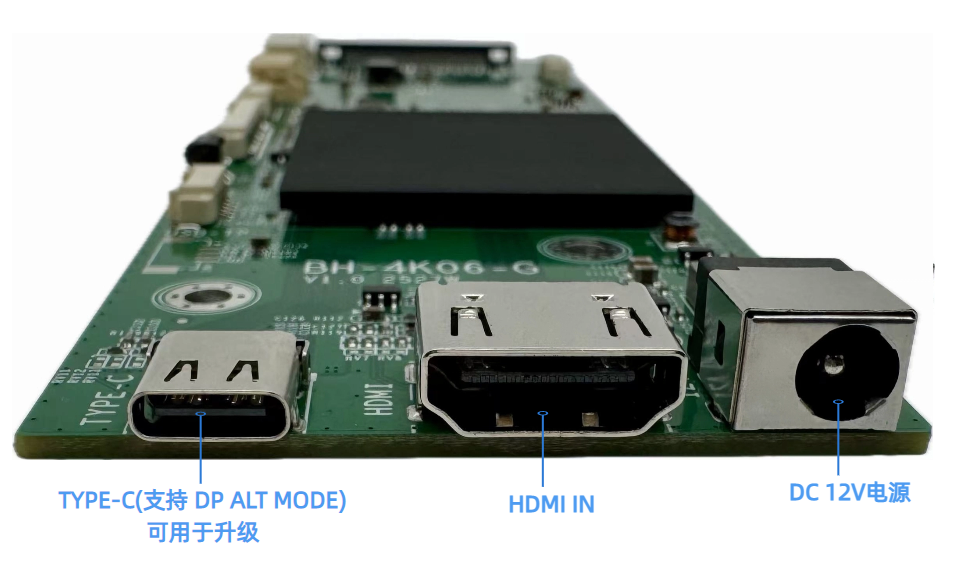

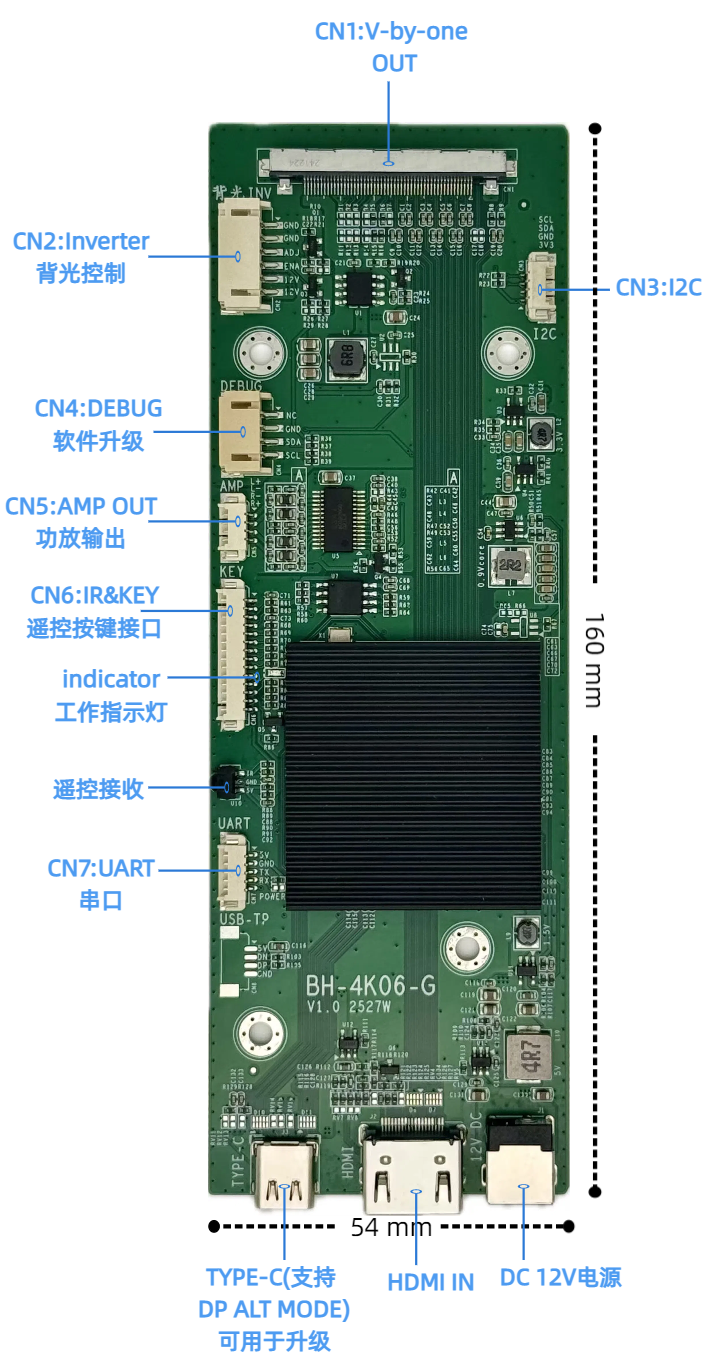

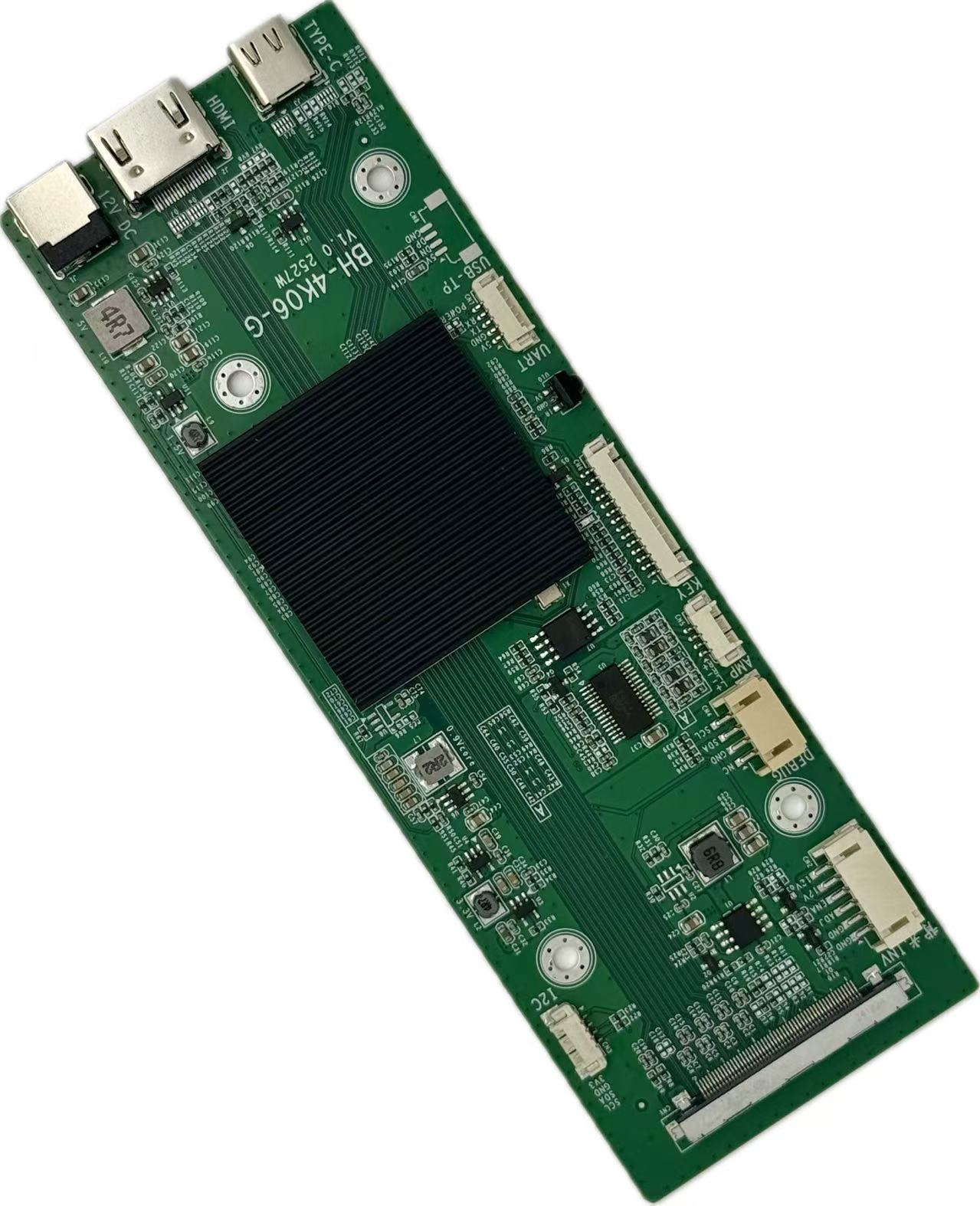

BH-4K06-G

Parameter	Describe
Main chip	HT7315
Target Applications	Commercial Display Strip Screen,Smart Shelf Display
Panel Type	V-by-one or EDP (4/8LaneHBR2)
Panel resolution	3840*2160, 3840x600, 3840x720,upto 3840x2160
Power input	Single 12V Power Supply or Multi-channel Power Supply
Screen TCON power supply	3.3V - 12V
Picture in Picture	Support POP,PIP
Local Dimming	Mini-LED Local Dimming
TYPE-C	DP ALT MODE supports 4K display; touch frame compatible
Audio amplifier	2x8Ω10W

BH-4K03-F

The BH-4K03-F is a multifunctional 4K OPS display board that supports intelligent port switching, infrared touch frame intelligent switching, and one-touch power on/off for OPS computers. It is commonly used in commercial displays such as educational whiteboards, digital signage, and electronic interactive whiteboards.

BH-4K03-E

The BH-4K03-E2.0 is a versatile 4K display board capable of directly driving large-format 8-lane V-by-one 4K 60Hz panels. It supports two HDMI 2.0 inputs (supporting 4K pixel-by-pixel display) and 4K multimedia playback, making it ideal for commercial displays such as digital signage.

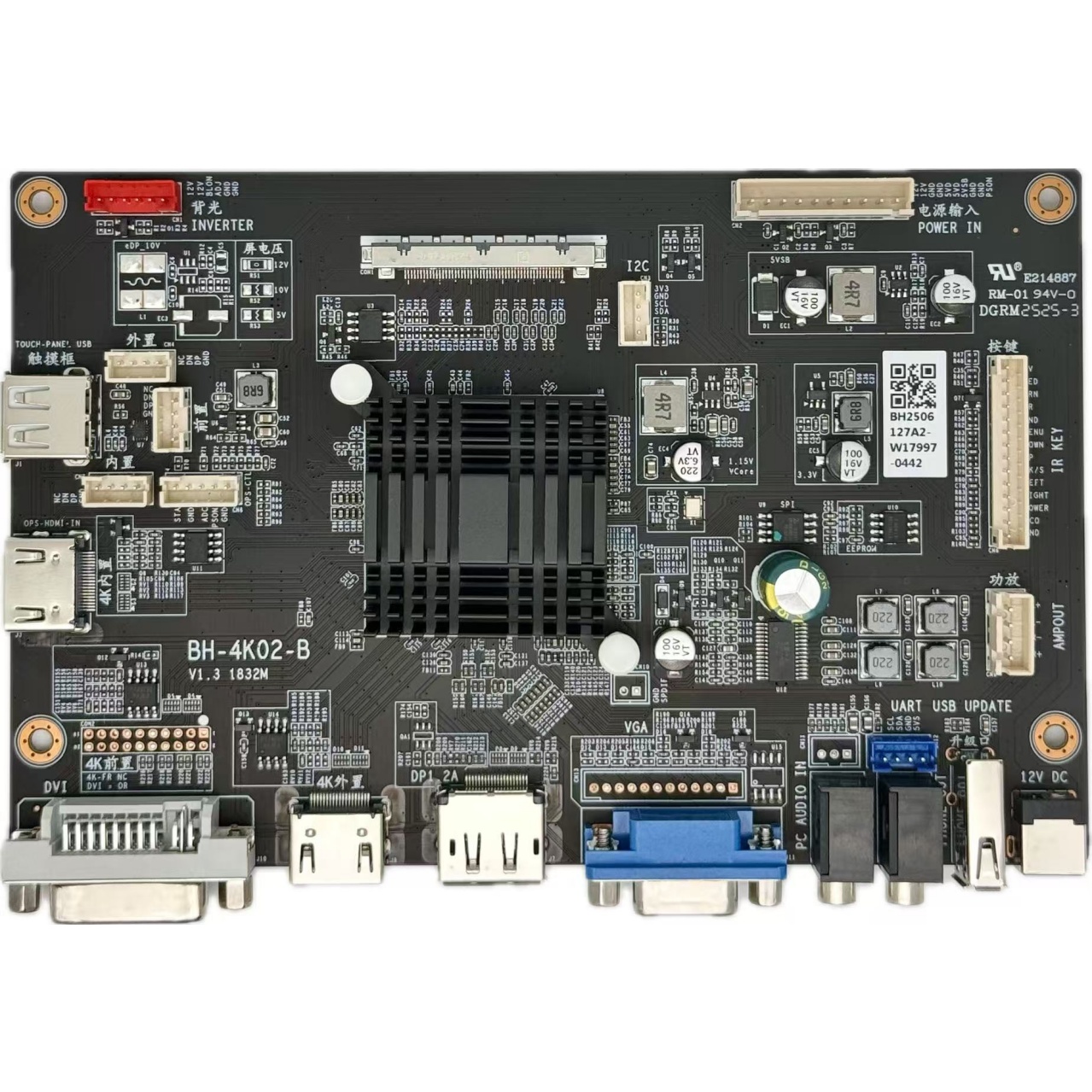

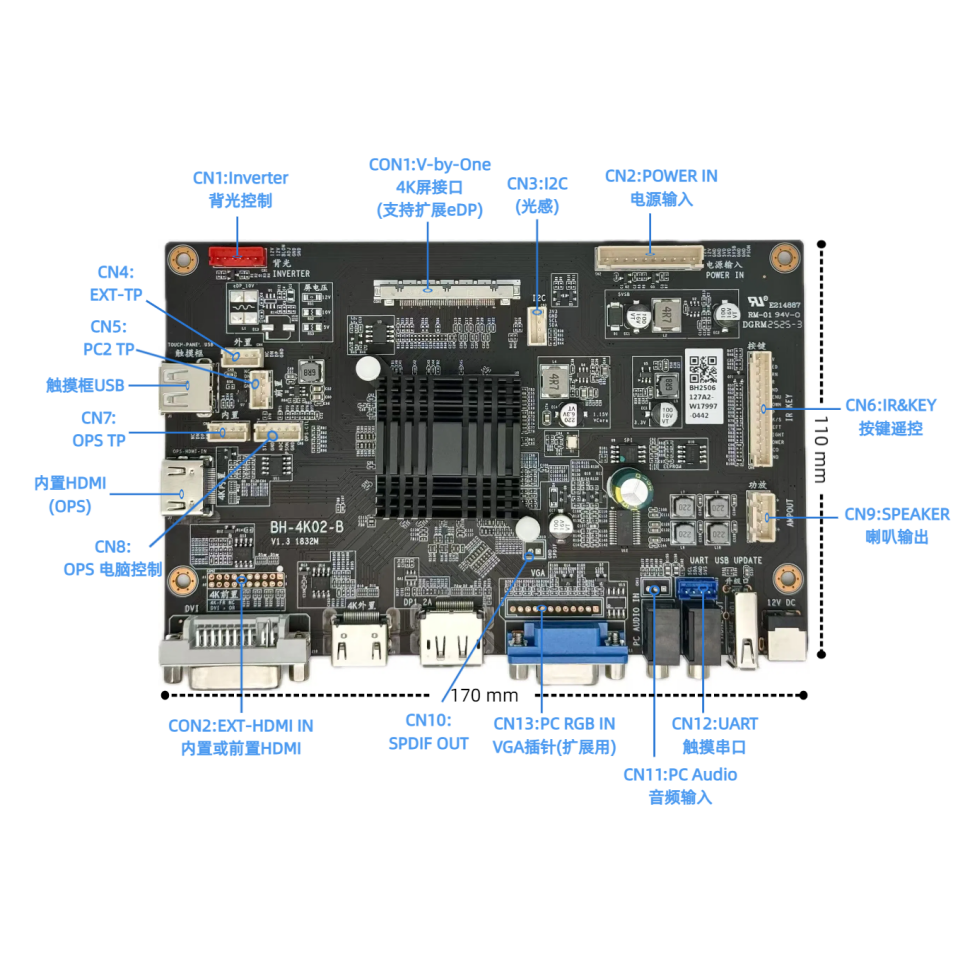

BH-4K02-B

The BH-4K02-B is a multifunctional 4K display board that supports intelligent port switching, infrared touch frame intelligent switching, and one-touch power on/off for OPS computers. It is commonly used in commercial displays such as educational whiteboards, 4K monitors, and medical displays.
