| Parameter | Describe |
|---|---|
| Main chip | HT7315 |
| Target Applications | 4K Monitor, Educational Whiteboard, Medical Monitor |
| Panel Type | V-by-one or EDP (4/8LaneHBR2) |
| Panel resolution | 3840*2160; 2560*1440@165Hz |
Power input | Single channel 12V-24V wide voltage power supply or multiple power supply |
| Screen TCON power supply | 3.3V - 12V |
| Picture in Picture | Support POP,PIP |
| Local Dimming | Mini LED Local Dimming up to 2304 zones (optional) |
| Automatic Port | Automatic Port Signal Recognition,Seamless Switching |
| Audio amplifier | 2x8Ω10W |

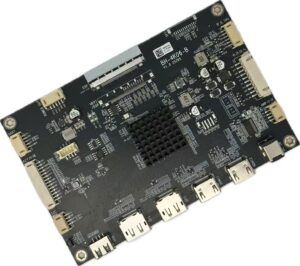

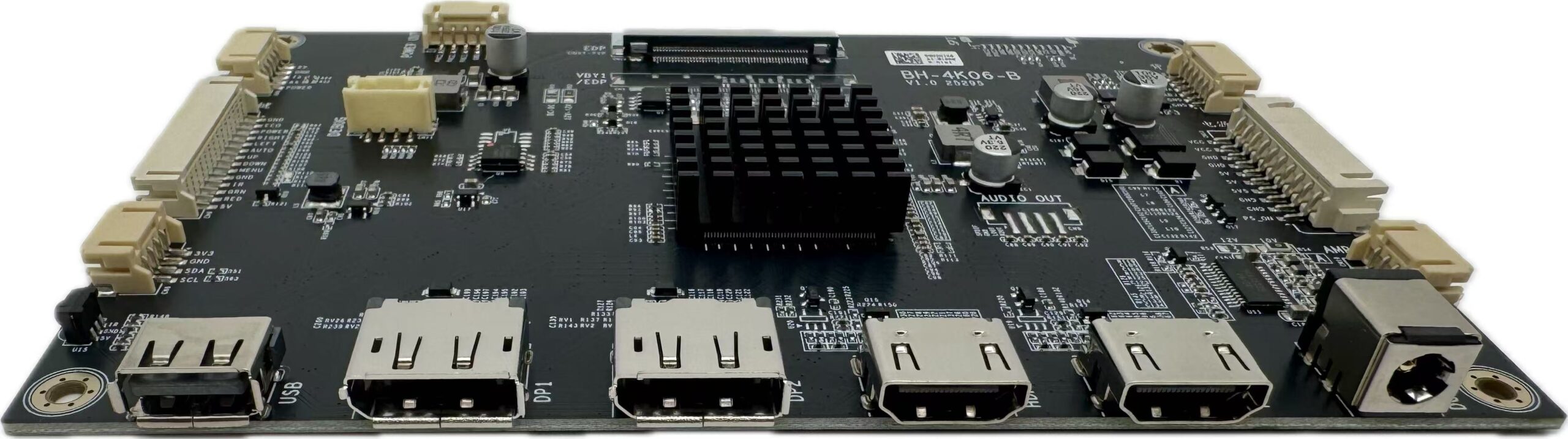

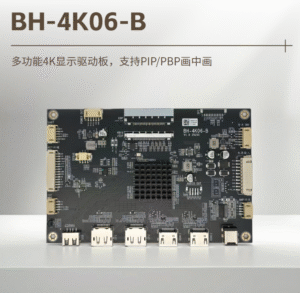

BH-4K06-B
BH-4K06-B is a display driver board that supports 2.5K@165Hz or 3K1K@165Hz panels, and is also compatible with HDR, VRR, and PIP/PBP (Picture-in-Picture/Picture-by-Picture) functions.
