Product features

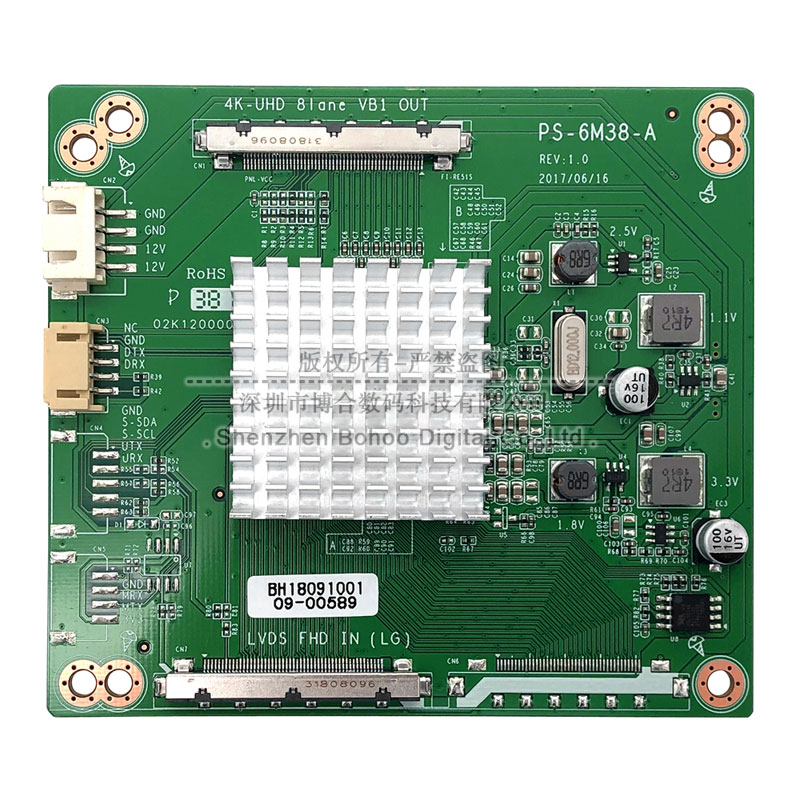

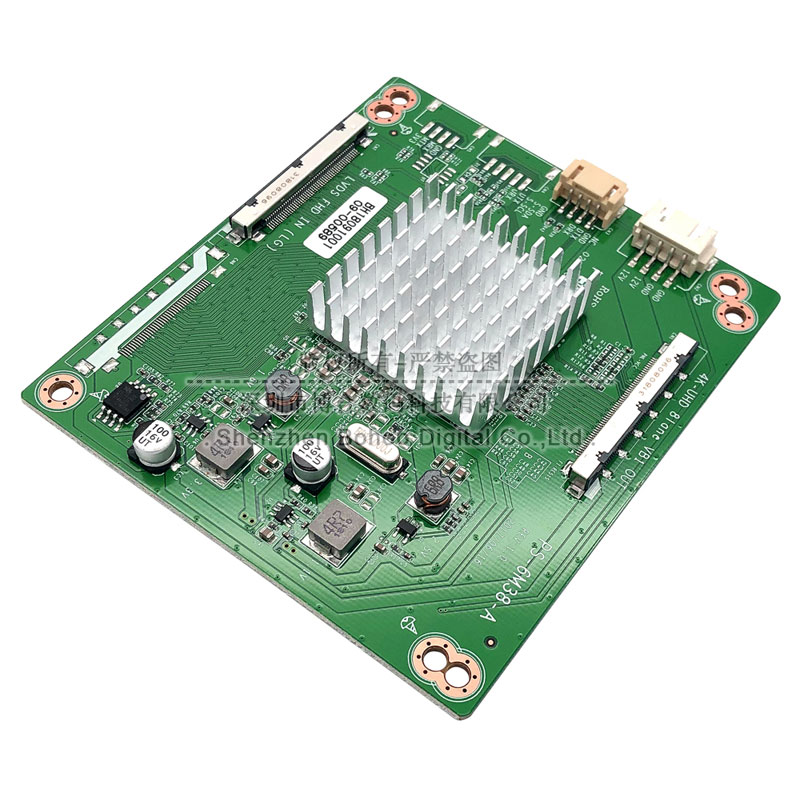

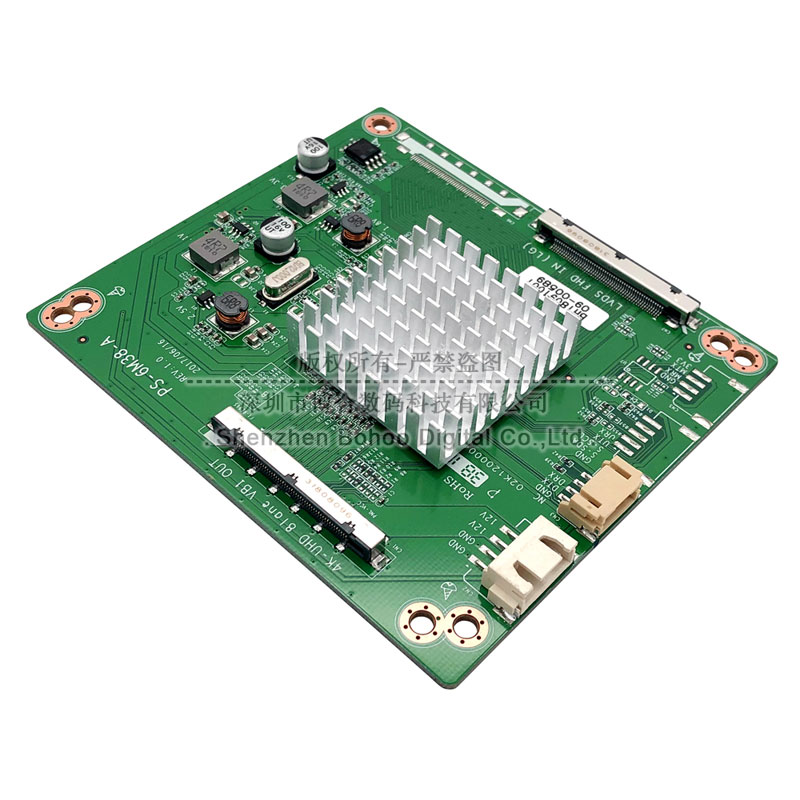

PS-6M38-A doubles the pixels (1920*1080@60Hz → 3840*2160Hz@60Hz conversion) of the video signal output (Full-HD signal by LVDS interface) from a TV control board and then supplies the 4K*2K@ 60Hz video signal to a panel provided with V-By-ONE input. It supports 0/1/2 Division V-By-One data format out.PS-6M38-A also supports 4 port LVDS UHD input (3840*2160@30Hz),and convert to 3840*2160Hz@60Hz to drive various 8 lane V-By-One UHD panel. It also can drive 2K-120Hz 4 Lane V-by-one interface OLED panel.
