产品特点

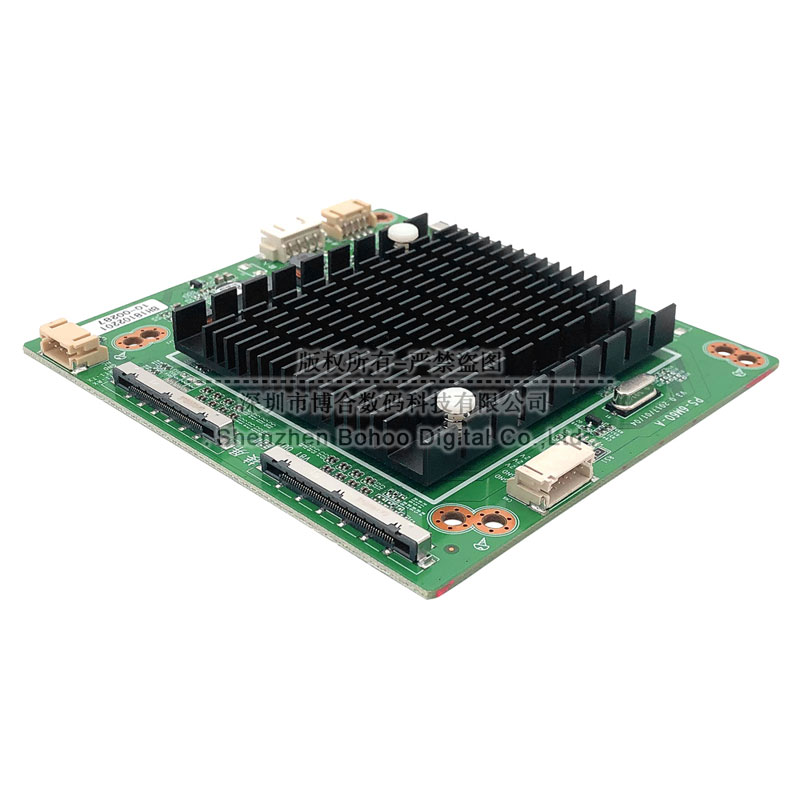

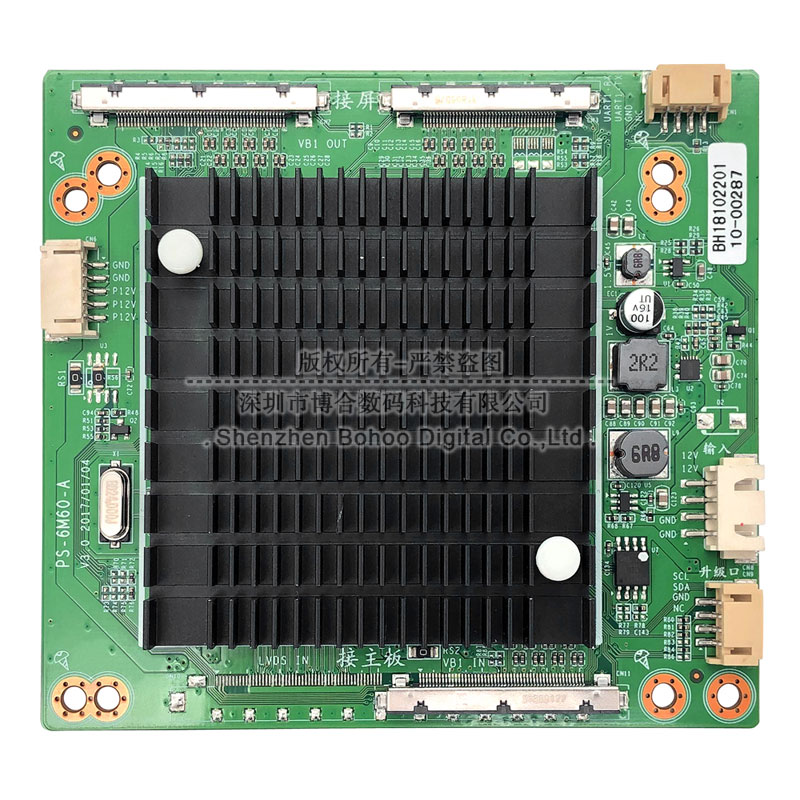

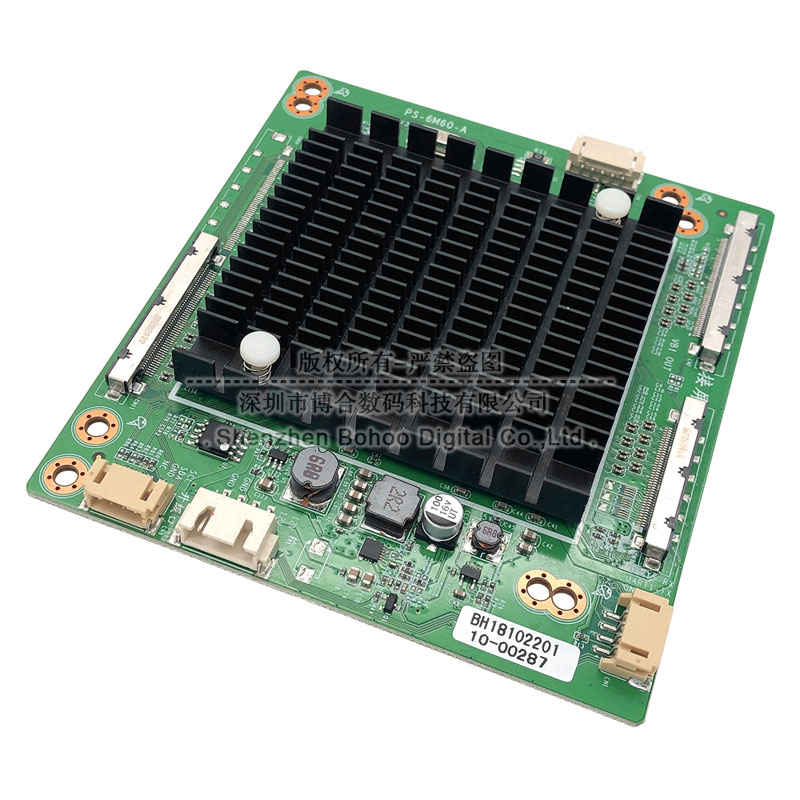

PS-6M60-A 是一款2K-4K信号转接板（1920*1080@60Hz→ 3840*2160Hz@120Hz 转换），提供标准Full-HD LVDS输入接口，经过Scaler图像放大及MEMC等图像处理，生成4K超高清V-by-One信号，并直接驱动4K@120Hz面板，支持市场上绝大部分4K panel,并支持2K/4K OLED屏.

也可支持V-By-One 4K@60Hz输入，经过插帧和MEMC图像处理，输出16lane V-By-ONE 4K@120Hz屏驱动信号。仅用作2K-4K@60Hz转换时，亦可获得更优的显示效果。同时可以用作V-by-One信号的延长功能。

PS-6M60-A doubles the pixels (1920*1080@60Hz → 3840*2160@120Hz conversion) of the video signal output (Full-HD signal by LVDS interface) from a TV control board and then supplies the 4K*2K@ 120Hz video signal to a panel provided with V-By-ONE input. It supports the most of 4K panel. It also can drive 2K/4K OLED panel. PS-6M60-A also supports V-by-one signal input, and then doubles the frames to V-by-one 120Hz. It also can just double the pixels(1920*1080@60Hz → 3840*2160@60Hz conversion) for better performance.
